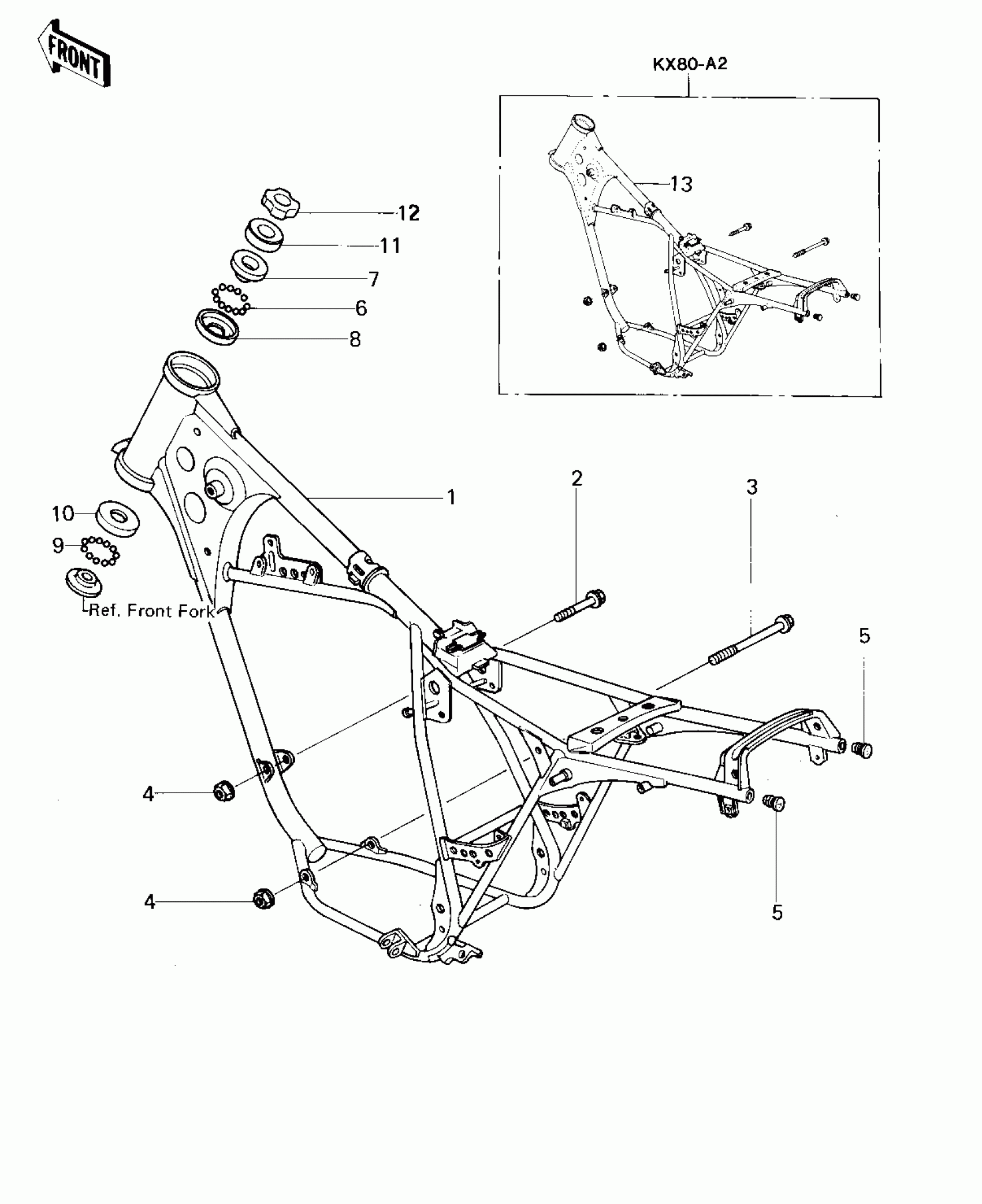

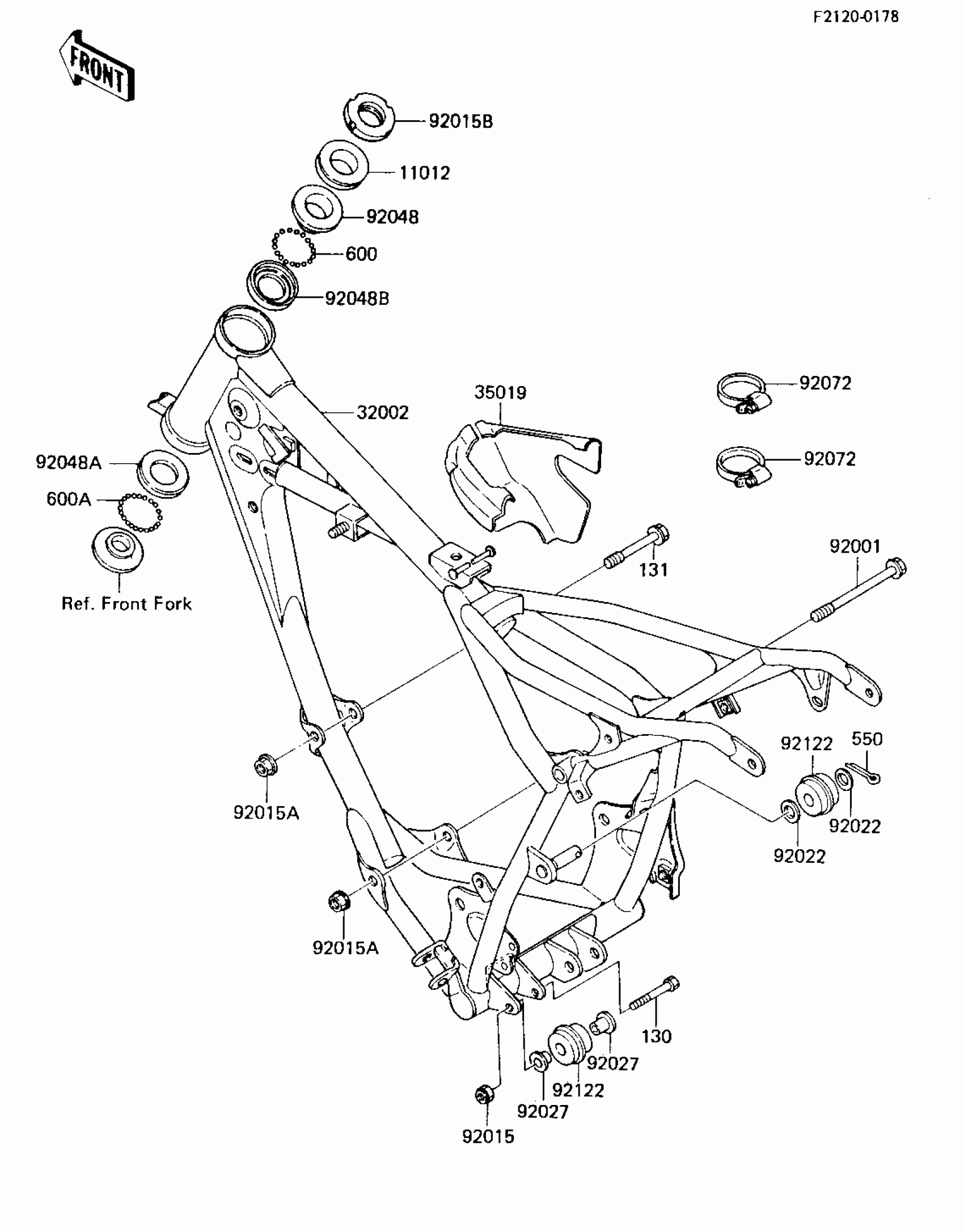

Kawasaki KX80 FRAME/FRAME FITTINGS Diagram

Description

Price

11012

CAP,STEERING STEM

46098-018

$6.51

32002

FRAME-COMP

32002-1659

Unavailable

35019

FLAP,AIR FILTER CASE

35019-1104

$14.35

92001

BOLT,8X105

92001-1367

$8.03

92015

NUT,FLANGED,6MM

92015-1078

Unavailable

92015A

NUT,8MM

92015-1143

$0.65

92015B

NUT,STEERING LOCK,25MM

92015-1222

$33.90

92022

WASHER,10.5X20X1

92022-239

$3.92

92027

COLLAR,6.5X10X14.1

92027-1183

$5.52

92048

RACE,STEERING STEM BEARING

92047-014

$12.72

92048A

RACE,STEERING STEM BEARING,LWR

92048-005

$12.37

92048B

RACE,STEERING STEM BEARING

92048-009

$14.10

92072

BAND,RESERVOIR TANK

92072-1091

$22.07

92122

ROLLER,CHAIN GUIDE

92122-1030

$34.49

130

BOLT-FLANGED,6X40

130G0640

$1.17

131

BOLT-FLANGED,8X60

131G0860

$1.63

550

PIN-COTTER,2.5X15

550D2515

$0.47

600

BALL-STEEL,3/16

600A0600

$1.07

600A

BALL-STEEL,1/4

600A0800

$0.62
