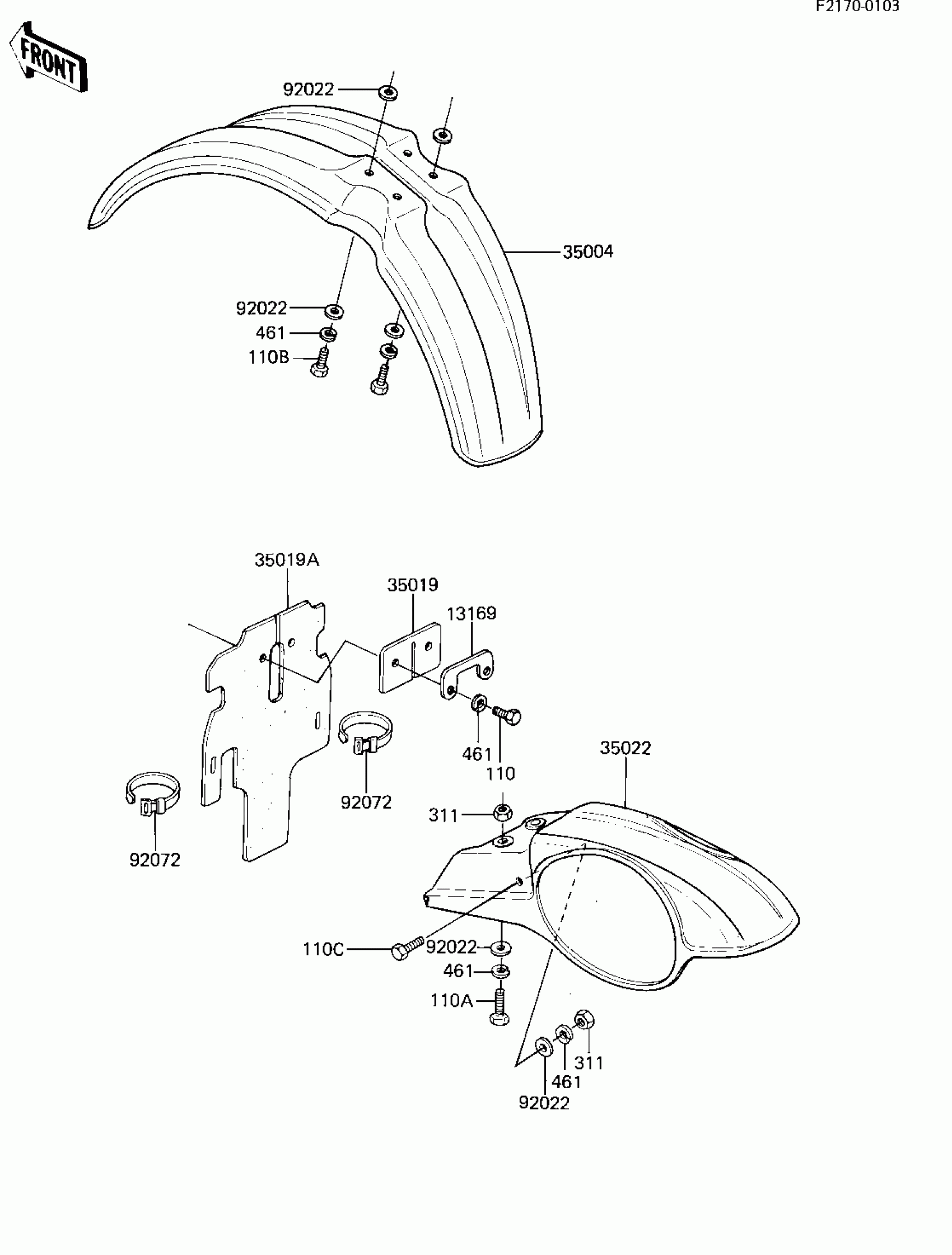

Kawasaki KX80 FENDERS ('82 KX80-C2) Diagram

Description

Price

13169

PLATE,REAR FLAP

13169-1407

Unavailable

35004

FENDER-FR,L.GREEN

35004-1055-6W

$116.48

35019

FLAP,REAR FENDER

35019-1019

Unavailable

35019A

FLAP,FENDER

35019-1024

$25.27

35022

FENDER-RR,L.GREEN

35022-1089-AE

$125.40

92022

WASHER,6.5X20X1.6

92022-125

$1.40

92072

BAND,L=123

92072-030

$5.00

110

BOLT-UPSET 6X14

112B0614

Unavailable

110A

BOLT-UPSET,6X16

112G0616

$1.10

110B

BOLT-UPSET

112G0618

$1.01

110C

BOLT-UPSET,6X20

112G0620

$2.12

311

NUT 6MM

311B0600

$0.93

461

WASHER SPRING 6MM

461F0600

$0.69
