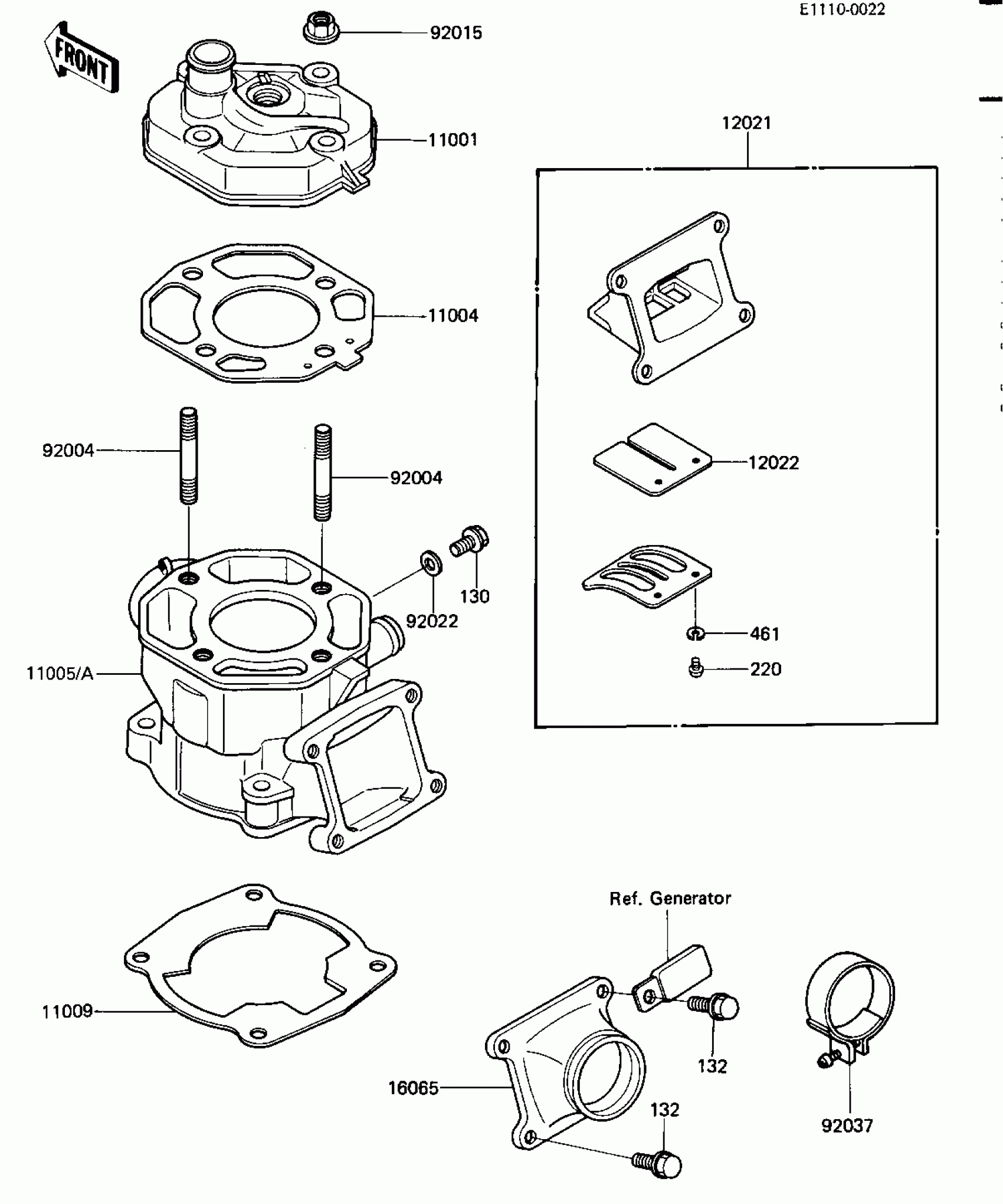

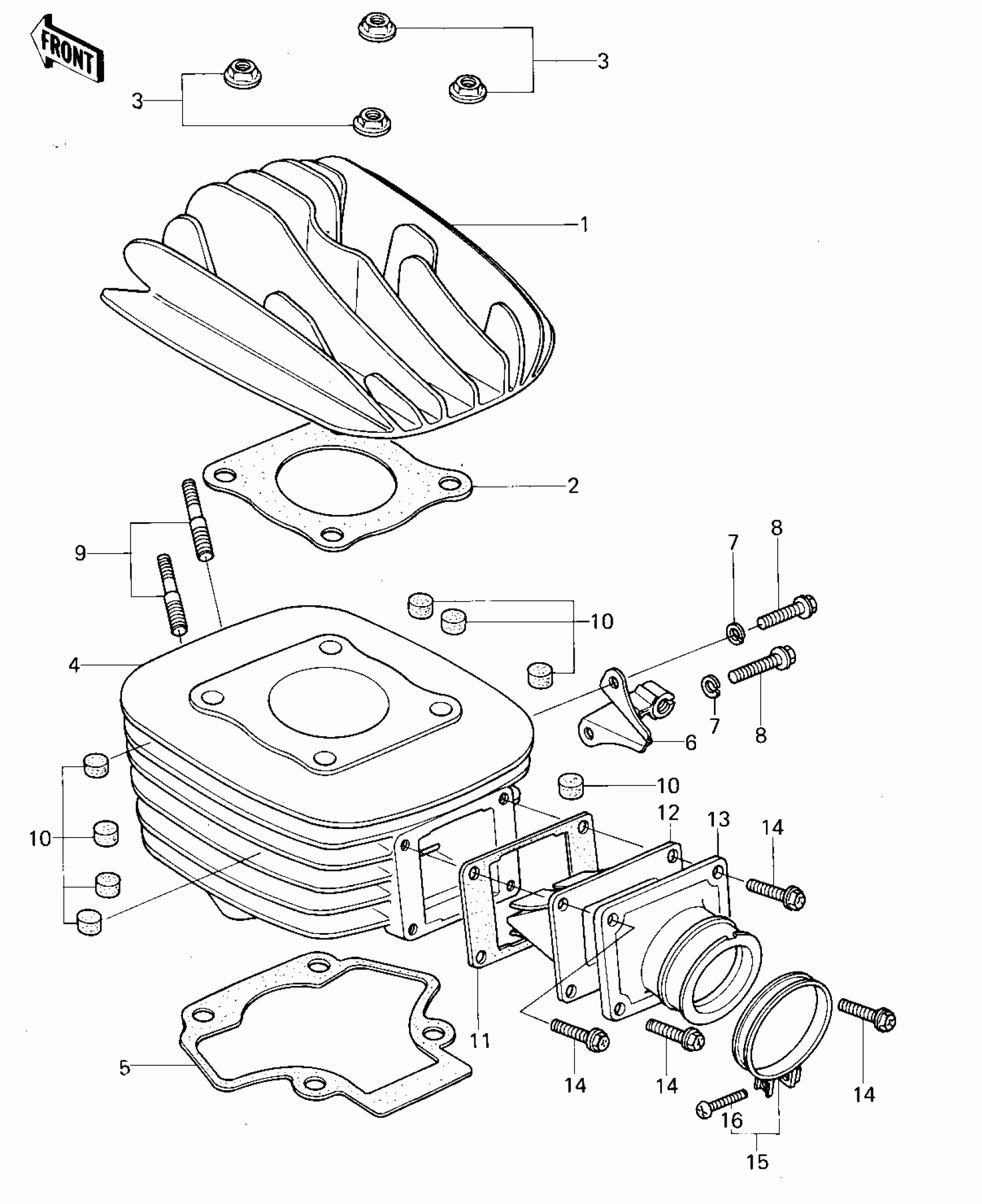

Kawasaki KX80 CYLINDER HEAD/CYLINDER/REED VALVE Diagram
#
Description
Price
1
HEAD,CYLINDER,H.BLACK
11001-1012
Unavailable
1
HEAD,CYLINDER,F.BLACK
11001-1020
Unavailable
2
GASKET,HEAD,CYLINDER
11004-1013
Unavailable
3
NUT,FLANGED,8MM
92015-1014
Unavailable
4
CYLINDER,F.BLACK
11005-1032
Unavailable
4
CYLINDER,FLAT BLACK
11005-1053
Unavailable
5
GASKET,CYLINDER BASE
11009-1153
Unavailable
5
GASKET,CYLINDER BASE
11009-1153
Unavailable
6
HOLDER,CABLE,CLUTCH
14044-1004
Unavailable
7
WASHER SPRING 6MM
461F0600
Unavailable
8
BOLT,FLANGED,6X22
92001-1352
Unavailable
9
STUD
92004-029
Unavailable
10
DAMPER,CYLINDER HEAD/CYLINDER
92075-109
Unavailable
11
GASKET,REED VALVE
11009-1109
Unavailable
12
VALVE ASSY,REED
12021-1005
Unavailable
13
HOLDER,VALVE,REED
12023-1005
Unavailable
13
HOLDER,VALVE REED
12023-1007
Unavailable
14
BOLT,FLANGED,6X22
92001-1352
Unavailable
14
BOLT-FLANGED,6X20
130G0620
Unavailable
15
CLAMP,HOLDER
92037-077
Unavailable
15
CLAMP
92037-1172
Unavailable
16
SCREW,PAN HEAD
92011-037
Unavailable
16
SCREW PAN HEAD 4X25
220B0425
Unavailable
