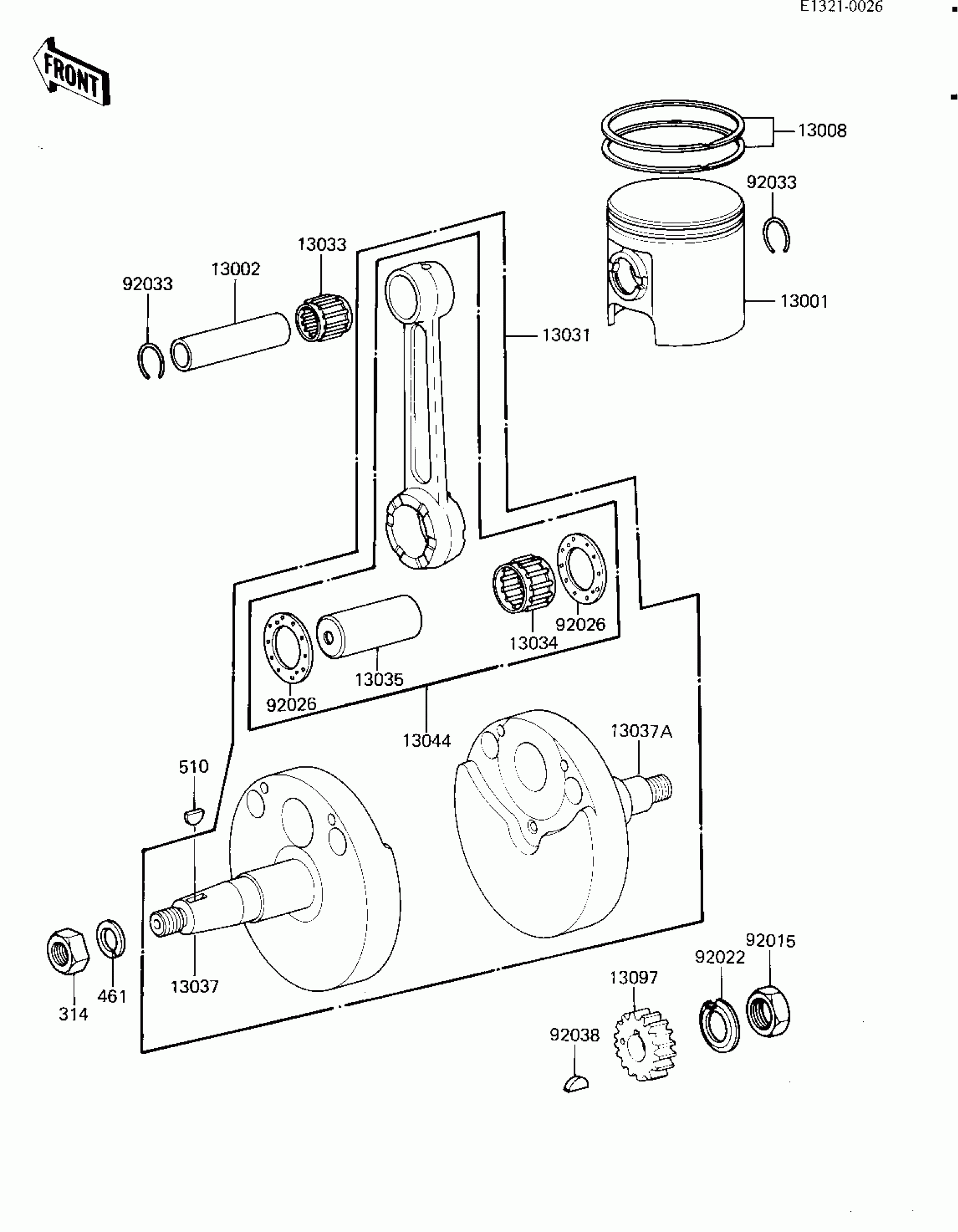

Kawasaki KX80 CRANKSHAFT/PISTON ('82 KX80-C2) Diagram

Description

Price

13001

PISTON-ENGINE

13001-1082

Unavailable

13002

PIN-PISTON

13002-1009

$29.17

13008

RING SET,PISTON,STD

13008-5011

$92.04

13031

CRANKSHAFT-COMP

13031-1062

Unavailable

13033

BEARING-NEEDLE,14R1818P

13033-1003

$36.83

13034

BEARING-BIG END

13034-1032

Unavailable

13035

PIN-CRANK

13035-1075

$32.86

13037

CRANKSHAFT,LH

13037-1119

Unavailable

13037A

CRANKSHAFT,RH

13037-1120

Unavailable

13044

SET-CONNECTING ROD

13044-5031

Unavailable

13097

GEAR,PRIMARY,24T

13097-1042

Unavailable

92015

NUT,12MM

92015-006

$5.59

92022

WASHER,CLAW,12.5X25X0.8

92024-003

$4.78

92026

SPACER,22.5X37X1.0

92026-011

$9.89

92033

RING-SNAP,PISTON PIN

92036-003

$0.65

92038

KEY,WOODRUFF

92038-003

$5.37

314

NUT,10M/M

314G1000

$0.90

461

WASHER SPRING 10MM

461F1000

$0.67

510

KEY-WOODRUFF

510A3200

$2.70
