Description

Price

1

PISTON-ENGINE

13001-1082

Unavailable

2

PIN-PISTON

13002-1009

$29.17

3

RING SET,PISTON,STD

13008-5011

$92.04

4

RING-SNAP,PISTON PIN

92036-003

$0.65

5

CRANKSHAFT ASSY

13031-1070

Unavailable

6

SET-CONNECTING ROD

13044-5031

Unavailable

7

BEARING-BIG END

13034-1032

Unavailable

8

PIN-CRANK

13035-1075

$32.86

9

L.H CRANKSHAFT

13037-1095

Unavailable

10

R.H CRANKSHAFT

13037-1096

Unavailable

11

SPACER,22.5X37X1.0

92026-011

$9.89

12

BEARING-NEEDLE,KTV141817

13033-030

$27.43

13

GEAR,PRIMARY,24T

13097-1042

Unavailable

14

NUT,10M/M

314G1000

$0.90

15

WASHER SPRING 10MM

461F1000

$0.67

16

KEY-WOODRUFF

510A3200

$2.70

17

NUT,12MM

92015-006

$5.59

18

WASHER,CLAW,12.5X25X0.8

92024-003

$4.78

19

KEY,WOODRUFF

92038-003

$5.37

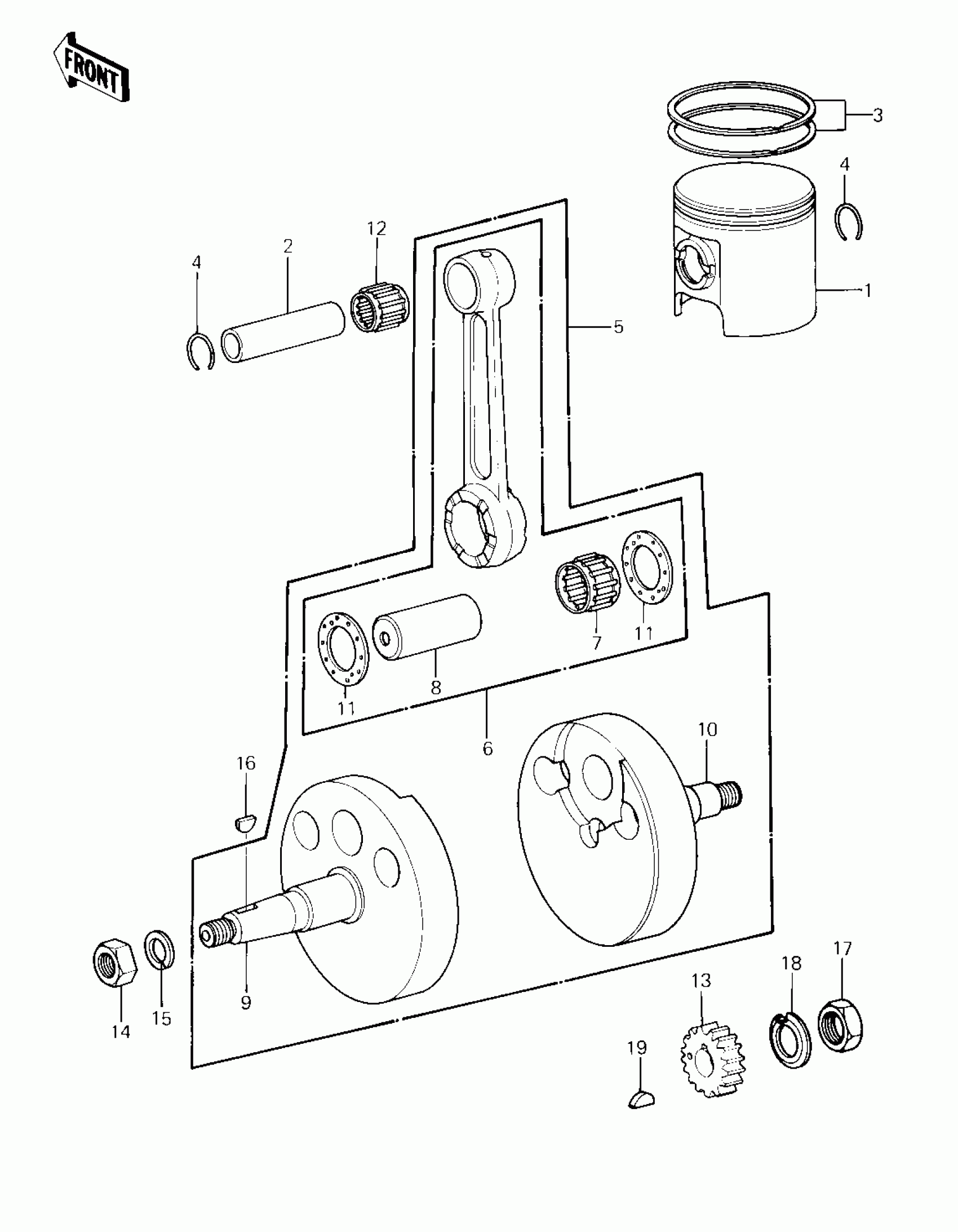

Kawasaki KX80 CRANKSHAFT/PISTON ('81 KX80-C1) Diagram

PISTON-ENGINE

PIN-PISTON

RING SET,PISTON,STD

RING-SNAP,PISTON PIN

CRANKSHAFT ASSY

SET-CONNECTING ROD

BEARING-BIG END

PIN-CRANK

L.H CRANKSHAFT

R.H CRANKSHAFT

SPACER,22.5X37X1.0

BEARING-NEEDLE,KTV141817

GEAR,PRIMARY,24T

NUT,10M/M

WASHER SPRING 10MM

KEY-WOODRUFF

NUT,12MM

WASHER,CLAW,12.5X25X0.8

KEY,WOODRUFF
