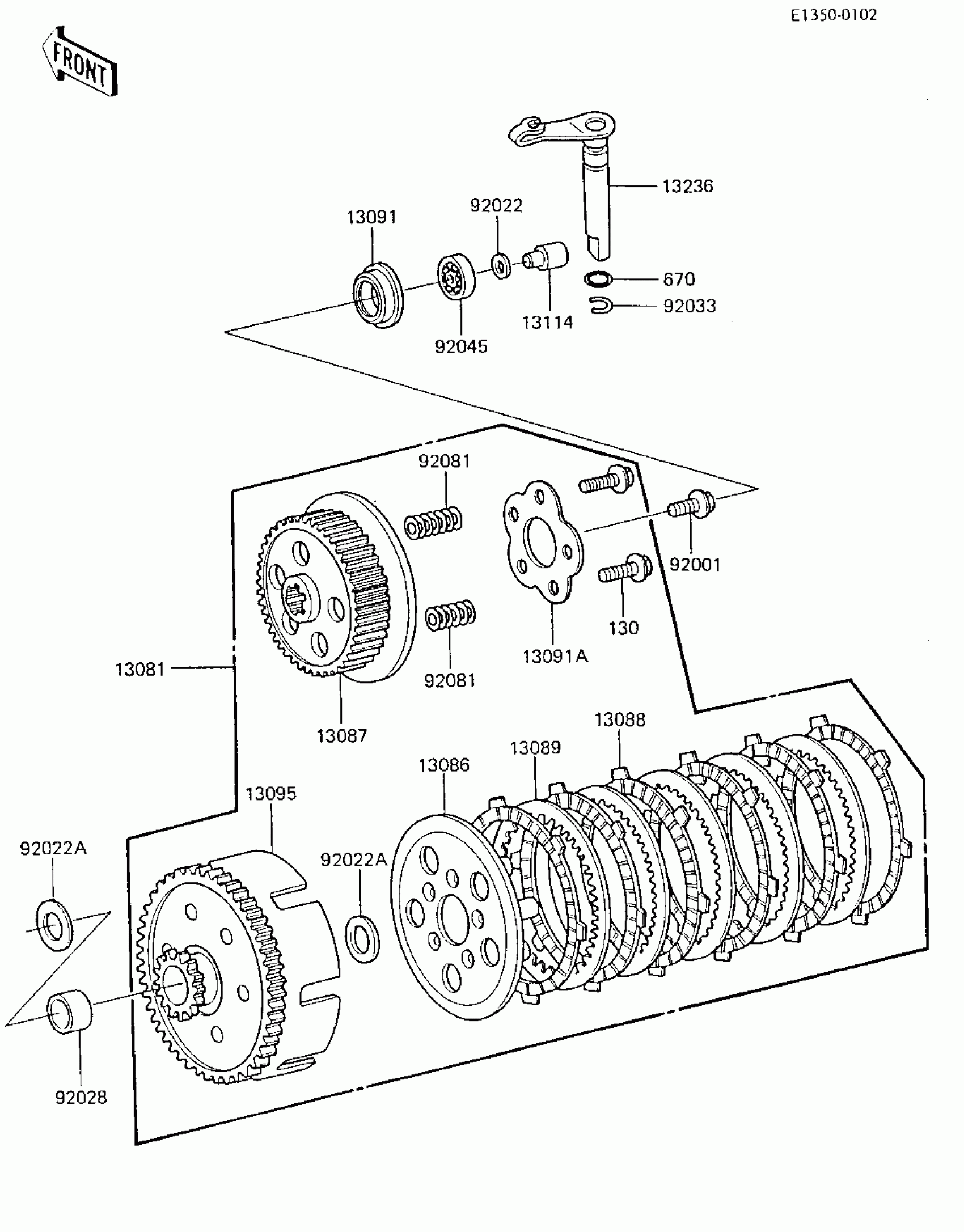

Kawasaki KX80 CLUTCH ('85 KX80-E3) Diagram

Description

Price

13081

CLUTCH-ASSY

13081-1179

Unavailable

13086

WHEEL-CLUTCH

13086-1058

Unavailable

13087

HUB-CLUTCH

13087-1059

Unavailable

13088

PLATE-FRICTION

13088-1010

$13.73

13089

PLATE-CLUTCH,STEEL

13089-1009

$14.05

13091

HOLDER,CLUTCH PUSHER

13091-1133

$11.61

13091A

HOLDER,CLUTCH

13091-1324

Unavailable

13095

HOUSING-COMP-CLUTCH

13095-1113

Unavailable

13114

PUSHER-CLUTCH

13114-1053

Unavailable

13236

LEVER-COMP,CLUTCH REL

13236-1118

Unavailable

92001

BOLT,10X30

92002-1697

$6.57

92022

WASHER,7X12.5X0.8

92022-1290

Unavailable

92022A

WASHER,17.3X28X1

92022-255

$8.58

92028

BUSHING,17X22X21.1

92028-1149

$29.63

92033

RING-SNAP,VALVE GUIDE

92036-023

$0.48

92045

BEARING-BALL,#627

92045-026

$19.97

92081

SPRING,CLUTCH

92081-1757

$7.60

130

BOLT-FLANGED

130P0520

Unavailable

670

O RING,9MM

670B1509

$3.65
