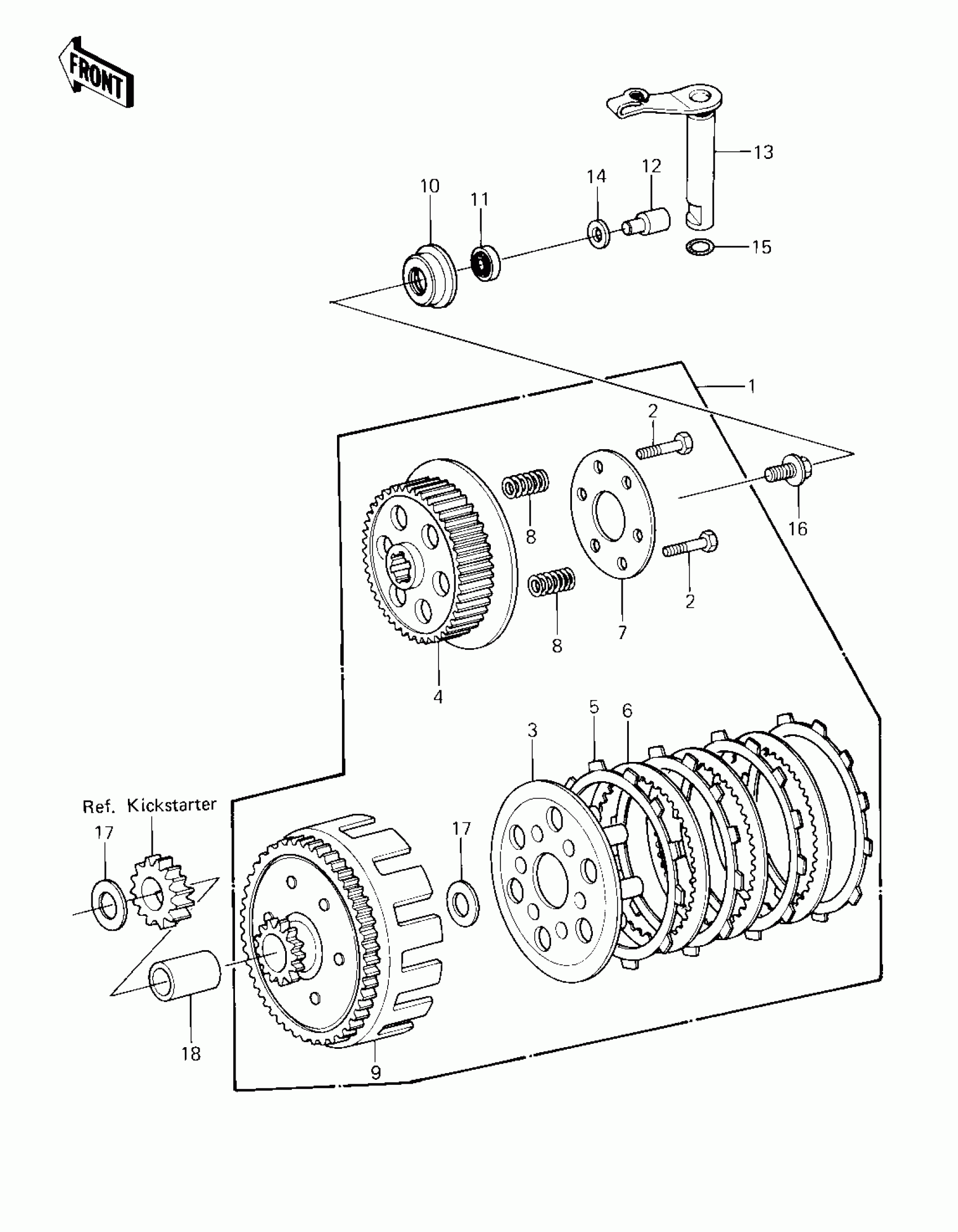

Kawasaki KX80 CLUTCH ('81 KX80-C1) Diagram

#

Description
Price

1

CLUTCH-ASSY

13081-1078

Unavailable

2

BOLT

110G0520

$5.14

2

BOLT-FLANGED

130P0520

Unavailable

3

WHEEL-CLUTCH

13086-1002

$44.98

4

HUB-CLUTCH

13087-1051

$64.64

5

PLATE-FRICTION

13088-1010

$13.73

6

PLATE-CLUTCH,STEEL

13089-1009

$14.05

7

HOLDER,CLUTCH SPRING

13091-1115

$18.40

8

SPRING,CLUTCH

92081-1175

$6.16

9

HOUSING,CLUTCH

13095-1044

Unavailable

10

HOLDER,CLUTCH PUSHER

13091-1038

Unavailable

11

BEARING-BALL

92045-1211

$11.88

12

PUSHER,CLUTCH

13114-1004

Unavailable

13

LEVER,CLUTCH RELEASE

13236-1025

Unavailable

15

O RING,9MM

670B1509

$3.65

16

BOLT,10X14

92001-1433

$5.73

17

WASHER,17.3X28X1

92022-255

$8.58

18

BUSHING,17X22X21.1

92028-1149

$29.63
