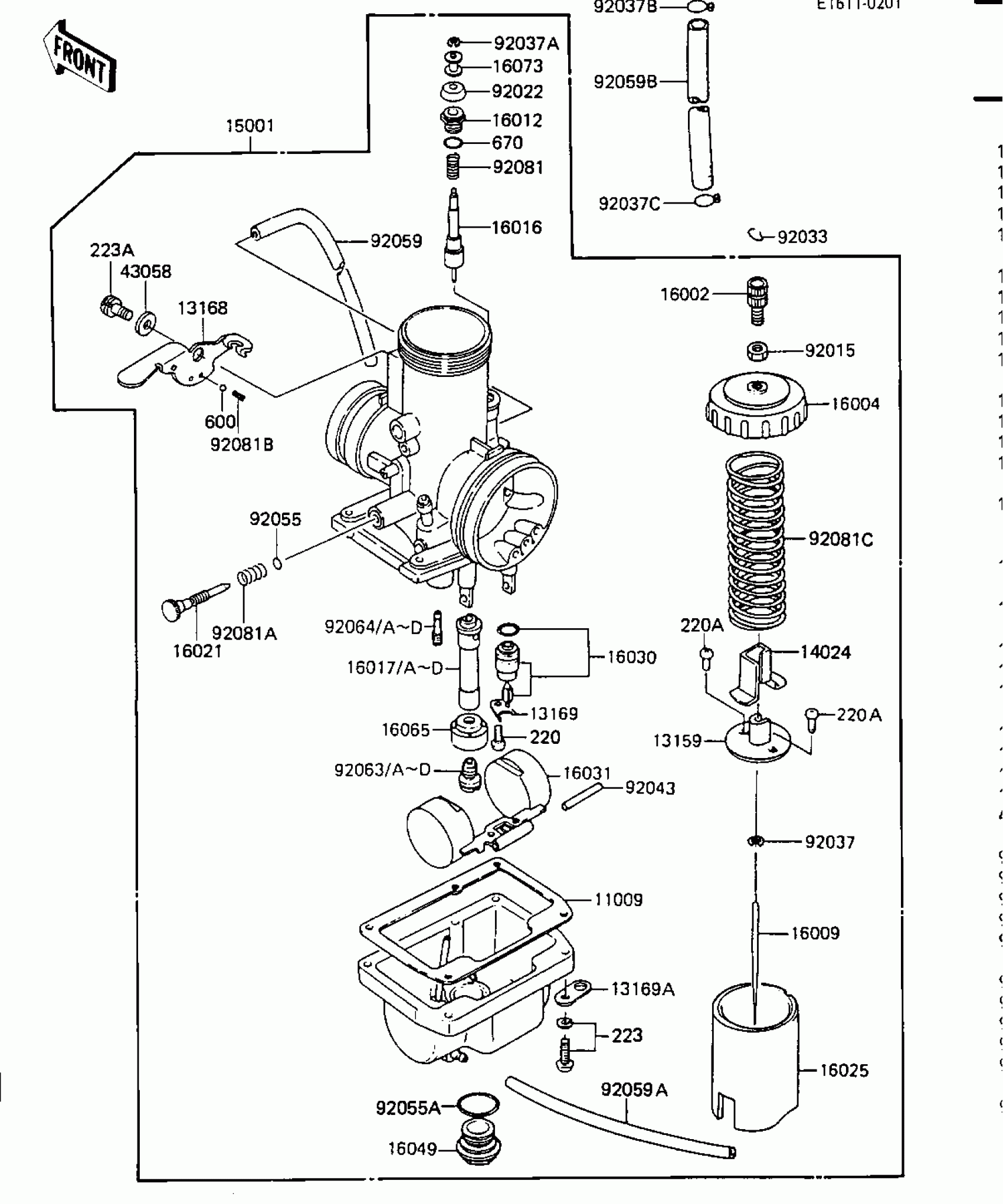

Kawasaki KX80 CARBURETOR (KX80-G2) Diagram

#

Description
Price

11009

GASKET,FLOAT CHAMBER

11009-1178

Unavailable

13159

CONNECTOR,THROTTLE

13159-1010

Unavailable

13168

LEVER,STARTER

13168-1289

Unavailable

13169

PLATE, LOCK

13169-1190

Unavailable

13169A

PLATE,TUBE CLAMP

13169-1226

Unavailable

14024

COVER,THROTTLE VALVE

14025-1494

Unavailable

15001

CARBURETOR-ASSY

15001-1308

$183.11

16002

ADJUSTER-CABLE

16002-011

$13.97

16004

CAP-CHAMBER

16004-025

$33.28

16009

NEEDLE-JET,6EJ3

16009-1223

Unavailable

16012

CAP-STARTER PLUNGER

16012-1057

$13.00

16016

PLUNGER,STARTER

16016-021

Unavailable

16017

JET-NEEDLE,P-2

16017-1223

$27.26

16017A

JET-NEEDLE,P-6

16017-1224

$42.25

16017B

JET-NEEDLE,P-4

16017-1225

$45.79

16017C

JET-NEEDLE,0-8

16017-1227

$40.68

16017D

JET-NEEDLE,0-8

16017-1227

$40.68

16021

SCREW-THROTTLE STOP

16021-1042

Unavailable

16025

VALVE-THROTTLE,CA 2.0

16025-1133

$140.09

16030

FLOAT VALVE ASSY,2.5

16030-1013

Unavailable

16031

FLOAT

16031-1011

$57.76

16049

COVER,MAIN JET

16049-1003

$12.77

16065

HOLDER,MAIN JET RING

16065-1033

Unavailable

16073

COLLAR

16073-014

$10.47

43058

RING

43058-1061

$3.62

92015

NUT,ADJUST LOCK

16003-006

$7.34

92022

CAP,STARTER PLUNGER

16039-015

$6.88

92033

RING-SNAP

92036-018

$3.89

92037

CLAMP,E-TYPE

16008-010

$9.21

92037A

CIRCLIP

16076-003

$8.92

92037B

CLAMP,TUBE

92037-147

$7.34

92037C

CLAMP

92037-1712

$5.00

92043

PIN,FLOAT

16032-003

$6.57

92055

RING-O

92055-044

$10.38

92055A

RING-O

92055-1076

$10.62

92059

TUBE,3X5X300

92059-1755

$9.24

92059A

TUBE,3X5X250,BLACK

92059-1308

Unavailable

92059B

TUBE,5.3X10.5X200

92059-1665

$17.42

92063

JET-MAIN,#180

92063-020

$14.10

92063A

JET-MAIN,#190

92063-021

$14.10

92063B

JET-MAIN,#200

92063-022

$14.10

92063C

JET-MAIN,#210

92063-023

$14.10

92063D

JET-MAIN,#220

92063-024

$16.50

92064

JET-PILOT,#30

92064-022

$17.03

92064A

JET-PILOT NO 35

92064-023

$20.51

92064B

JET-PILOT NO 40

92064-024

$22.86

92064C

JET-PILOT NO 45

92064-044

$19.70

92064D

JET-PILOT,#27.5

92064-1033

$17.03

92081

SPRING,STARTER PLUG

16013-008

Unavailable

92081A

SPRING,THROTTLE ADJUST

92081-1152

$6.16

92081B

SPRING,SHAFT STOP

92081-1260

$5.80

92081C

SPRING,THROTTLE VALVE

92081-1724

$15.20

220

SCREW PAN HEAD 4X8

220B0408

$0.67

220A

SCREW-PAN-CROS,3X8

220C0308

$0.58

223

SCREW-PAN-WS-CROS

223B0416

$0.67

223A

SCREW-PAN-WS-CROS

223B0612

$1.00

600

BALL,STEEL,1/8"

600A0400

$1.40

670

O RING,9MM

670B1509

$3.65
