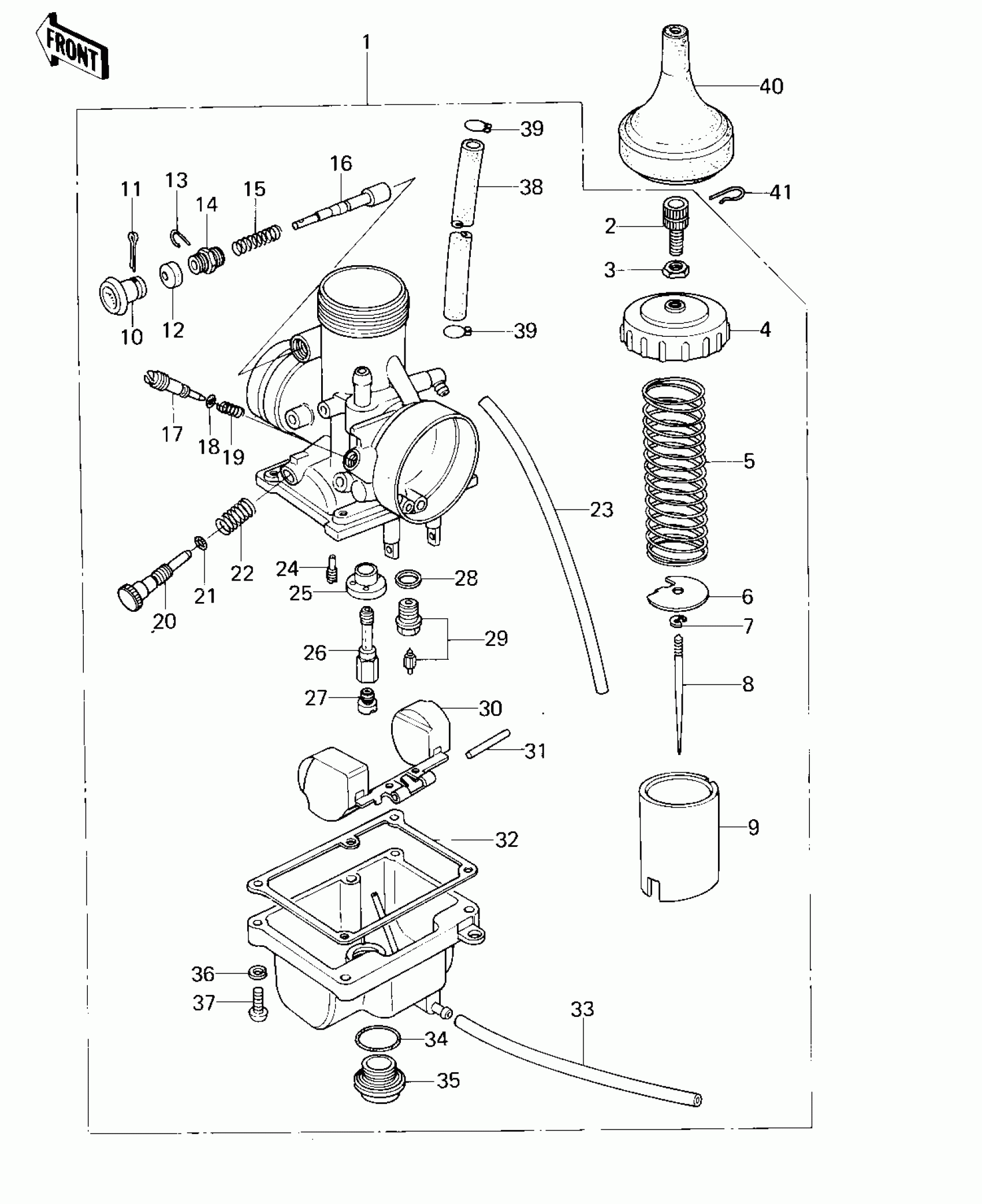

Kawasaki KX80 CARBURETOR (KX80-A1) Diagram
#
1
CARBURETOR ASSY
16001-1096
Unavailable
2
ADJUSTER-CABLE
16002-011
Unavailable
3
NUT,ADJUST LOCK
16003-006
Unavailable
4
CAP-CHAMBER
16004-025
Unavailable
5
SPRING,THROTTLE VALVE
16006-023
Unavailable
6
SEAT-SPRING,THROTTLE VALVE
16007-023
Unavailable
7
CLAMP,E-TYPE
16008-010
Unavailable
8
JET NEEDLE,4J28
16009-1034
Unavailable
9
VALVE,THROTTLE,C.A1.5
16025-1028
Unavailable
10
KNOB,STARTER PLUNGER
92077-1009
Unavailable
11
PIN-COTTER,1.6X15
550D1615
Unavailable
12
BOOT,STARTER PLUNGER
16036-012
Unavailable
13
CLAMP
92037-1077
Unavailable
14
CAP-STARTER PLUNGER
16012-021
Unavailable
15
SPRING,STARTER PLUNGR
16013-011
Unavailable
16
PLUNGER ASSY,STARTER
16016-1004
Unavailable
17
SCREW,PILOT AIR
16014-1013
Unavailable
18
GASKET,"O"RING
16038-022
Unavailable
19
SPRING,STOP SCREW
92081-1153
Unavailable
20
SCREW,THROTTLE ADJST
16021-1012
Unavailable
21
RING-O
92055-044
Unavailable
22
SPRING,THROTTLE ADJUST
92081-1152
Unavailable
23
TUBE,3X5X300
92059-1755
Unavailable
24
JET-PILOT,#35
92064-1023
Unavailable
25
HOLDER,JET NEEDLE
16065-1020
Unavailable
26
NEEDLE JET,O-0
16017-1037
Unavailable
27
JET-MAIN NO 132.5R
92063-103
Unavailable
27
JET-MAIN,#A127.5
92063-1100
Unavailable
27
MAIN JET NO 130R
92063-057
Unavailable
27
MAIN JET NO 135R
92063-104
Unavailable
27
MAIN JET,#A137.5
92063-1087
Unavailable
28
WASHER FLOAT VLV SEAT
16029-004
Unavailable
29
VALVE-FLOAT,#2.6
16030-1004
Unavailable
30
FLOAT
16031-1005
Unavailable
31
PIN,FLOAT
16032-003
Unavailable
32
GASKET,FLOAT CHAMBER
11009-1147
Unavailable
33
TUBE,3X5X300
92059-1755
Unavailable
34
RING-O,MAIN JET COVER
92055-1061
Unavailable
35
COVER-MAIN JET
16049-1001
Unavailable
36
WASHER SPRING 4MM
461F0400
Unavailable
37
SCREW PAN HEAD 4X16
220B0416
Unavailable
38
TUBE,5.3X10.5X155
92059-1080
Unavailable
39
CLAMP,TUBE
92037-072
Unavailable
40
BOOT,CARBURETOR
49006-1024
Unavailable
41
RING-SNAP
92036-018
Unavailable
