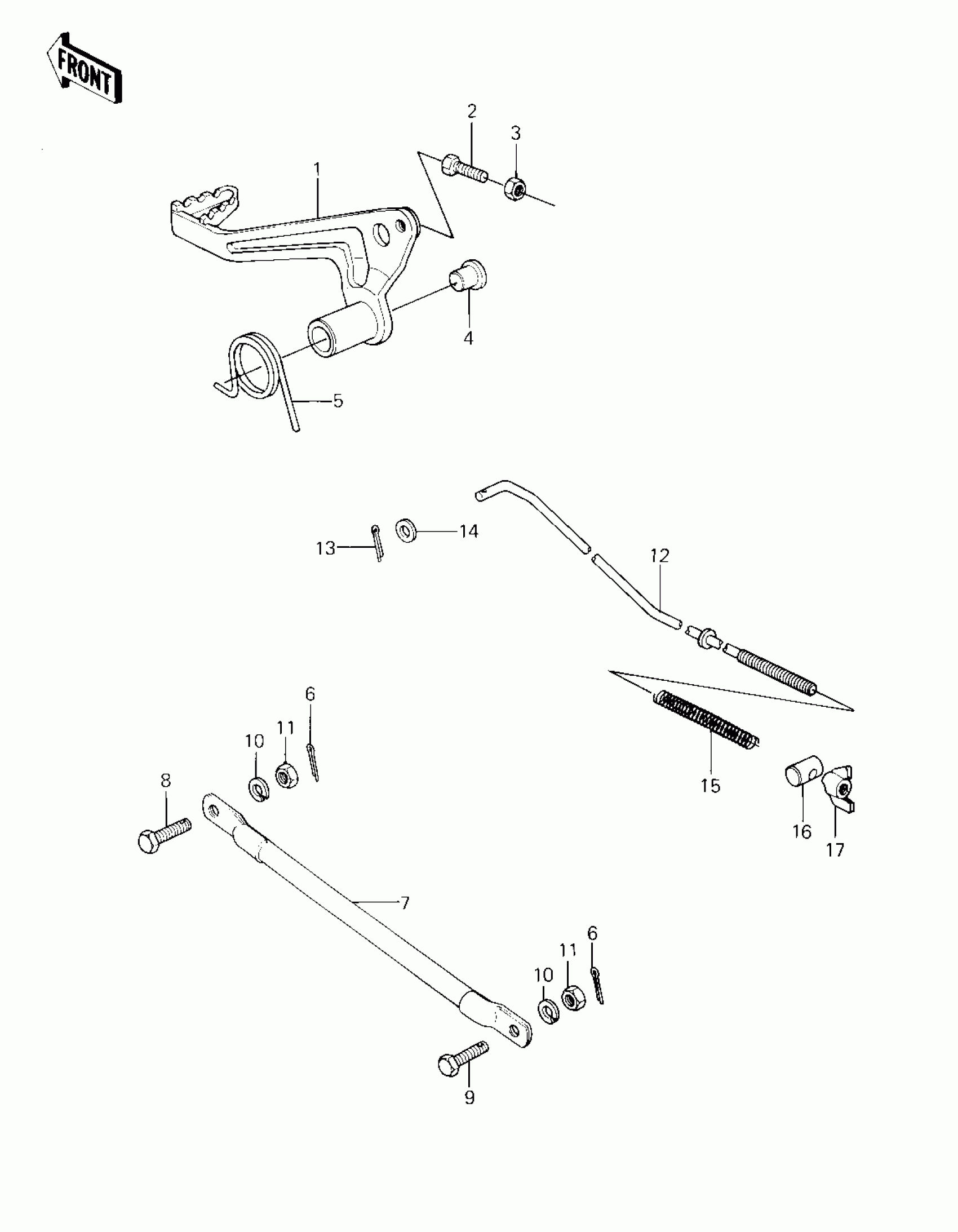

Kawasaki KX80 BRAKE PEDAL/TORQUE LINK ('81 KX80-C1) Diagram

Description

Price

PEDAL,BRAKE

43001-1053

$106.93

BOLT-UPSET

112G0618

$1.01

NUT 6MM

311B0600

$0.93

PLUG,BRAKE PEDAL

92066-1078

Unavailable

SPRING,BRAKE PEDAL

92081-1290

$8.85

PIN COTTER 2.0X15

550D2015

$1.04

TORQUE LINK,RR BRAKE

43007-1024

$46.82

BOLT,10X25

92001-1450

Unavailable

BOLT,10X29

92003-096

$10.72

WASHER SPRING 10MM

461F1000

$0.67

ROD,BRAKE

43011-1028

Unavailable

PIN COTTER 2.0X15

550D2015

$1.04

WASHER-PLAIN-SMALL,6MM

410B0600

$1.31

SPRING,BRAKE ROD

43012-001

$4.65

PIN,BRAKE ROD

92043-039

$6.38

NUT,WING,6MM

92015-4004

$7.29
