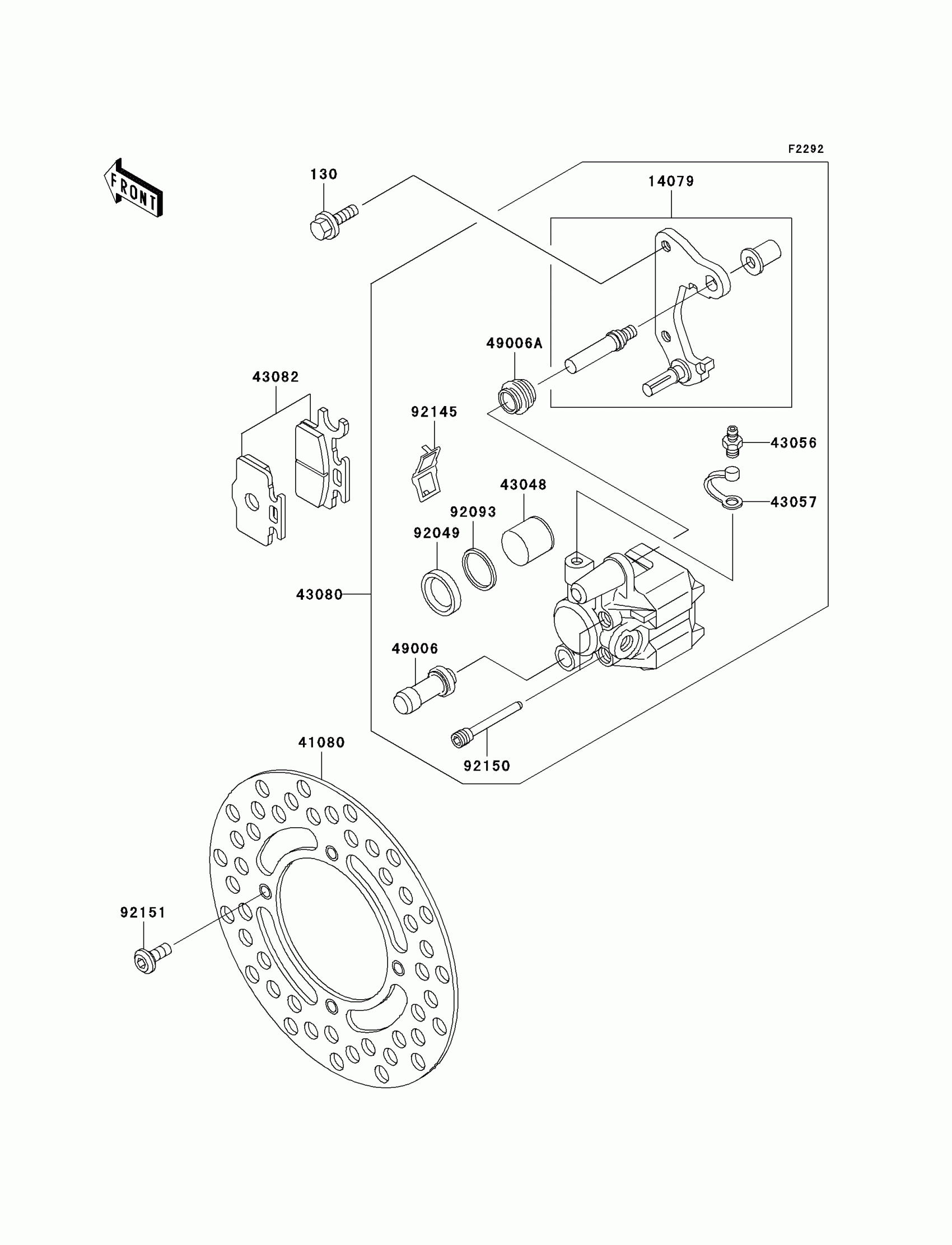

Kawasaki KX65 Front Brake Diagram

Description

Price

130

BOLT-FLANGED

130P0840

$1.44

14079

HOLDER-ASSY,FRONT CALIPER

14079-1130

$63.67

41080

DISC

41080-1470

$185.81

43048

PISTON-CALIPER

43048-1089

$51.24

43056

BREATHER

43056-1055

Unavailable

43057

CAP-BREATHER

43057-1001

$4.91

43080

CALIPER-SUB-ASSY,FR

43080-5131

$183.66

43082

PAD-ASSY-BRAKE

43082-1242

$40.92

49006

BOOT,CALIPER

49006-1088

$11.61

49006A

BOOT,CALIPER

49006-1242

$5.46

92049

SEAL-OIL,PISTON

92049-1331

$9.28

92093

SEAL,PISTON

92093-1272

$19.45

92145

SPRING,PAD

92145-1269

$14.14

92150

BOLT

92150-1144

$9.91

92151

BOLT,DISC PLATE,6MM

92151-1799

$4.13
