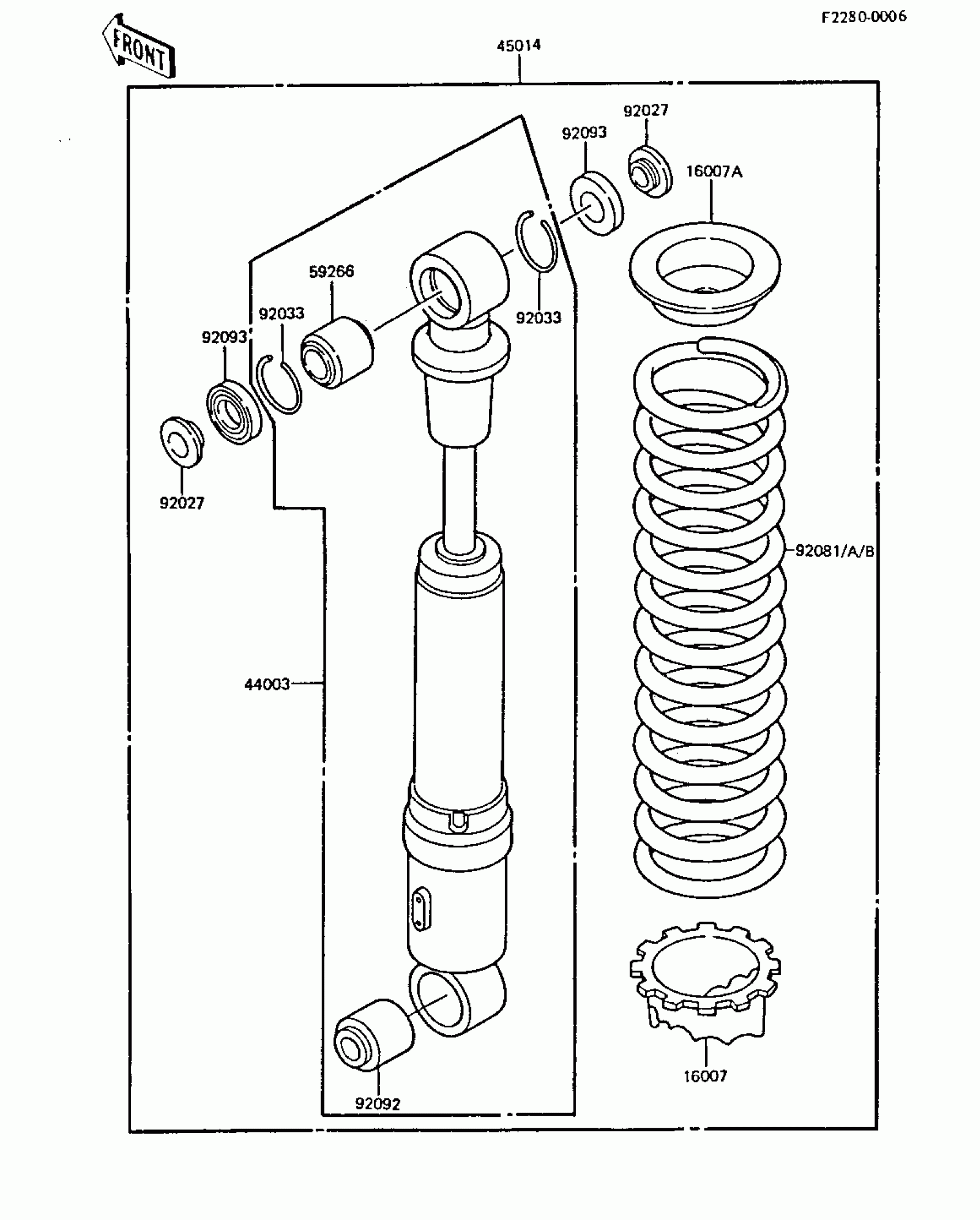

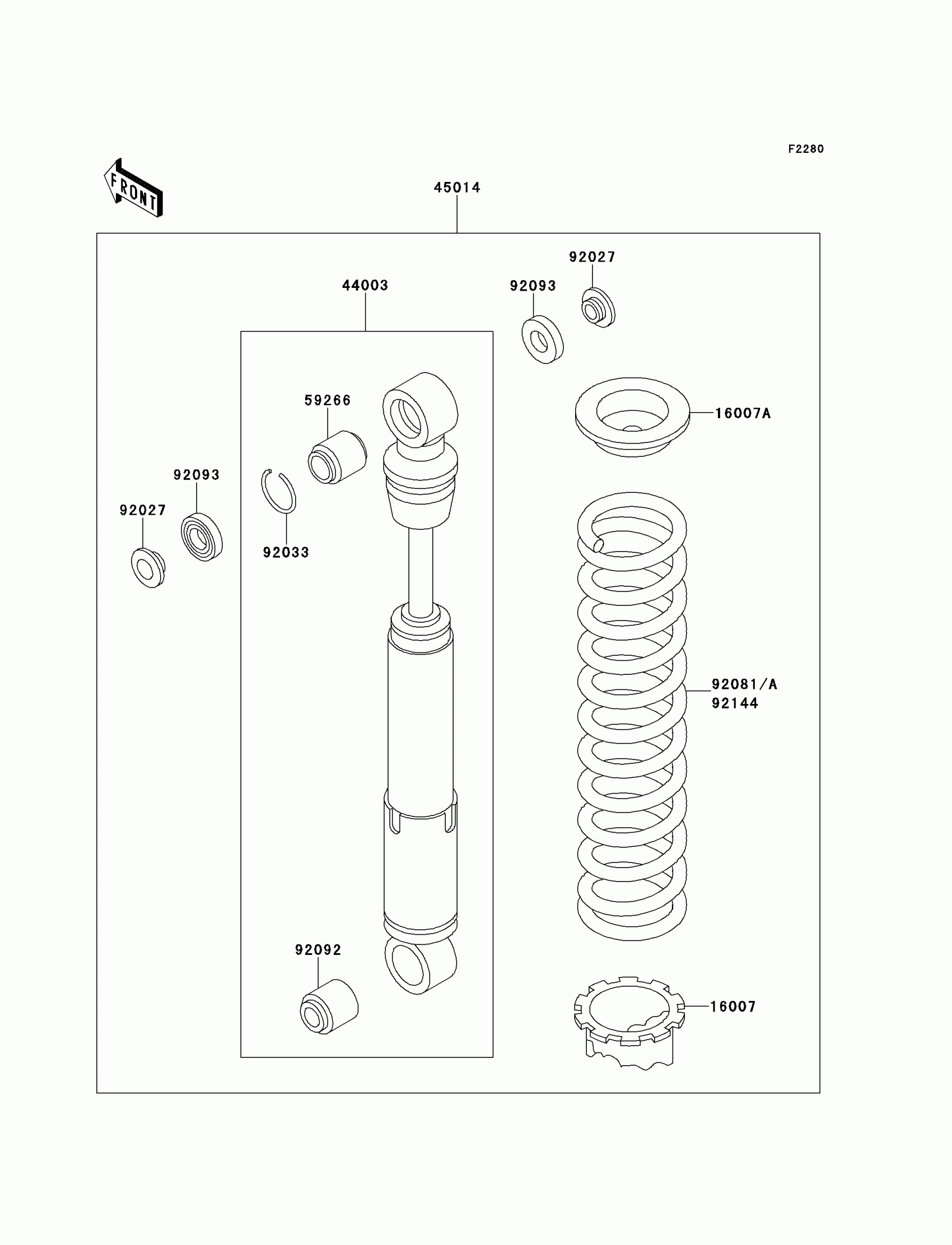

Kawasaki KX60 Shock Absorber Diagram

Description

Price

16007

SEAT-SPRING,REAR SHOCK,LWR

16007-1055

$36.70

16007A

SEAT-SPRING,REAR SHOCK,UPP

16007-1121

$11.93

44003

DAMPER-ASSY,SHOCKABSORBER

44003-1944

$394.41

45014

SHOCKABSORBER

45014-1464

Unavailable

59266

JOINT-BALL

59266-1053

$116.73

92027

COLLAR

92027-1862

$20.77

92033

RING-SNAP

92033-1090

$5.42

92081

SPRING,SHOCKABSORBER,K=3.0

92081-1529

Unavailable

92081A

SPRING,SHOCKABSORBER,K=3.7

92081-1530

Unavailable

92092

BUSHING-RUBBER,SHOCKABSORBER

92092-1016

$29.14

92093

SEAL

92093-1183

$16.50

92144

SPRING,SHOCKABSORBER,K=3.3

92144-1469

Unavailable
