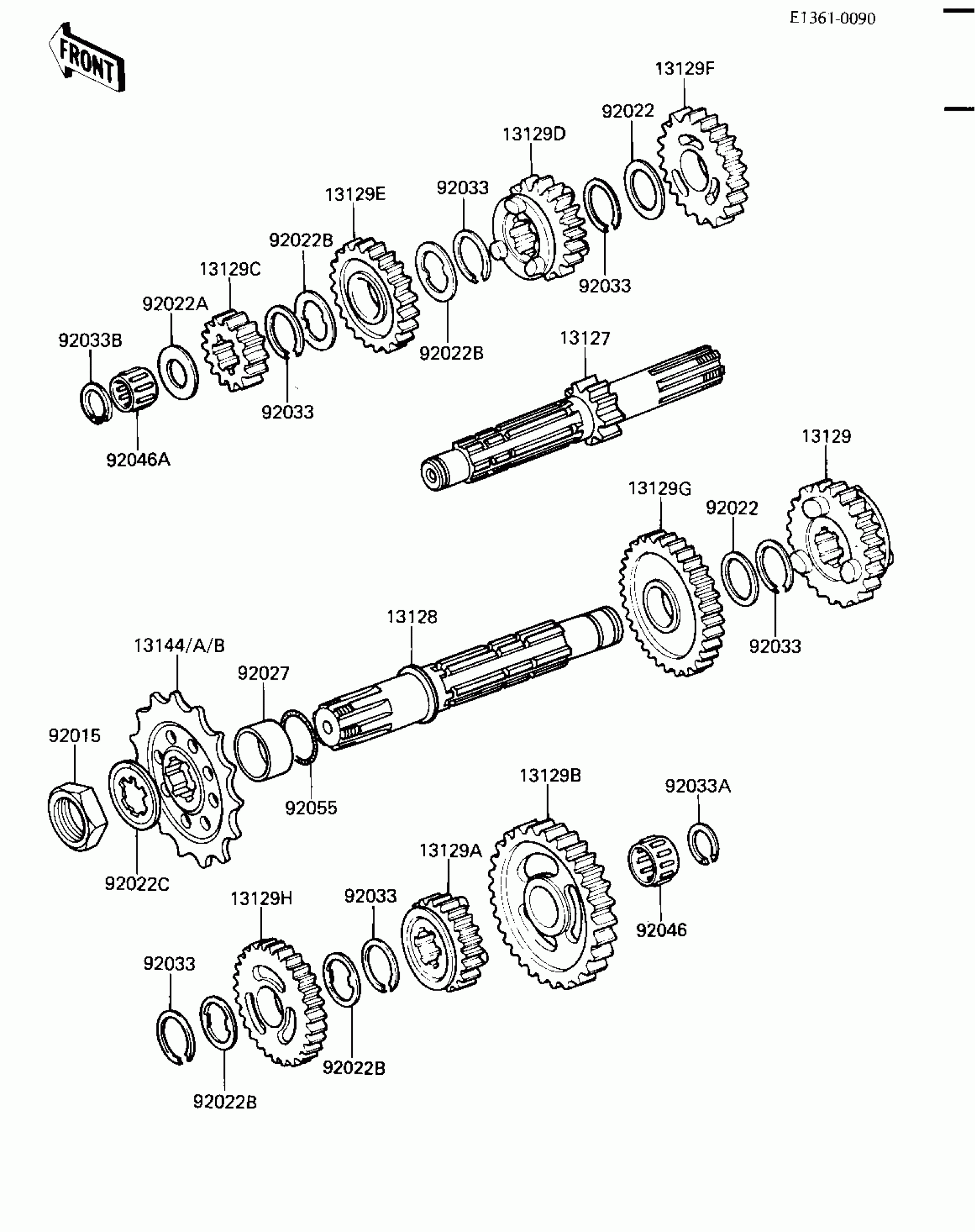

Kawasaki KX500 TRANSMISSION ('84 A2) Diagram
#
Description
Price
13127
SHAFT-TRANSMISSION IN
13127-1126
Unavailable
13128
SHAFT-TRANSMISSION OU
13128-1042
Unavailable
13129
4TH GEAR,OUTPUT,21T
13129-1132
Unavailable
13129A
TOP GEAR,OUTPUT,19T
13129-1133
Unavailable
13129B
GEAR,OUTPUT LOW,32T
13129-1180
Unavailable
13129C
GEAR,INPUT 2ND.22T
13129-1407
Unavailable
13129D
GEAR,INPUT 3RD,22T
13129-1408
Unavailable
13129E
GEAR,INPUT 4TH,22T
13129-1409
Unavailable
13129F
GEAR,INPUT TOP,24T
13129-1410
Unavailable
13129G
GEAR-OUTPUT 2ND,32T
13129-1622
Unavailable
13129H
GEAR-TRANSMISSION SPU
13129-1679
Unavailable
13144
ENGINE SPROCKET 13T
13144-055
Unavailable
13144A
ENGINE SPROCKET,14T
13144-1006
Unavailable
13144B
SPROCKET,ENGINE,15T
13144-1026
Unavailable
92015
NUT BEARING ADJUST
42045-008
Unavailable
92022
WASHER,25.3X30X0.5
92022-159
$8.58
92022A
WASHER,17.3X28X1
92022-255
$8.58
92022B
WASHER,TOOTHED,22.5X31X0.5
92024-038
$6.22
92022C
WASHER,LOCK
92024-065
Unavailable
92027
COLLAR,25X32X10.5
92143-1370
$14.50
92033
RING-SNAP,24MM
92033-026
$8.79
92033A
RING-SNAP,18MM
92033-029
$9.82
92033B
RING-SNAP
92033-032
$4.96
92046
BEARING-NEEDLE,KT202614
92046-1170
$18.16
92046A
BEARING-NEEDLE
92046-1184
$21.25
92055
RING-O
92055-035
$5.00
