Description

Price

11012

CAP,SWING ARM

11012-1259

$21.80

11012A

CAP,CHAIN ADJUSTER

11012-1431

Unavailable

12053

GUIDE-CHAIN,RR,INSIDE

12053-1105

Unavailable

12053A

GUIDE-CHAIN,RR

12053-1179

Unavailable

12053B

GUIDE-CHAIN,FR,LWR

12053-1208

Unavailable

12053C

GUIDE-CHAIN,FR,UPP

12053-1213

Unavailable

33001

ARM-COMP-SWING

33001-1276

$454.00

33032

SHAFT-SWING ARM

33032-1127

Unavailable

33040

ADJUSTER-CHAIN,OUTSID

33040-1058

$48.07

33040A

ADJUSTER-CHAIN,INSIDE

33040-1059

Unavailable

42036

SLEEVE,SWING ARM

42036-1064

$21.29

55020

GUARD,CALIPER

55020-1247

Unavailable

92009

SCREW,6X14,WHITE

92009-1287

$2.55

92015

NUT,14MM

92015-1407

$9.91

92015A

NUT,FLANGED,6MM

92015-1078

Unavailable

92015B

NUT,8MM

92015-1143

$0.65

92022

WASHER,6.5X20X1.6

92022-125

$1.40

92046

BEARING-NEEDLE

92046-1128

$26.03

132

BOLT-FLANGED-SMALL

132G0625

Unavailable

221

SCREW-CSK-CROS,6X10

221B0610

$3.67

221A

SCREW-CSK-CROS,6X50

221B0650

$3.84

318

NUT-HEX-SMALL,8MM

318G0800

Unavailable

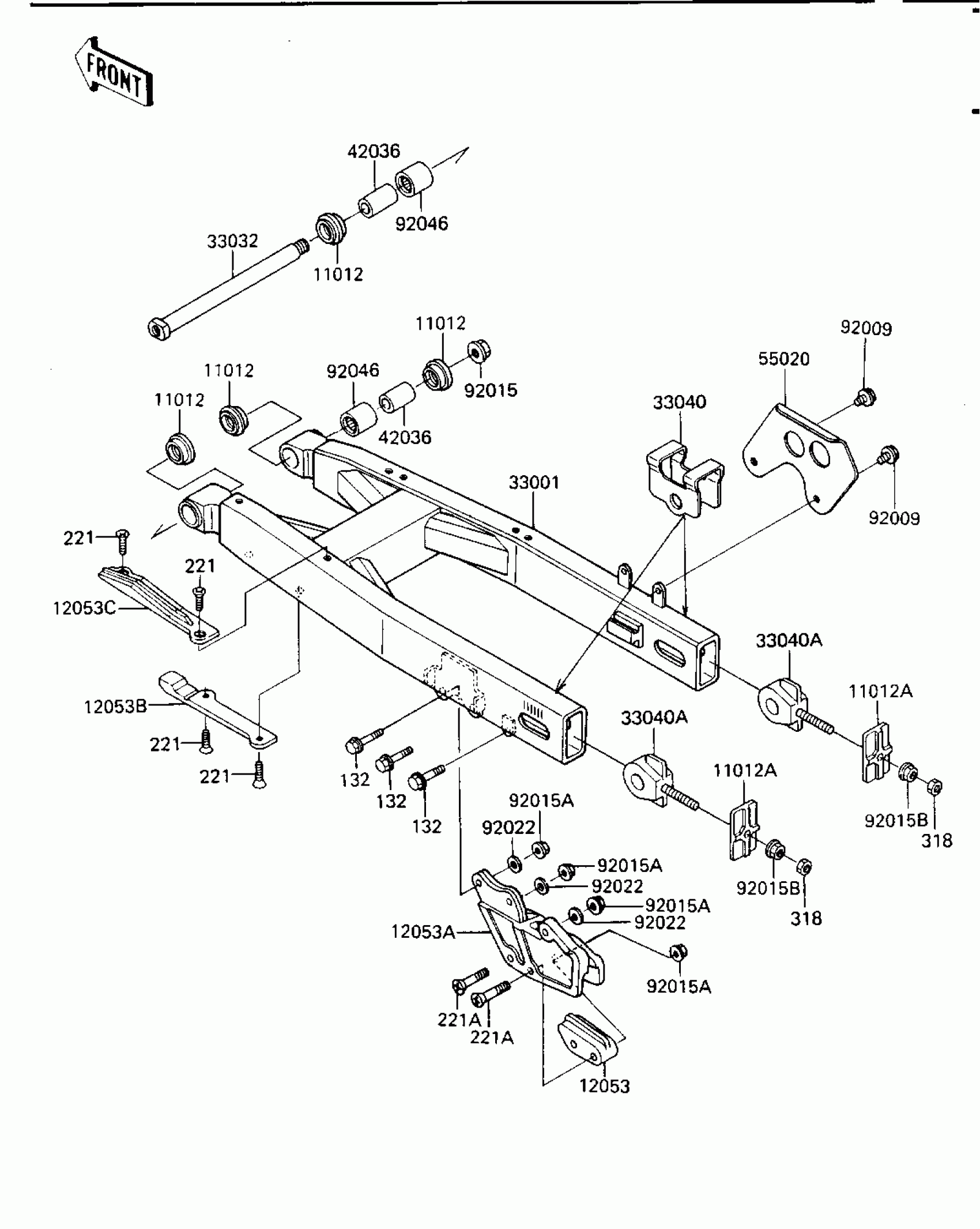

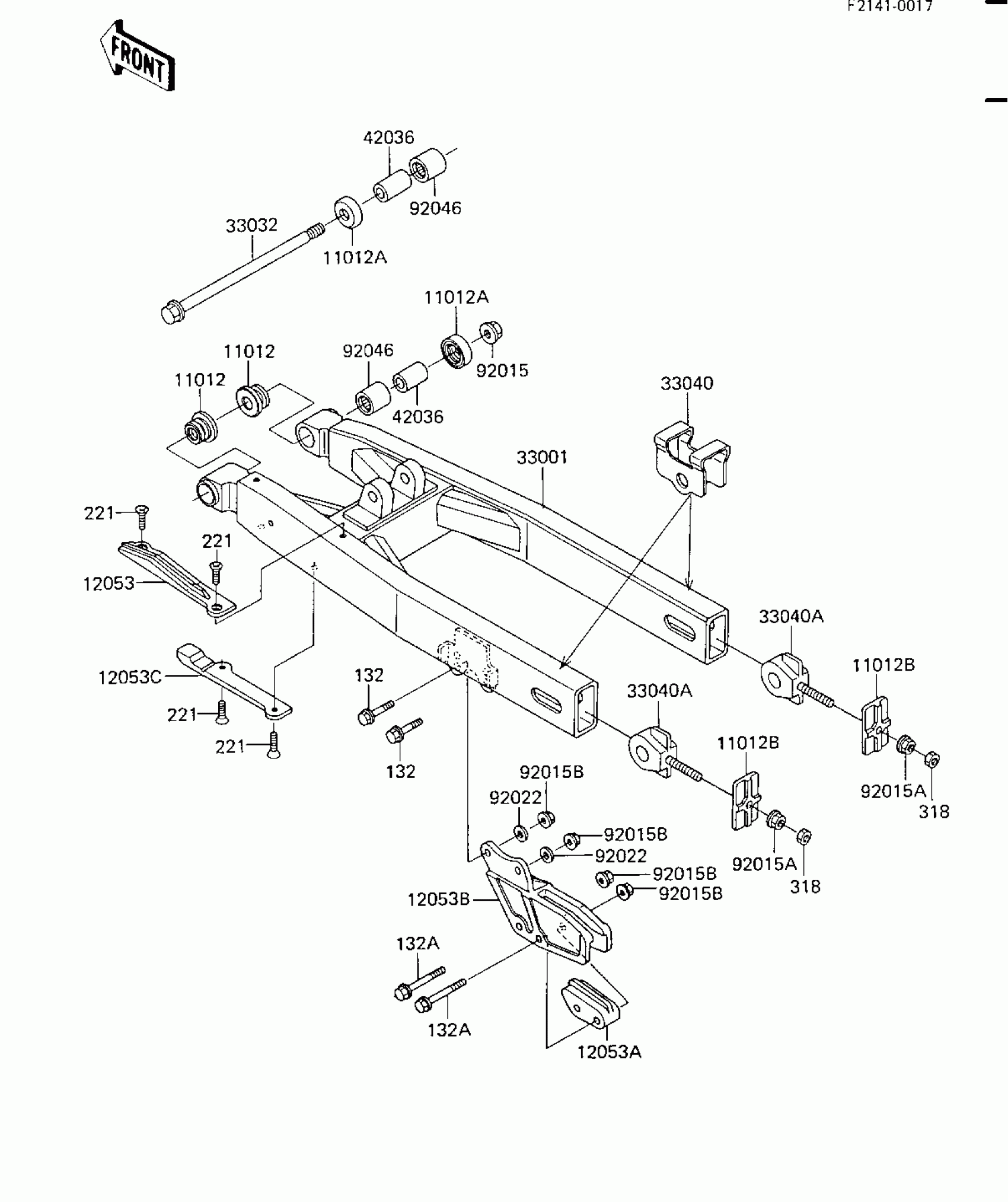

Kawasaki KX500 SWING ARM Diagram

CAP,SWING ARM

CAP,CHAIN ADJUSTER

GUIDE-CHAIN,RR,INSIDE

GUIDE-CHAIN,RR

GUIDE-CHAIN,FR,LWR

GUIDE-CHAIN,FR,UPP

ARM-COMP-SWING

SHAFT-SWING ARM

ADJUSTER-CHAIN,OUTSID

ADJUSTER-CHAIN,INSIDE

SLEEVE,SWING ARM

GUARD,CALIPER

SCREW,6X14,WHITE

NUT,14MM

NUT,FLANGED,6MM

NUT,8MM

WASHER,6.5X20X1.6

BEARING-NEEDLE

BOLT-FLANGED-SMALL

SCREW-CSK-CROS,6X10

SCREW-CSK-CROS,6X50

NUT-HEX-SMALL,8MM
