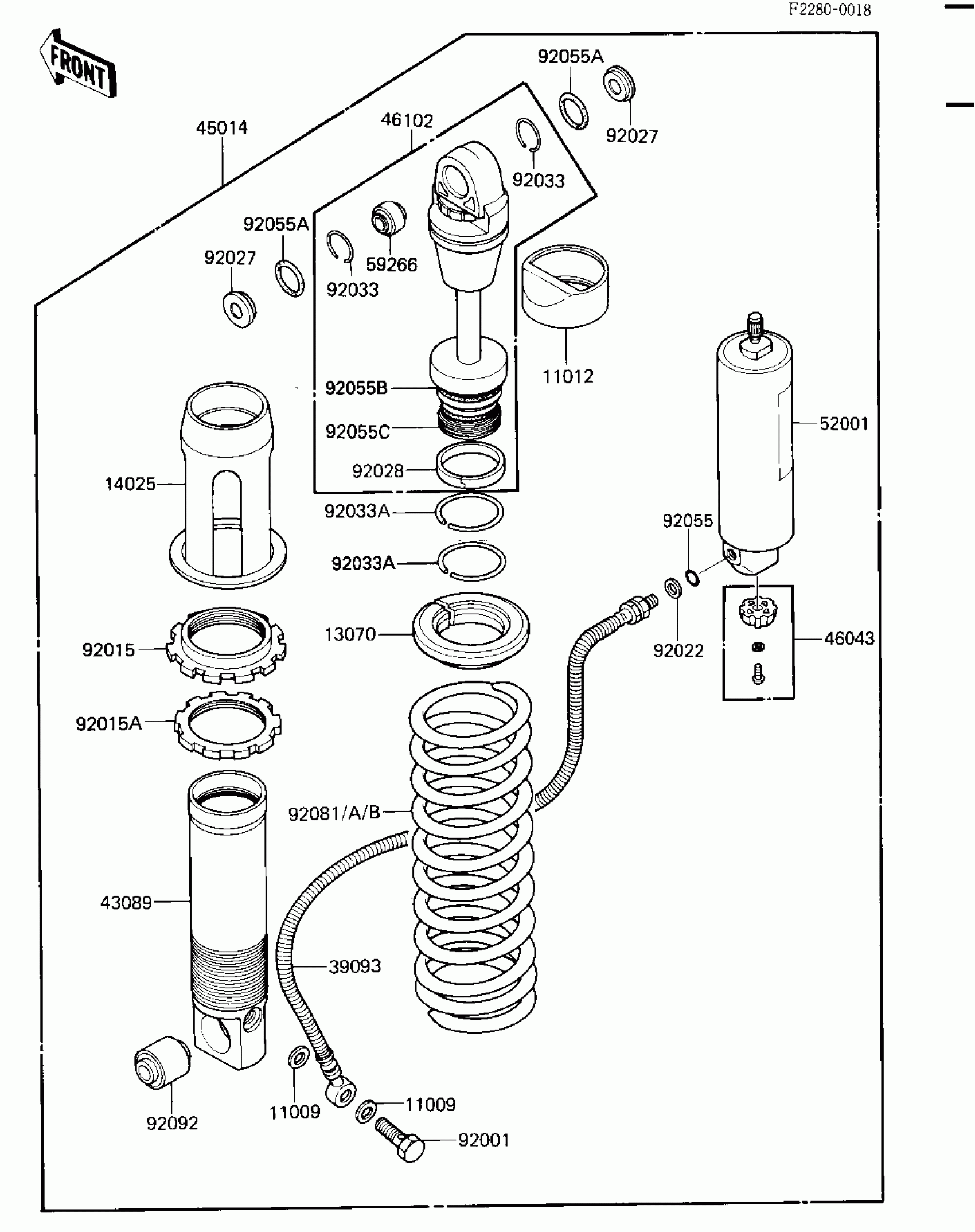

Kawasaki KX500 SHOCK ABSORBER ('84 A2) Diagram
#
Description
Price
11009
GASKET
44045-057
$4.86
11012
CAP,REARSHOCK
11012-1278
Unavailable
13070
GUIDE,SPRING
13070-1075
$69.04
14025
COVER,SHOCKABSORBER
14025-1664
Unavailable
39093
PIPE-COMP-SUSP
39093-1102
$135.88
43089
CYLINDER-SHOCKABSORBE
43089-1102
$338.76
45014
SHOCKABSORBER
45014-1255
$1,126.61
46043
KNOB-ASSY,REAR SHOCK
46043-1051
Unavailable
46102
ROD,SHOCKABSORBER
46102-1117
$635.99
52001
TANK-OIL,REARSHOCK
52001-1052
$284.29
59266
JOINT-BALL
59266-1053
$116.73
92001
BOLT,BANJO
92001-1752
Unavailable
92015
NUT,SPRING ADJUST LOC
92015-1238
Unavailable
92015A
NUT,SPRING ADJUST
92015-1239
$51.19
92022
WASHER,REAR SHOCK
92022-1297
Unavailable
92027
COLLAR,REARSHOCK
92027-1534
Unavailable
92028
BUSHING,ROD
92028-1288
Unavailable
92033
RING-SNAP
92033-1090
$5.42
92033A
RING-SNAP,REARSHOCK
92033-1091
$4.96
92055
"0" RING
92055-1099
Unavailable
92055A
RING-O
92055-1156
$1.42
92055B
RING-O,ROD
92055-1181
Unavailable
92055C
RING-O,ROD
92055-1234
Unavailable
92081
SPRING
92081-1575
$244.63
92081A
SPRING,SHOCKABSORBER,
92081-1689
$310.84
92081B
SPRING,SHOCKABSORBER,
92081-1696
$310.84
92092
BUSHING-RUBBER,SHOCKABSORBER
92092-1008
$34.49
