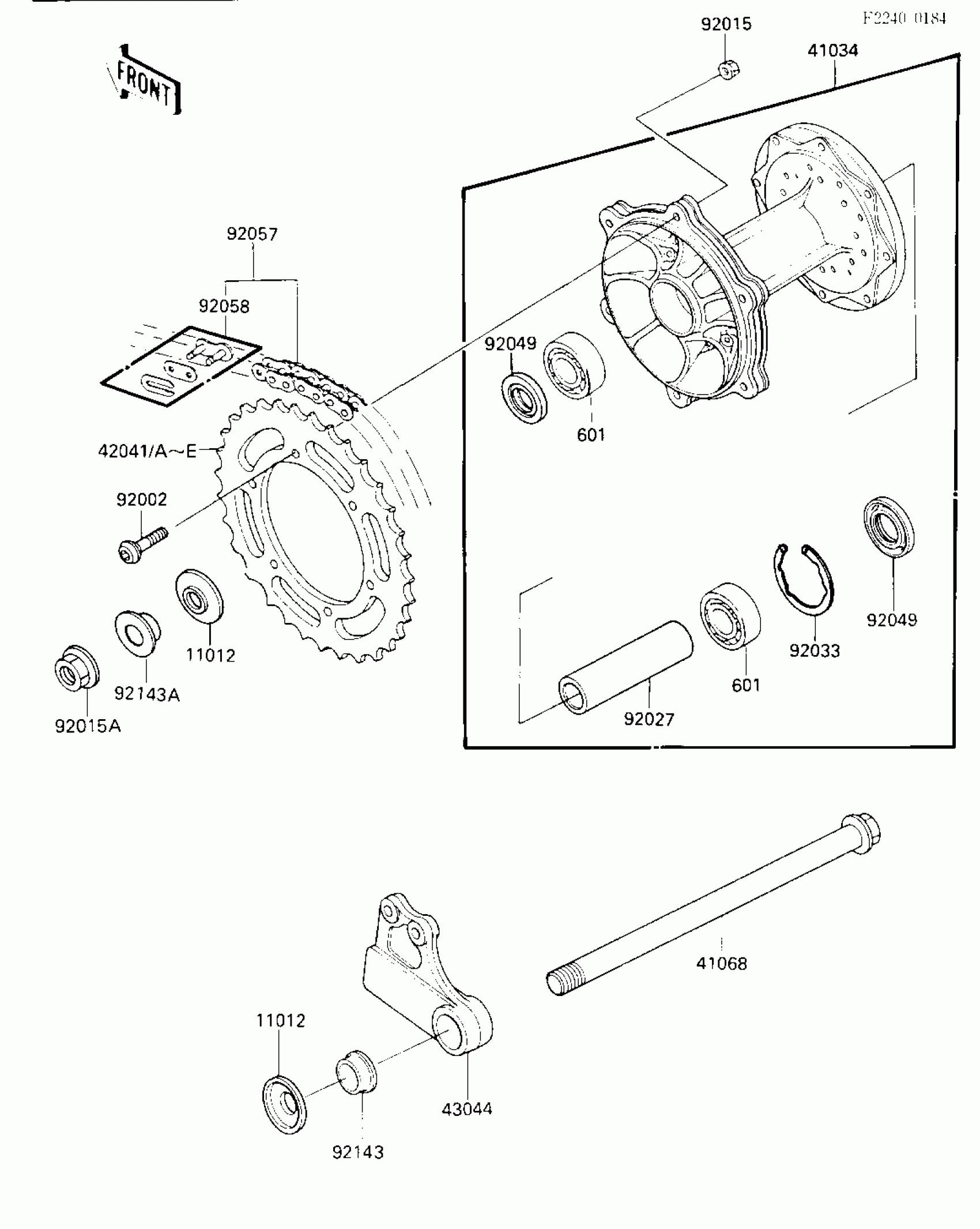

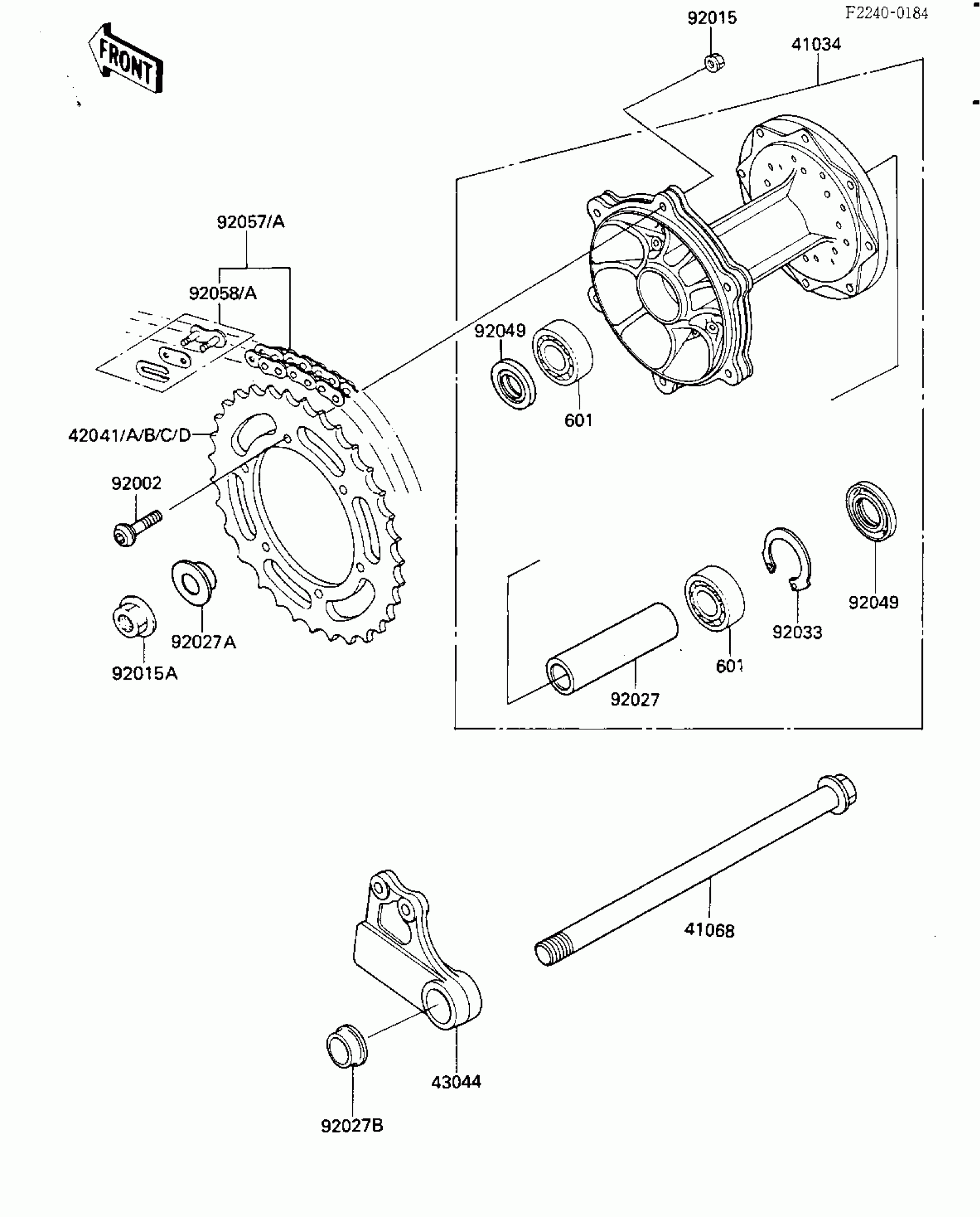

Kawasaki KX500 REAR HUB/CHAIN Diagram

#

Description
Price

41034

DRUM-ASSY,REAR BRAKE

41034-1139

$644.69

41068

AXLE,RR

41068-1180

Unavailable

42041

SPROCKET-HUB,50T,AL

42041-1255

Unavailable

42041A

SPROCKET-HUB,48T,AL

42041-1103

$138.44

42041B

SPROCKET-HUB,49T,AL

42041-1256

$110.77

42041C

SPROCKET-HUB,46T,AL

42041-1193

$135.87

42041D

SPROCKET-HUB,47T,AL

42041-1258

$138.44

43044

HOLDER-COMP-CALIPER

43044-1061

$106.90

92002

BOLT,8MM

92002-1387

$6.56

92015

NUT,8MM

92015-1143

$0.65

92015A

NUT,20MM

92015-1461

$24.15

92027

COLLAR,20.2X25.4X120

92027-1942

$58.02

92027A

COLLAR,L=18

92027-1943

Unavailable

92027B

COLLAR,L=13

92027-1944

Unavailable

92033

RING-SNAP,42MM

92033-1041

$6.16

92049

SEAL-OIL,BJNC2 25425

92049-1203

$17.91

92057

CHAIN,D1D520K 116L

92057-1079

Unavailable

92057A

CHAIN,DRIVE,DID520DS5X114L

92057-1202

$165.00

92058

JOINT-CHAIN,DRIVE

92058-1013

Unavailable

92058A

JOINT-CHAIN

92058-1051

Unavailable

601

UNAVAILABLE IN PRICE BOOK

601B60040

Unavailable
