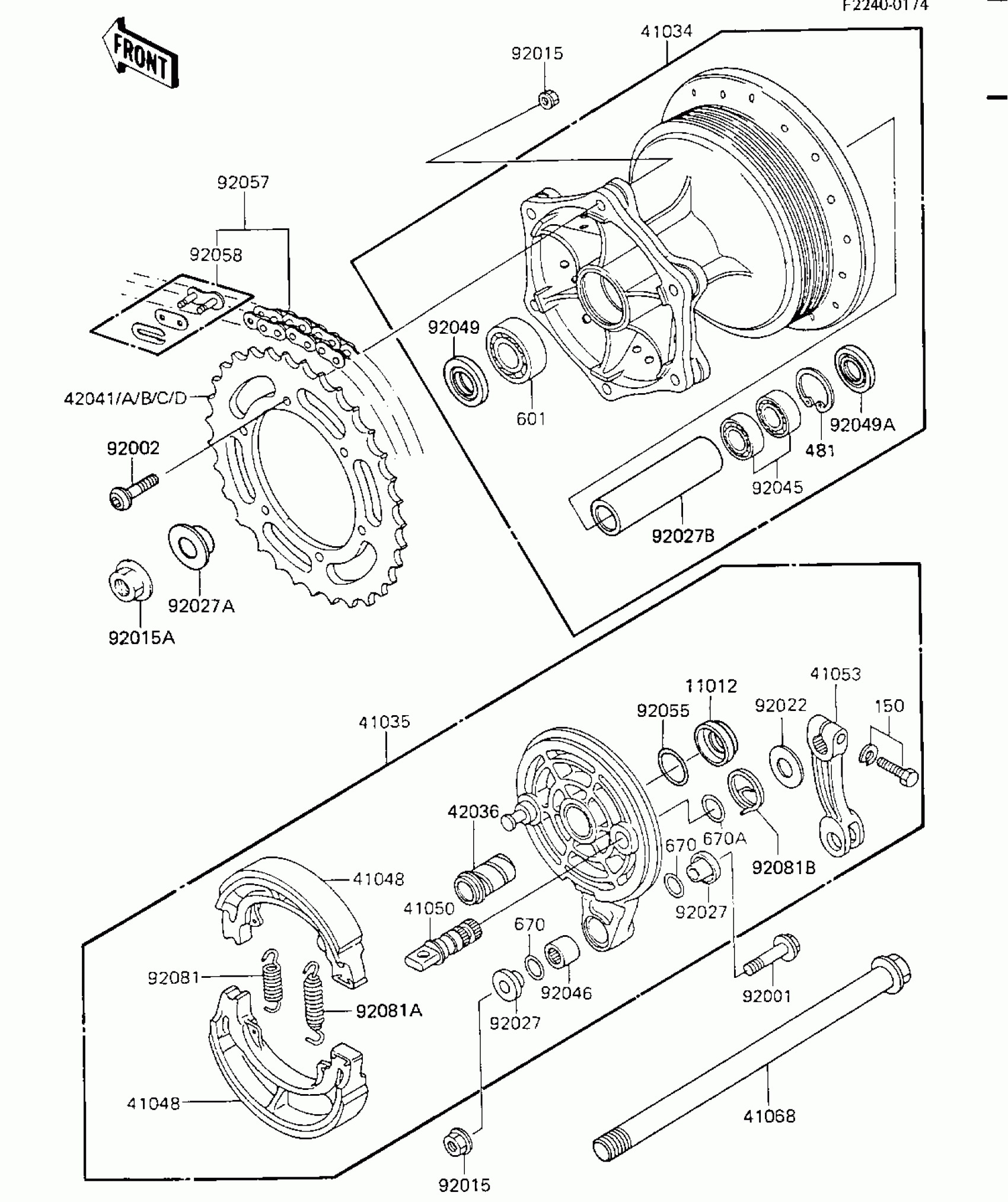

Kawasaki KX500 REAR HUB/BRAKE/CHAIN Diagram

#

Description
Price

11012

CAP,RR BRAKE

11012-1416

Unavailable

41034

DRUM-ASSY,RR BRAKE

41034-1117

$708.12

41035

PANEL-ASSY-BRAKE,RR

41035-1175

$607.59

41048

SHOE,BRAKE

42019-010

$38.07

41050

CAM-BRAKE,RR

41050-1027

$49.44

41053

LEVER-BRAKE CAM.RR

41053-1034

$131.43

41068

AXLE,RR

41068-1180

Unavailable

42036

SLEEVE,RR BRAKE,L=44

42036-1143

$58.83

42041

SPROCKET-HUB,48T,AL

42041-1103

$138.44

42041A

SPROCKET-HUB,45T,AL

42041-1154

Unavailable

42041B

SPROCKET-HUB,46T,AL

42041-1193

$135.87

42041C

SPROCKET-HUB,47T,AL

42041-1258

$138.44

42041D

SPROCKET-HUB,44T,AL

42041-1197

$113.38

92001

BOLT

92001-1578

$8.19

92002

BOLT,8MM

92002-1387

$6.56

92015

NUT,8MM

92015-1143

$0.65

92015A

NUT,20MM

92015-1461

$24.15

92022

WASHER,14X30X0.8

92022-1402

$5.06

92027

COLLAR,L=11.5

92027-1040

Unavailable

92027A

COLLAR,RR AXLE,L=20.5

92027-1828

Unavailable

92027B

COLLAR,L=99

92027-1836

$42.12

92045

BEARING-BALL,6904LU/2A

92045-1136

$40.34

92046

BEARING-NEEDLE,HK1216LL

92046-1009

$18.45

92049

SEAL-OIL,BJNC2 25425

92049-1203

$17.91

92049A

SEAL-OIL,BJN 30374

92049-1205

$18.74

92055

RING-O,31.5X2.6

92055-049

$4.31

92057

DR CHAIN DID520DS5

92057-1178

$212.35

92058

JOINT-CHAIN,DRIVE

92058-1013

Unavailable

92081

SPRING,BRAKE SHOE

92081-1766

$8.03

92081A

SPRING,BRAKE SHOE

92081-1550

$9.49

92081B

SPRING,BRAKE CAM LEV

92081-1770

Unavailable

150

BOLT-WS

150G0622

$2.58

481

CIRCLIP-TYPE-C,37MM

481J3700

$3.04

601

BEARING-BALL,#6004UC3

601B6004U

$37.11

670

O RING,11MM

670B2011

$1.28

670A

O RING,15MM

670B2015

$1.42
