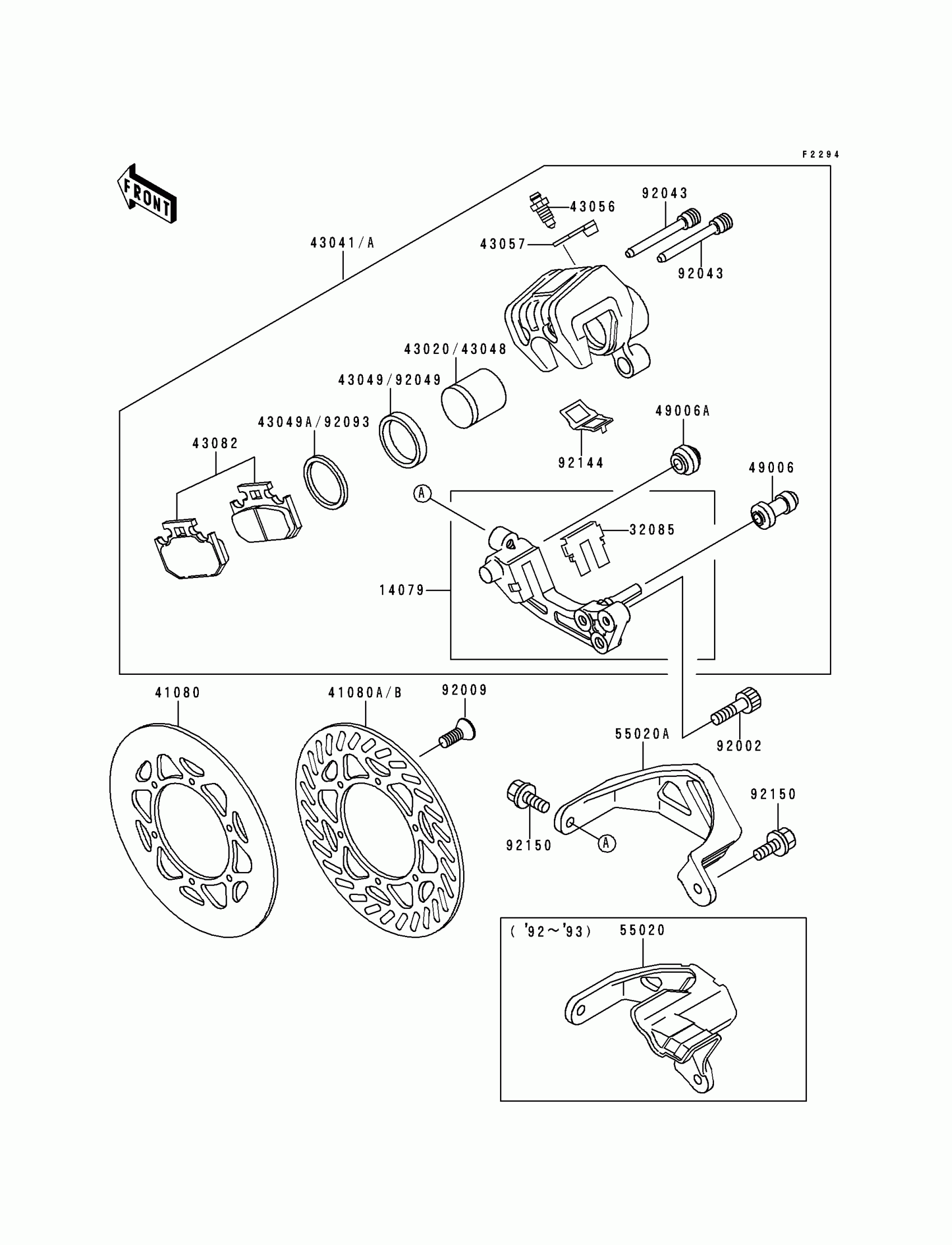

Kawasaki KX500 Rear Brake(KX500-E4/E5/E6/E7) Diagram

Description

Price

14079

HOLDER-ASSY,REAR CALIPER

14079-1070

$166.48

32085

STOPPER,PAD

32085-1315

$10.35

41080

DISC,RR

41080-1245

$336.09

41080B

DISC,RR

41080-1388

$232.35

43041A

CALIPER-ASSY,RR

43041-1532

$396.40

43048

PISTON-CALIPER

43048-1068

$81.86

43049

PACKING,PISTON SEAL

43049-1060

$19.45

43049A

PACKING,PISTON SEAL

43049-1061

$10.56

43056

BREATHER

43056-1055

Unavailable

43057

CAP-BREATHER

43057-1001

$4.91

43082

PAD-ASSY-BRAKE

43082-1137

Unavailable

49006

BOOT,CALIPER

49006-1088

$11.61

49006A

BOOT,CALIPER

49006-1242

$5.46

55020A

GUARD,RR CALIPER,P.WHITE

55020-1488-6F

$34.94

92002

BOLT,SOCKET,8X25

92002-1442

$5.05

92009

SCREW,6X14

92009-1546

$4.80

92043

PIN,HANGER

92043-1416

$18.57

92144

SPRING,PAD

92144-1364

$16.93

92150

BOLT,FLANGED,6X16

92150-1506

$5.00
