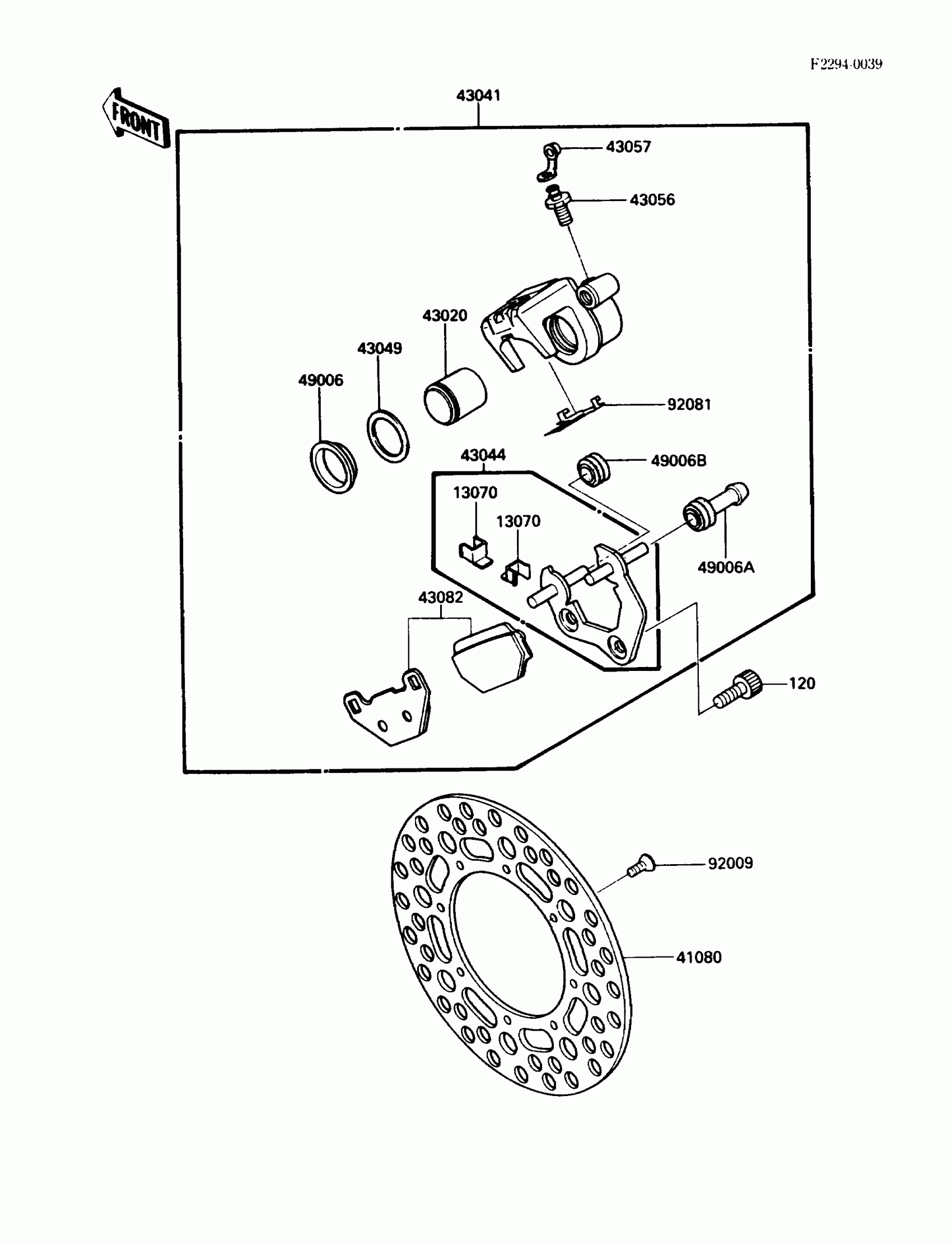

Kawasaki KX500 Rear Brake Diagram

Description

Price

13070

GUIDE,PAD

13070-1175

$4.68

41080

DISC,RR

41080-1187

$212.99

43020

PISTON-COMP-BRAKE

43020-1062

$60.12

43041

CALIPER-ASSY,RR

43041-1244

$555.82

43044

HOLDER-COMP-CALIPER,RR

43044-1070

$159.50

43049

PACKING

43049-1016

$10.39

43056

BREATHER

43056-003

$24.57

43057

CAP-BREATHER

43057-003

$2.45

43082

PAD-ASSY-BRAKE

43082-1073

$53.35

49006

BOOT,PISTON SEAL

49006-1053

$21.93

49006A

BOOT,CALIPER

49006-1054

$11.61

49006B

BOOT,CALIPER

49006-1055

$7.27

92009

SCREW,6X10

92009-1375

$3.92

92081

SPRING,PAD

92081-1341

$14.76

120

BOLT-SOCKET,8X20

120P0820

$4.15
