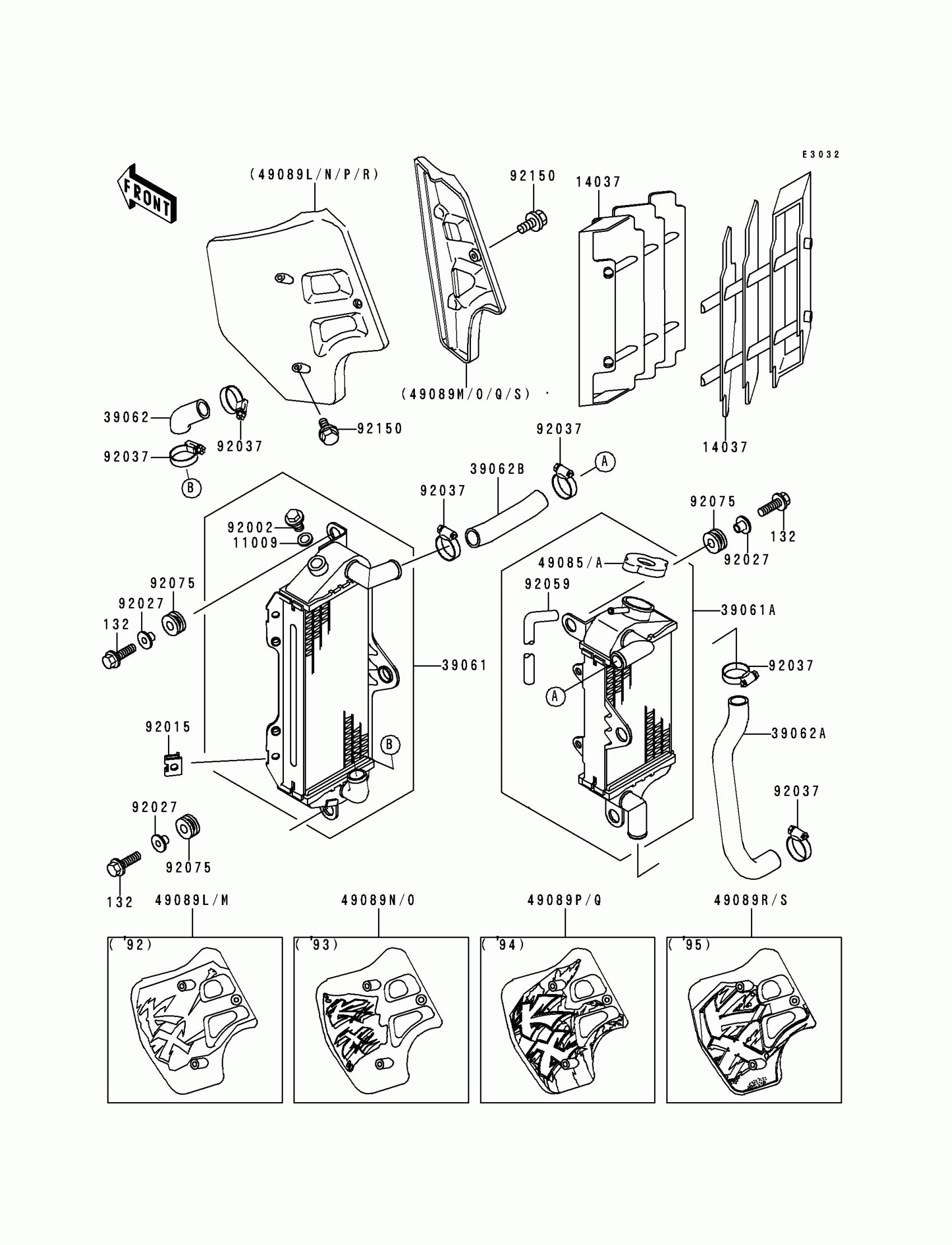

Kawasaki KX500 Radiator(KX500-E4/E5/E6/E7) Diagram

Description

Price

132

BOLT-FLANGED-SMALL

132G0620

$2.33

11009

GASKET,DRAIN BOLT

11009-1152

$7.55

14037

SCREEN,L.GREEN

14037-1099-6W

$27.83

39061

RADIATOR-ASSY

39061-1112

$435.27

39061A

RADIATOR-ASSY

39061-1113

$435.27

39062

HOSE-COOLING,RADIATOR,LH

39062-1138

$13.06

39062A

HOSE-COOLING,RADIATOR,RH-PUMP

39062-1209

$36.44

39062B

HOSE-COOLING,RADIATOR LH-RH

39062-1274

$25.59

49085

CAP-ASSY-PRESSURE,P=1.6

49085-1059

$52.95

49085A

CAP-ASSY-PRESSURE

49085-1066

$37.42

49089R

SHROUD-ENGINE,LH,L.GREEN

49089-5229-6W

$107.84

49089S

SHROUD-ENGINE,RH,L.GREEN

49089-5230-6W

$107.84

92002

BOLT,RADIATOR DRAIN

92002-1682

$20.51

92015

NUT

92015-1487

$4.80

92027

COLLAR

92027-194

$5.52

92037

CLAMP,COOLING HOSE

92037-1589

$18.57

92059

TUBE,5X9X800

92059-1383

$9.64

92075

DAMPER RUBBER,RR FENR

92075-209

$4.69

92150

BOLT,6X14

92150-1340

$5.07
