Description

Price

11060

GASKET,EXHAUST PIPE

11009-1949

$11.49

18002

BODY-COMP-MUFFLER

18002-1862

Unavailable

18046B

WOOL,L=158

18046-1113

$111.86

18046C

WOOL,L=200

18046-1114

$111.86

49069A

MUFFLER-ASSY

49069-1120

$311.96

49099A

BAFFLE-PIPE MUFFLER

49099-1285

Unavailable

92015

NUT,FLANGED,6MM

92015-1078

Unavailable

92022

WASHER,6.5X22X1.6

92022-237

$3.92

92027

COLLAR,6.8X10X11.5

92027-1210

$10.28

92055

RING-O,BAFFLE PIPE

92055-1445

$10.35

92075

DAMPER

92075-1598

$8.58

92075A

DAMPER,MUFFLER FITTING

92075-1857

$5.96

92075B

DAMPER,MUFFLER

92075-1891

$32.39

92093

SEAL

92093-1279

$47.37

92144

SPRING

92144-1035

$10.53

92150

BOLT,6X14

92150-1340

$5.07

130

BOLT-FLANGED,5X8

130G0508

$1.85

132A

BOLT-FLANGED-SMALL,6X30

132G0630

$2.48

671

O RING,50MM

671E2550

$15.34

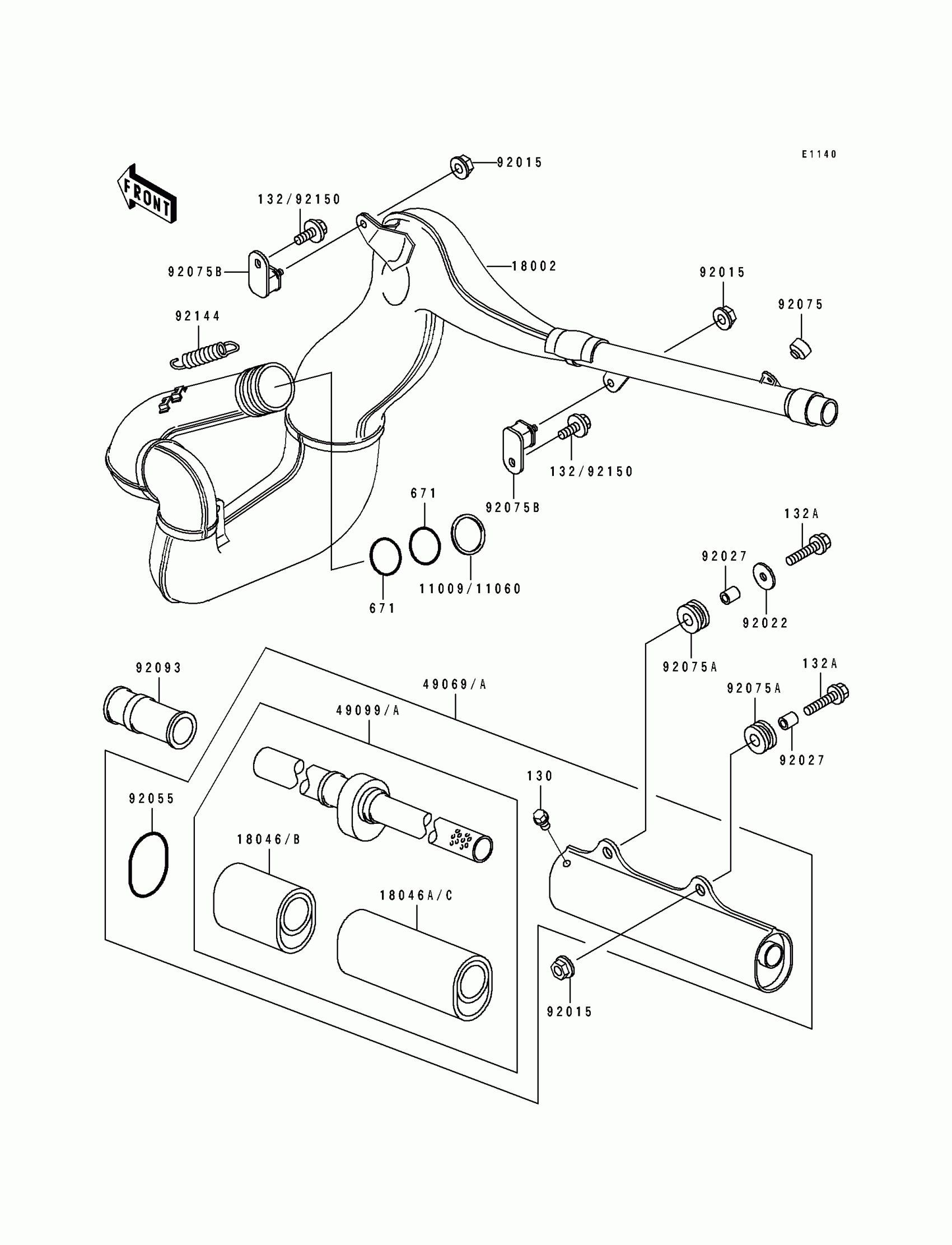

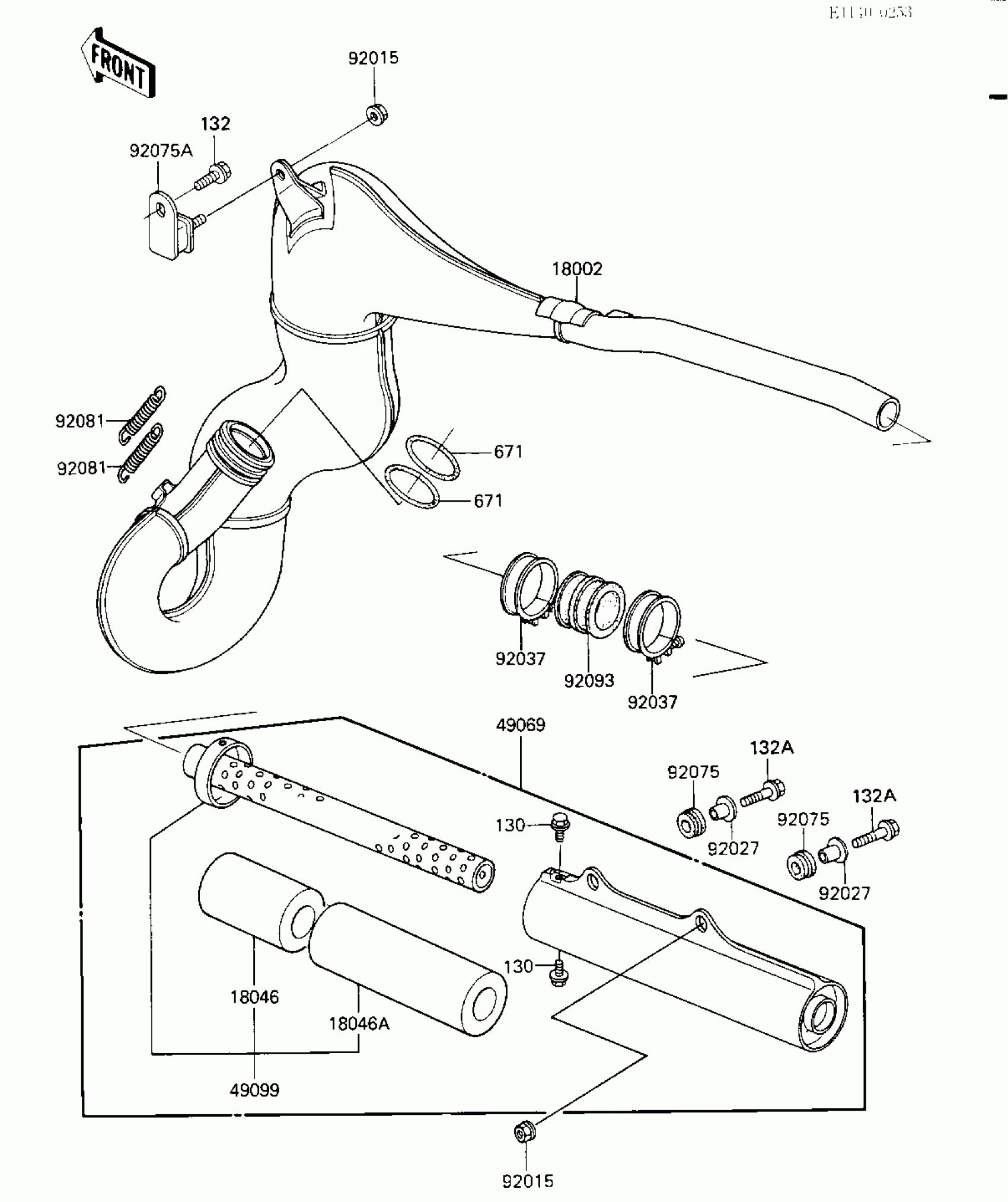

Kawasaki KX500 Muffler Diagram

GASKET,EXHAUST PIPE

BODY-COMP-MUFFLER

WOOL,L=158

WOOL,L=200

MUFFLER-ASSY

BAFFLE-PIPE MUFFLER

NUT,FLANGED,6MM

WASHER,6.5X22X1.6

COLLAR,6.8X10X11.5

RING-O,BAFFLE PIPE

DAMPER

DAMPER,MUFFLER FITTING

DAMPER,MUFFLER

SEAL

SPRING

BOLT,6X14

BOLT-FLANGED,5X8

BOLT-FLANGED-SMALL,6X30

O RING,50MM
