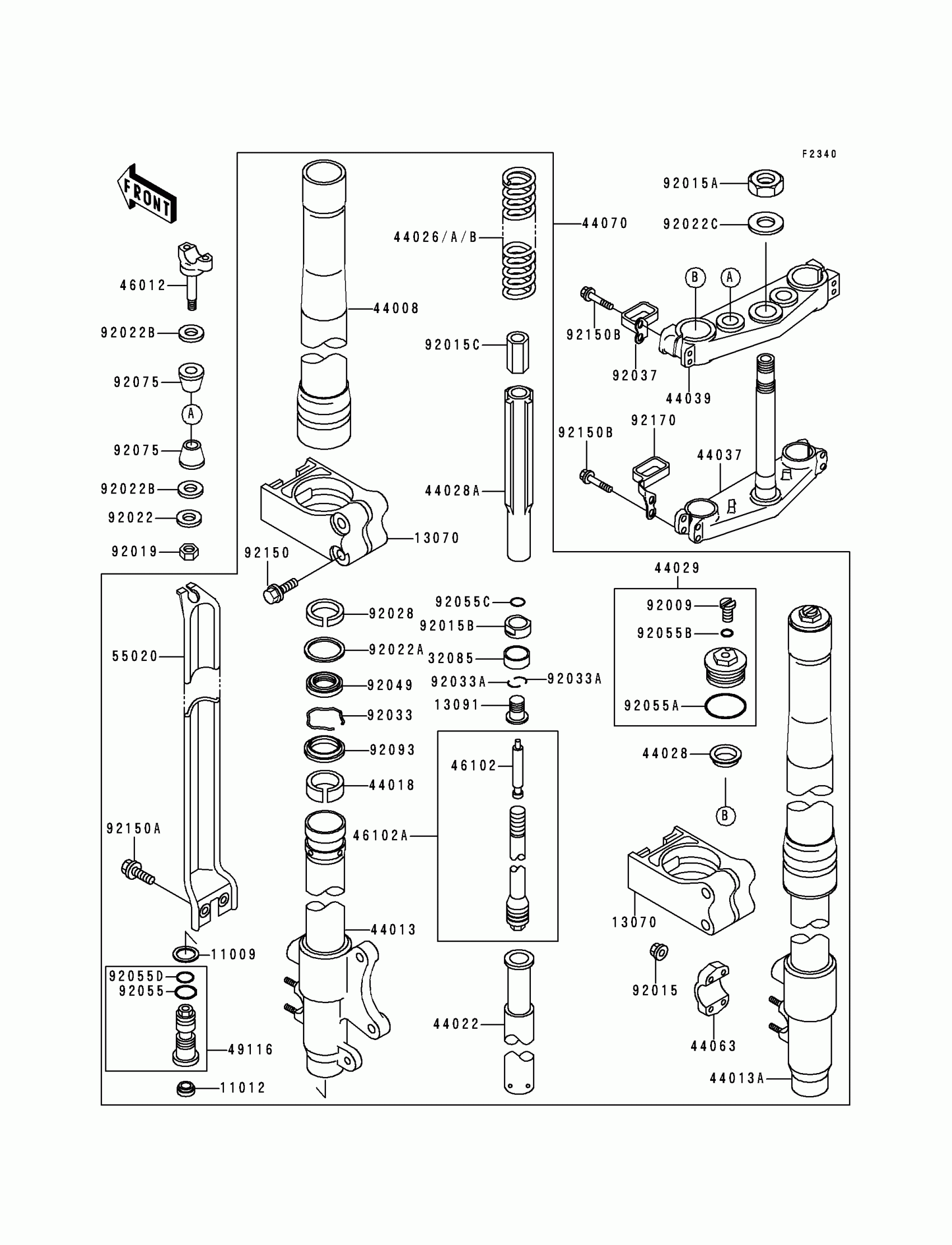

Kawasaki KX500 Front Fork(KX500-E4/E5) Diagram

#

Description
Price

11009

GASKET

11009-1791

Unavailable

11012

CAP

11012-1692

$6.16

13070

GUIDE,PROTECTOR

13070-1204

Unavailable

13091

HOLDER

13091-1651

$28.70

32085

STOPPER

32085-1323

$20.04

44008

PIPE-FORK OUTER

44008-1012

$877.32

44013

PIPE-FORK INNER,LH

44013-1340

Unavailable

44013A

PIPE-FORK INNER,RH

44013-1341

Unavailable

44018

PISTON-FORK,INNER PIPE

44018-1056

$28.45

44022

CYLINDER-FORK

44022-1264

$230.31

44026

SPRING-FRONT FORK,K=0.39

44026-1486

$92.22

44026A

SPRING-FRONT FORK,K=0.38

44026-1489

$88.69

44026B

SPRING-FRONT FORK,K=0.40

44026-1491

$92.22

44028

GUIDE-FORK SPRING

44028-1081

$12.12

44028A

GUIDE-FORK SPRING

44028-1087

$70.86

44029

SEAT-FORK SPRING

44029-1148

Unavailable

44037

HOLDER-FORK UNDER

44037-1280

$638.00

44039

HOLDER-FORK UPPER

44039-1212

$265.16

44063

HOLDER-FRONT AXLE

44063-1056

$55.31

44070

DAMPER-ASSY,FORK

44070-5129

$1,918.77

46012

HOLDER-HANDLE,LWR

46012-1192

Unavailable

46102

ROD,FORK

46102-1303

Unavailable

46102A

ROD,FORK

46102-1307

Unavailable

49116

VALVE-ASSY,FORK

49116-1093

Unavailable

55020

GUARD,FORK

55020-1384

Unavailable

92009

SCREW

92009-1568

$7.21

92015

NUT,FLANGED,6MM

92015-1078

Unavailable

92015A

NUT,STEERING STEM,22MM

92015-1653

$16.69

92015B

NUT

92015-1805

$25.20

92015C

NUT

92015-1872

$28.97

92019

NUT,LOCK,10MM

92019-021

$6.11

92022

WASHER,10.2X28X2

92022-1088

$4.69

92022A

WASHER

92022-1299

$8.58

92022B

WASHER

92022-1737

$5.52

92022C

WASHER,STEERING STEM

92022-1873

$7.45

92028

BUSHING

92028-1581

$21.80

92033

RING-SNAP

92033-1077

$4.96

92033A

RING-SNAP

92033-1271

$6.87

92037

CLAMP

92037-1627

$27.70

92049

SEAL-OIL

92049-1373

$28.98

92055

RING-O,FORK

92055-1062

$4.69

92055A

RING-O,FORK,AIR TUBE

92055-1333

$6.00

92055B

RING-O,2.8X6.6X1.9

92055-1441

$4.33

92055C

RING-O

92055-1442

$9.21

92055D

RING-O,FORK VALVE

92055-1513

$3.95

92075

DAMPER

92075-1776

$8.76

92093

SEAL,FORK OUTER TUBE

92093-1315

$18.72

92150

BOLT,5X35

92150-1270

$5.84

92150A

BOLT,6X14

92150-1340

$5.07

92150B

BOLT,FLANGED,8X40

92150-1516

$14.15

92170

CLAMP

92170-1088

$27.70
