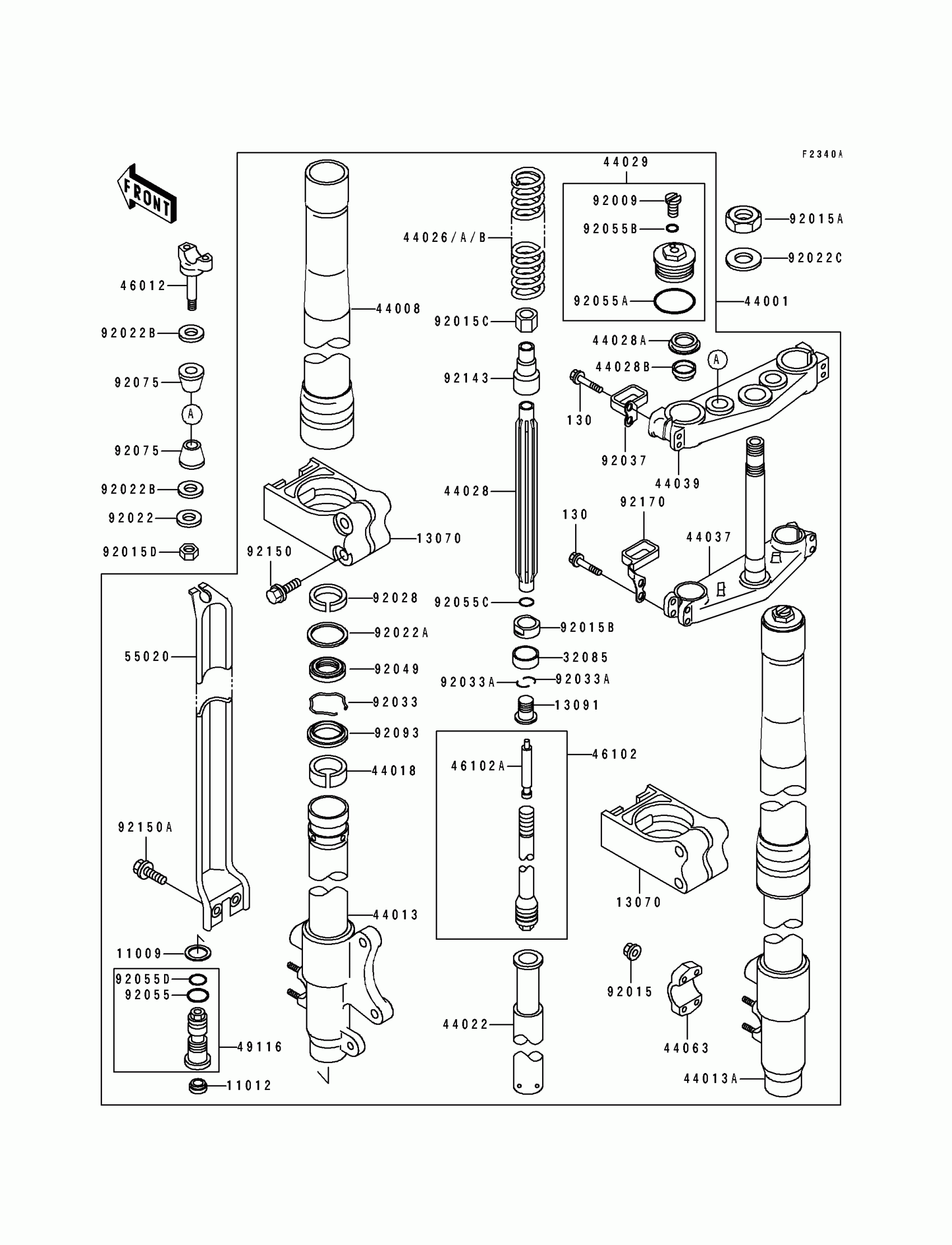

Kawasaki KX500 Front Fork(KX500-E2) Diagram

#

Description
Price

11009

GASKET

11009-1791

Unavailable

11012

CAP

11012-1692

$6.16

13070

GUIDE,PROTECTOR

13070-1204

Unavailable

13091

HOLDER

13091-1651

$28.70

32085

STOPPER

32085-1323

$20.04

44001

FORK-FRONT

44001-1767

$1,829.55

44008

PIPE-FORK OUTER

44008-1006

$617.46

44013

PIPE-FORK INNER,LH

44013-1307

$582.42

44013A

PIPE-FORK INNER,RH

44013-1308

$582.42

44018

PISTON-FORK

44018-1054

$47.03

44022

CYLINDER-FORK

44022-1248

$163.53

44026

SPRING-FRONT FORK,K=0.39

44026-1444

$51.74

44026A

SPRING-FRONT FORK,K=0.38

44026-1453

Unavailable

44026B

SPRING-FRONT FORK,K=0.40

44026-1455

$98.13

44028

GUIDE-FORK SPRING

44028-1069

$86.67

44028A

GUIDE-FORK SPRING

44028-1070

$7.33

44028B

GUIDE-FORK SPRING

44028-1071

$10.19

44029

SEAT-FORK SPRING

44029-1141

$115.93

44037

HOLDER-FORK UNDER

44037-1263

$661.36

44039

HOLDER-FORK UPPER

44039-1190

Unavailable

44063

HOLDER-FRONT AXLE

44063-1056

$55.31

46012

HOLDER-HANDLE,LWR

46012-1192

Unavailable

46102

ROD,FORK

46102-1290

$434.18

46102A

ROD,FORK

46102-1303

Unavailable

49116

VALVE-ASSY

49116-1088

$122.97

55020

GUARD,FORK

55020-1384

Unavailable

92009

SCREW

92009-1568

$7.21

92015

NUT,FLANGED,6MM

92015-1078

Unavailable

92015A

NUT,STEERING STEM,22MM

92015-1653

$16.69

92015B

NUT

92015-1805

$25.20

92015C

NUT

92015-1806

Unavailable

92015D

NUT,LOCK,10MM

92019-021

$6.11

92022

WASHER,10.2X28X2

92022-1088

$4.69

92022A

WASHER,FORK OUTER TUBE

92022-1298

$8.58

92022B

WASHER

92022-1737

$5.52

92022C

WASHER,STEERING STEM

92022-1873

$7.45

92028

BUSHING

92028-1566

$30.47

92033

RING-SNAP

92033-1036

$6.51

92033A

RING-SNAP

92033-1271

$6.87

92037

CLAMP

92037-1628

$19.52

92049

SEAL-OIL

92049-1338

$19.34

92055

RING-O,FORK

92055-1062

$4.69

92055A

RING-O

92055-1115

$10.14

92055B

RING-O,2.8X6.6X1.9

92055-1441

$4.33

92055C

RING-O

92055-1442

$9.21

92055D

RING-O,FORK VALVE

92055-1513

$3.95

92075

DAMPER

92075-1776

$8.76

92093

SEAL,FORK OUTER TUBE

92093-1305

$33.88

92143

COLLAR,FORK

92143-1374

Unavailable

92150

BOLT,5X35

92150-1270

$5.84

92150A

BOLT,6X14

92150-1340

$5.07

92170

CLAMP

92170-1088

$27.70

130

BOLT-FLANGED,8X40

130G0840

$1.92
