Description

Price

14024

COVER,DISK,P.WHITE

14024-1859-6F

Unavailable

14079A

HOLDER-ASSY,FRONT CALIPER

14079-1072

Unavailable

32085

STOPPER,PAD

32085-1314

Unavailable

41080B

DISC,FR

41080-1293

$309.63

43041B

CALIPER-ASSY,FR,LH

43041-1427

$416.91

43048

PISTON-CALIPER

43048-1057

Unavailable

43048A

PISTON-CALIPER

43048-1064

$67.26

43049

PACKING,PISTON SEAL

43049-1060

$19.45

43049A

PACKING,PISTON SEAL

43049-1061

$10.56

43056A

BREATHER

43056-1055

Unavailable

43057

CAP-BREATHER

43057-1001

$4.91

43082

PAD-ASSY-BRAKE

43082-1089

Unavailable

43082A

PAD-ASSY-BRAKE

43082-1117

$72.94

43082B

PAD-ASSY-BRAKE

43082-1129

$46.67

49006

BOOT,CALIPER

49006-1088

$11.61

49006A

BOOT,CALIPER

49006-1242

$5.46

92009

SCREW,6X14

92009-1546

$4.80

92143

COLLAR

92143-1196

$4.69

92144

SPRING,PAD

92144-1319

$7.77

92150

BOLT

92150-1144

$9.91

92150A

BOLT,6X14

92150-1340

$5.07

120A

BOLT-SOCKET,8X40

120P0840

$2.62

184

BOLT-UPSET-WP-SMALL

184B0812

Unavailable

410

WASHER PLAIN 8MM

410B0800

$0.93

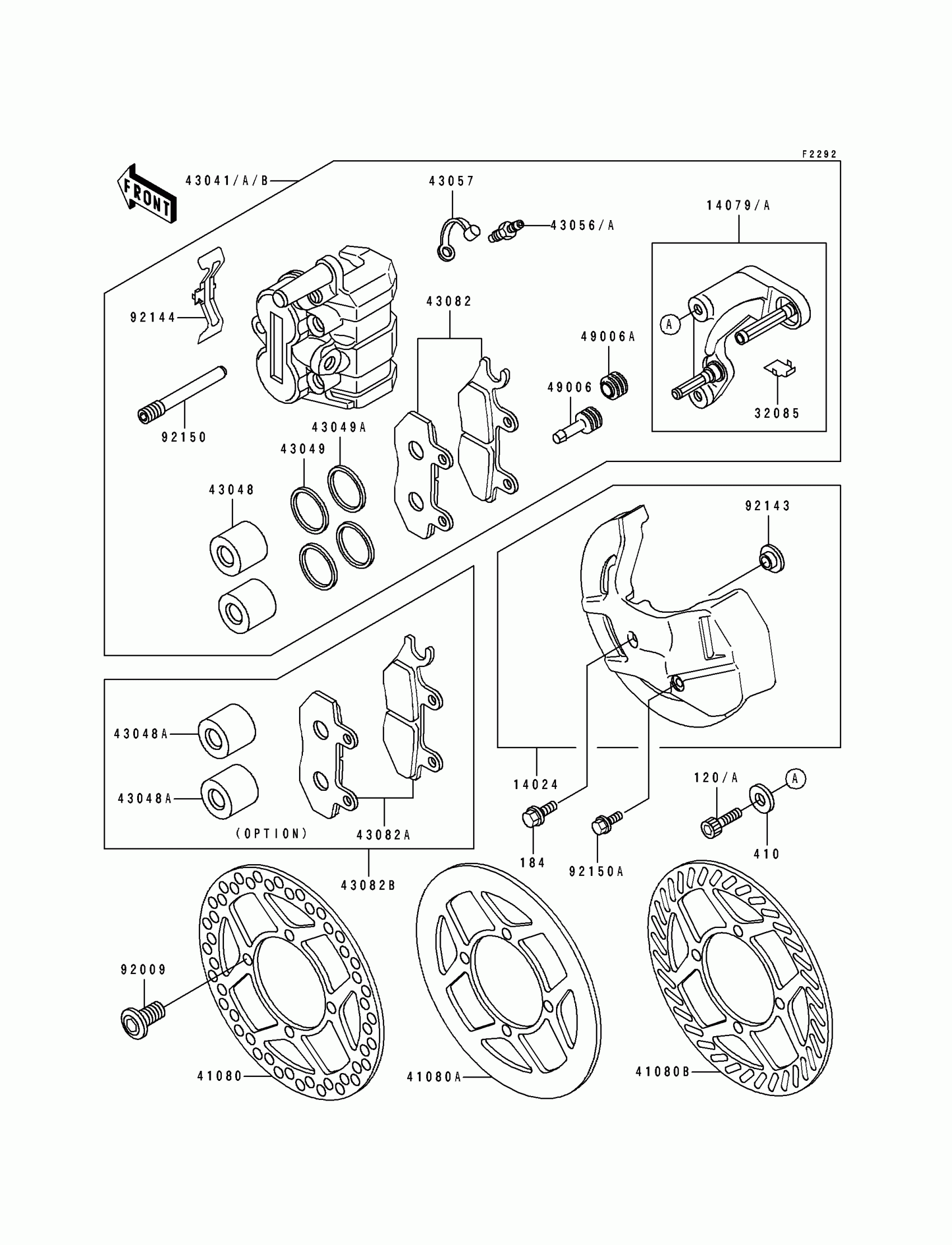

Kawasaki KX500 Front Caliper Diagram

COVER,DISK,P.WHITE

HOLDER-ASSY,FRONT CALIPER

STOPPER,PAD

DISC,FR

CALIPER-ASSY,FR,LH

PISTON-CALIPER

PISTON-CALIPER

PACKING,PISTON SEAL

PACKING,PISTON SEAL

BREATHER

CAP-BREATHER

PAD-ASSY-BRAKE

PAD-ASSY-BRAKE

PAD-ASSY-BRAKE

BOOT,CALIPER

BOOT,CALIPER

SCREW,6X14

COLLAR

SPRING,PAD

BOLT

BOLT,6X14

BOLT-SOCKET,8X40

BOLT-UPSET-WP-SMALL

WASHER PLAIN 8MM
