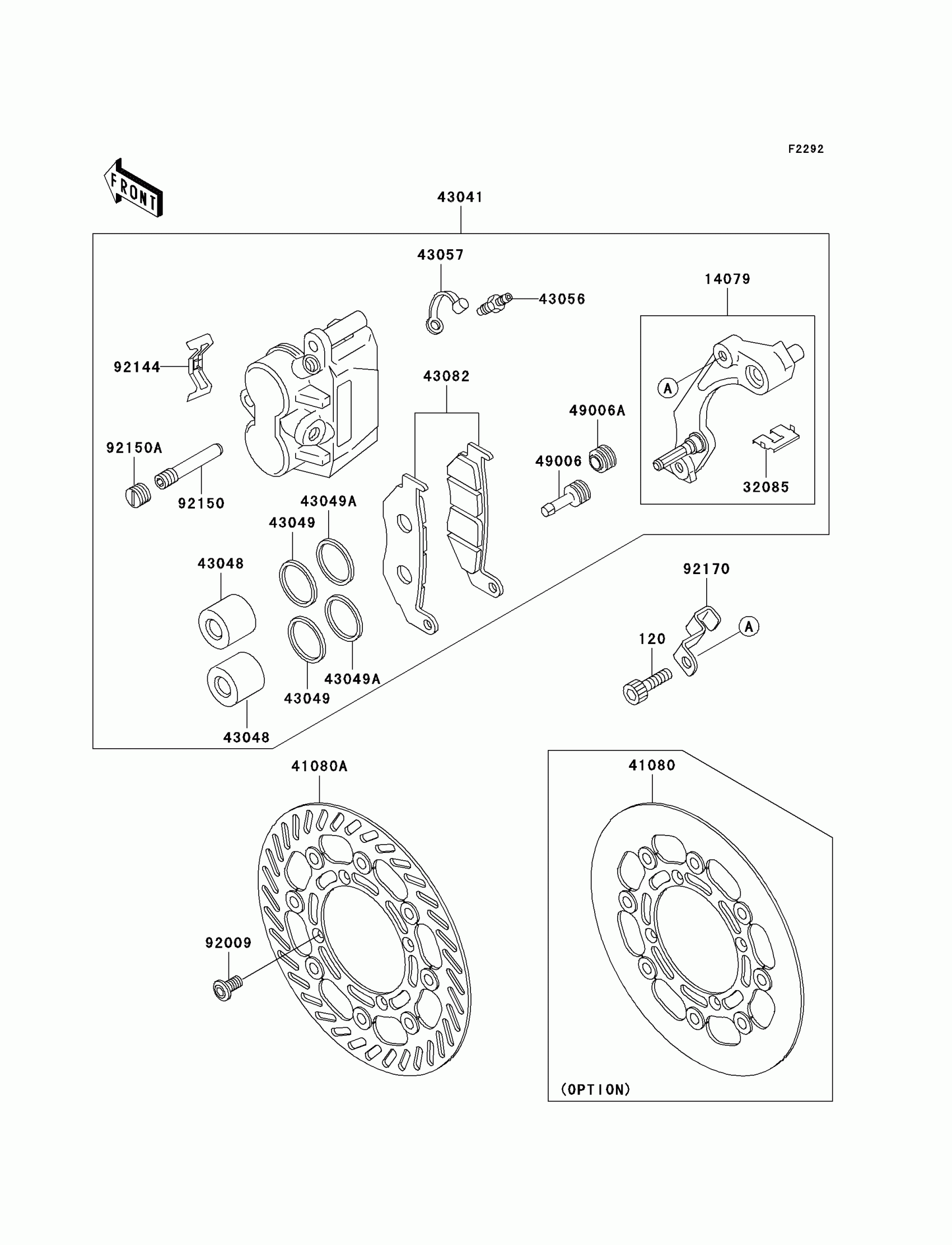

Kawasaki KX500 Front Brake(KX500-E15) Diagram

Description

Price

120

BOLT-SOCKET,8X40

120P0840

$2.62

14079

HOLDER-ASSY,FRONT CALIPER

14079-1097

$166.48

32085

STOPPER,PAD

32085-1361

$7.98

41080

DISC,FR

41080-1365

Unavailable

41080A

DISC,FR

41080-1387

$336.09

43041

CALIPER-ASSY,FR,LH

43041-1576

$387.31

43048

PISTON-CALIPER

43048-1064

$67.26

43049

PACKING,PISTON SEAL

43049-1060

$19.45

43049A

PACKING,PISTON SEAL

43049-1061

$10.56

43056

BREATHER

43056-1055

Unavailable

43057

CAP-BREATHER

43057-1001

$4.91

43082

PAD-ASSY-BRAKE

43082-1172

$46.92

49006

BOOT,CALIPER

49006-1088

$11.61

49006A

BOOT,CALIPER

49006-1242

$5.46

92009

SCREW,6X14

92009-1546

$4.80

92144

SPRING,PAD

92144-1721

$9.82

92150

BOLT,HANGER

92150-1691

$11.99

92150A

BOLT,PLUG

92150-1692

$7.84

92170

CLAMP,HOSE

92170-1404

Unavailable
