Description

Price

11012

CAP,UNI-TRAK

11012-1211

Unavailable

32029

BRACKET-ENGINE,FR

32029-1203

$25.72

32029A

BRACKET-ENGINE,UPP,LH

32029-1204

Unavailable

32029B

BRACKET-ENGINE,UPP,RH

32029-1205

Unavailable

32037A

BRACKET-SHOCKABSORBER

32037-1231

Unavailable

92001

BOLT,8X57

92001-1493

Unavailable

92001A

BOLT,FLANGED,8X95

92001-1689

Unavailable

92001B

BOLT,FLANGED,8X160

92001-1690

Unavailable

92001C

BOLT,FLANGED,8X25

92001-1691

Unavailable

92015

NUT,8MM

92015-1143

$0.65

92015A

NUT,FLANGED,10MM

92015-1415

$4.69

92022

WASHER,8.5X26X1.6

92022-092

$4.31

92027

COLLAR,CHAIN ROLLER

92027-1670

$7.34

92037

CLAMP,CABLE

92037-1148

Unavailable

92037A

CLAMP,RESERVE TANK,UP

92037-1375

Unavailable

92072

BAND,L=123

92072-030

$5.00

92072A

BAND,L=149

92072-031

$5.00

92072B

BAND,L=218

92072-032

$5.00

92075

DAMPER,RESERVE TANK,U

92075-1431

Unavailable

92075A

DAMPER,RESERVE TANK,L

92075-1432

Unavailable

92122

ROLLER,CHAIN GUIDE

92122-1104

Unavailable

130

BOLT-FLANGED,8X50

130G0850

$2.19

130A

BOLT-FLANGED,10X20

130P1020

$2.09

220

SCREW PAN HEAD 6X12

220B0612

Unavailable

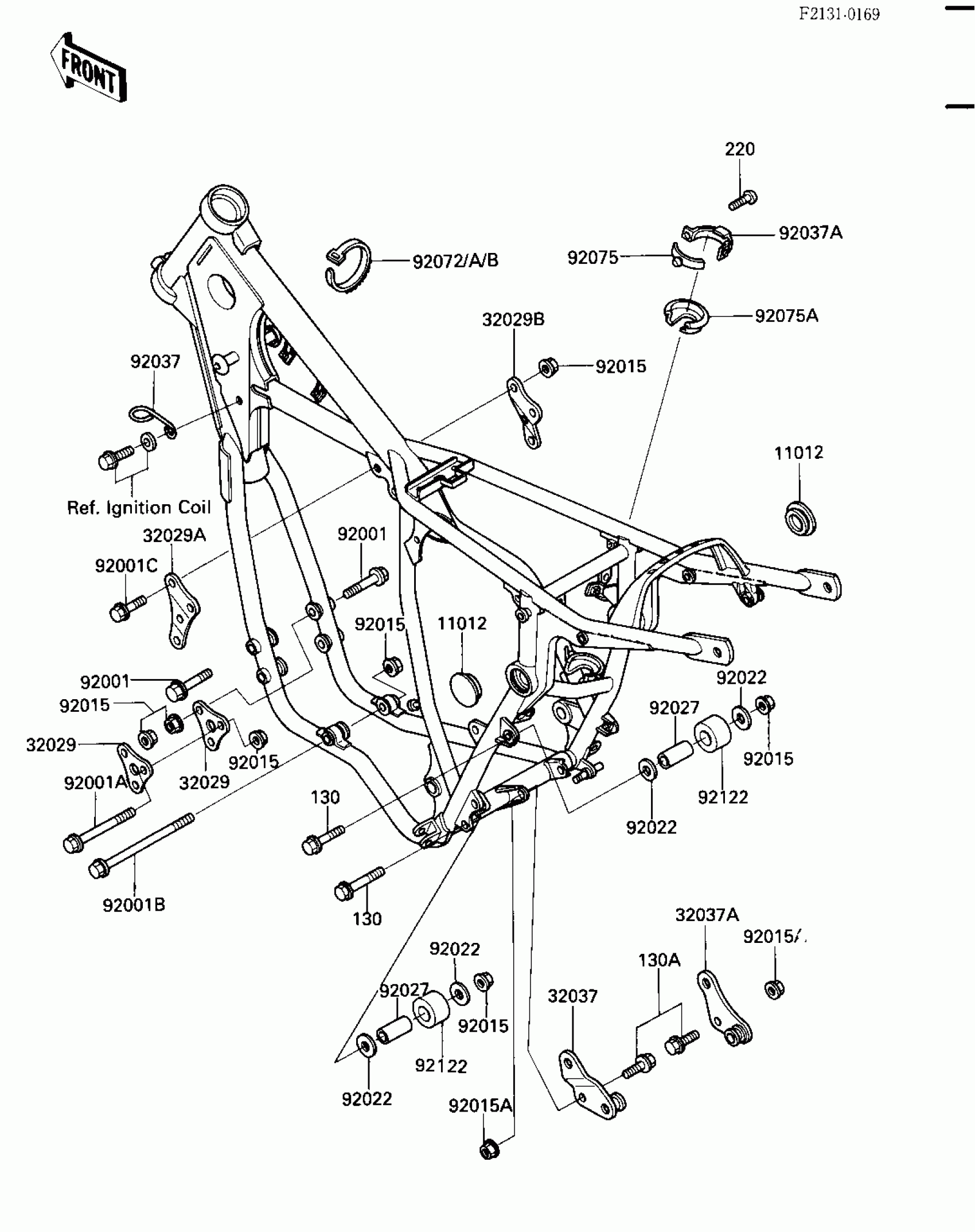

Kawasaki KX500 FRAME FITTINGS ('84 A2) Diagram

CAP,UNI-TRAK

BRACKET-ENGINE,FR

BRACKET-ENGINE,UPP,LH

BRACKET-ENGINE,UPP,RH

BRACKET-SHOCKABSORBER

BOLT,8X57

BOLT,FLANGED,8X95

BOLT,FLANGED,8X160

BOLT,FLANGED,8X25

NUT,8MM

NUT,FLANGED,10MM

WASHER,8.5X26X1.6

COLLAR,CHAIN ROLLER

CLAMP,CABLE

CLAMP,RESERVE TANK,UP

BAND,L=123

BAND,L=149

BAND,L=218

DAMPER,RESERVE TANK,U

DAMPER,RESERVE TANK,L

ROLLER,CHAIN GUIDE

BOLT-FLANGED,8X50

BOLT-FLANGED,10X20

SCREW PAN HEAD 6X12
