Description

Price

14024

COVER,AIR FILTER

14024-1561

$16.50

32029

BRACKET-ENGINE

32029-1639

$25.18

32029A

BRACKET-ENGINE

32029-1652

$25.18

32037B

BRACKET-SHOCKABSORBER,LH

32037-1532

$54.07

32037C

BRACKET-SHOCKABSORBER,RH

32037-1533

$49.33

92001

BOLT,FLANGED,10X92

92001-1701

$9.43

92002

BOLT,FLANGED,10X105

92002-1491

$11.60

92002A

BOLT,FLANGED,8X47

92002-1850

$5.52

92015

NUT,8MM

92015-1143

$0.65

92015A

NUT,FLANGED,10MM

92015-1502

$10.28

92022

WASHER,8.5X22X1.5

92022-1629

$6.15

92027

COLLAR,CHAIN ROLLER

92027-1670

$7.34

92072

BAND,L=218

92072-032

$5.00

92122

ROLLER,CHAIN GUIDE

92122-1153

$10.65

92150

BOLT,FLANGED,10X50

92150-1125

$7.34

92150B

BOLT,FLANGED,12X27

92150-1359

$7.84

92180

SHIM,12.5X24X0.5

92180-1060

$3.92

130

BOLT-FLANGED,8X40

130G0840

$1.92

130A

BOLT-FLANGED,8X70

130G0870

Unavailable

130B

BOLT-FLANGED

130P0825

$1.42

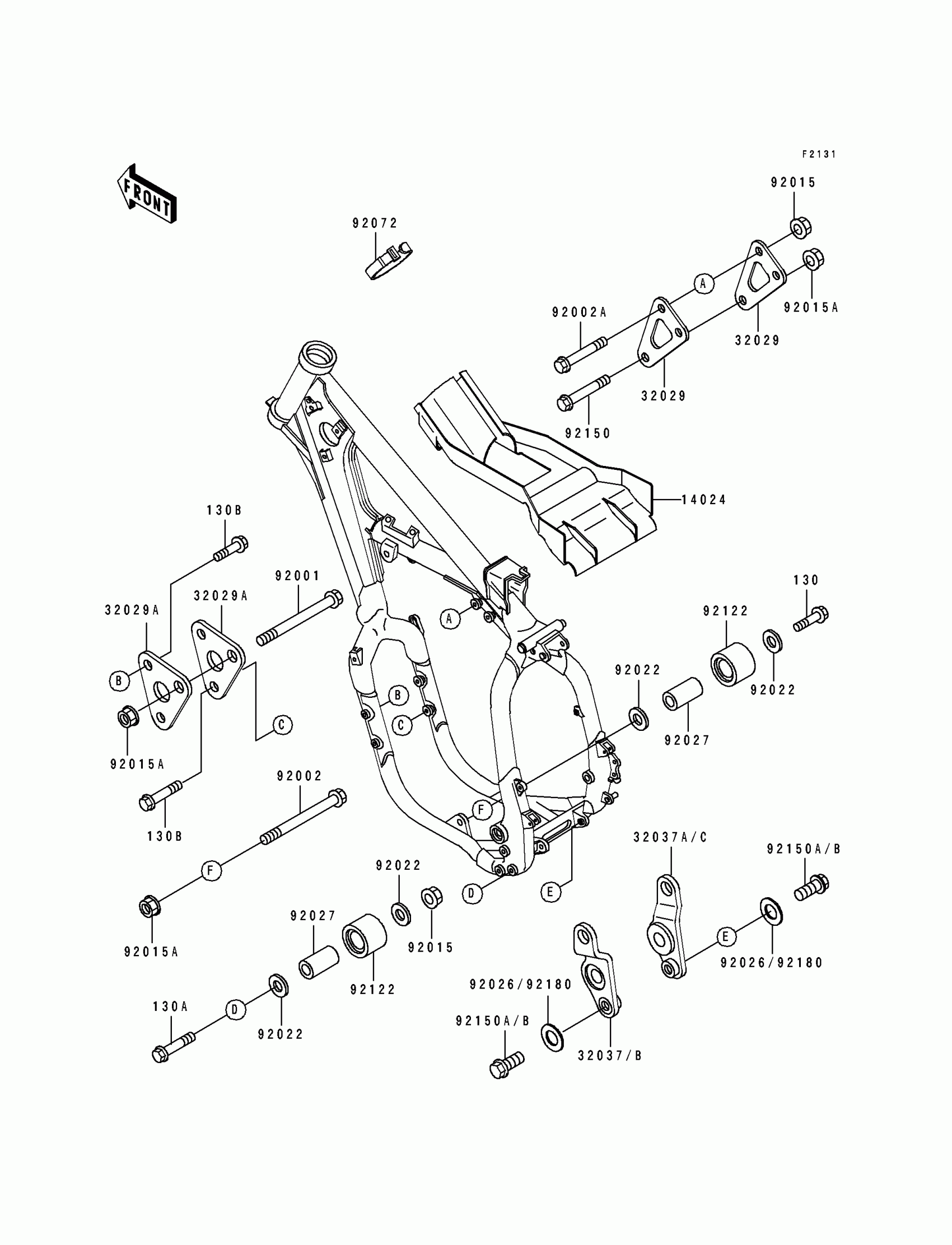

Kawasaki KX500 Frame Fitting Diagram

COVER,AIR FILTER

BRACKET-ENGINE

BRACKET-ENGINE

BRACKET-SHOCKABSORBER,LH

BRACKET-SHOCKABSORBER,RH

BOLT,FLANGED,10X92

BOLT,FLANGED,10X105

BOLT,FLANGED,8X47

NUT,8MM

NUT,FLANGED,10MM

WASHER,8.5X22X1.5

COLLAR,CHAIN ROLLER

BAND,L=218

ROLLER,CHAIN GUIDE

BOLT,FLANGED,10X50

BOLT,FLANGED,12X27

SHIM,12.5X24X0.5

BOLT-FLANGED,8X40

BOLT-FLANGED,8X70

BOLT-FLANGED
