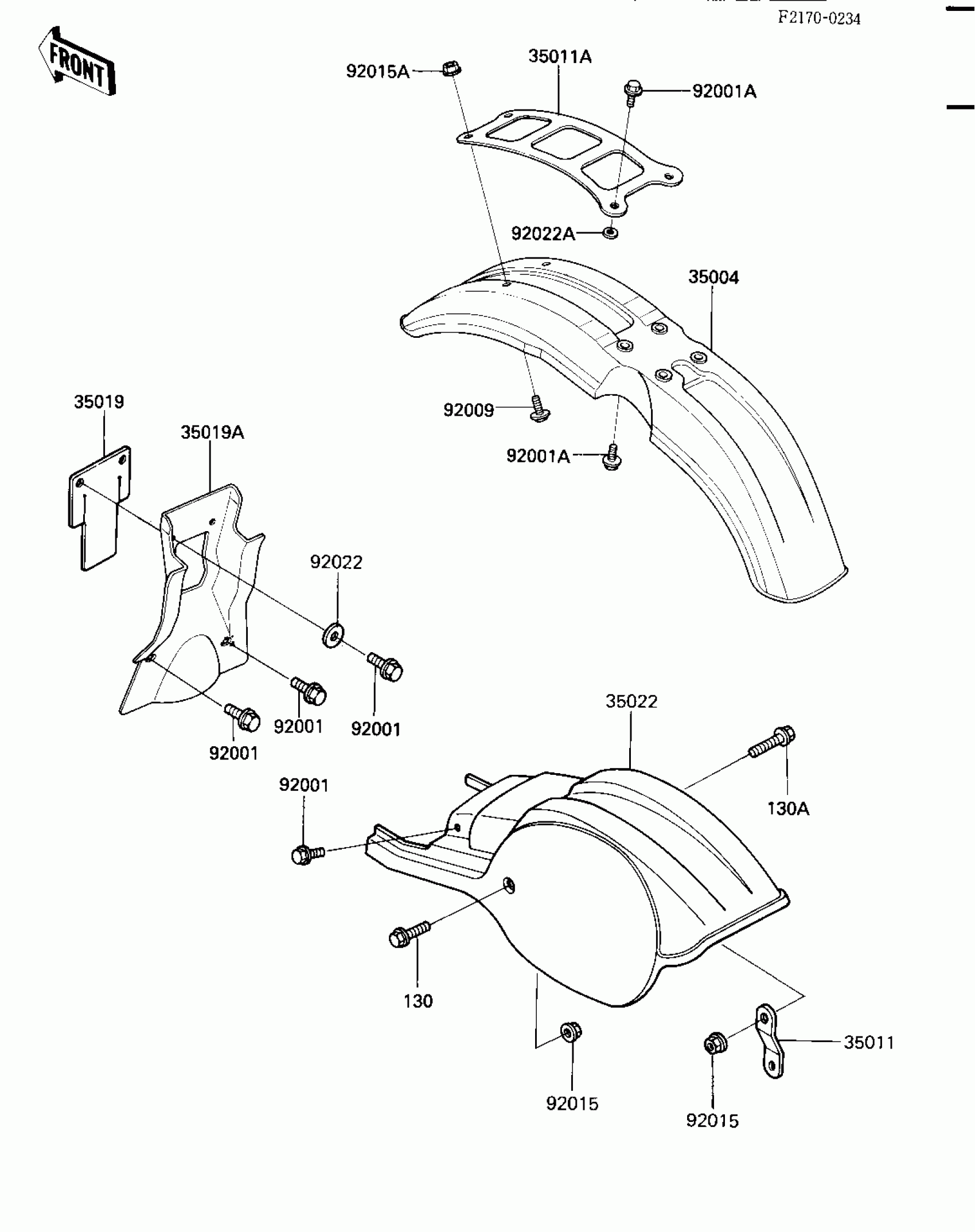

Kawasaki KX500 FENDERS ('84 A2) Diagram

Description

Price

35004

FENDER-FRONT,L.GREEN

35004-1157-6W

$52.70

35011

STAY,MUFFLER

35011-1154

Unavailable

35011A

STAY,FRONT FENDER

35011-1216

Unavailable

35019

FLAP,FENDER,RR

35019-1056

Unavailable

35019A

FLAP,FENDER,RR

35019-1111

Unavailable

35022

FENDER-COMP-REAR,L.GR

35022-1204-AE

Unavailable

92001

BOLT,6X14

92001-1926

$3.92

92001A

BOLT,6X16

92001-1927

$4.49

92009

SCREW,6X14,WHITE

92009-1287

$2.55

92015

NUT,FLANGED,6MM

92015-1078

Unavailable

92015A

NUT,LOCK,6MM

92019-008

$4.26

92022

WASHER,6.5X16X1.0

92022-1093

$2.08

92022A

WASHER,6.5X20X1.6

92022-125

$1.40

130

BOLT,FLANGED,6X25

130G0625

$1.17

130A

BOLT-FLANGED,6X30

130G0630

$1.42
