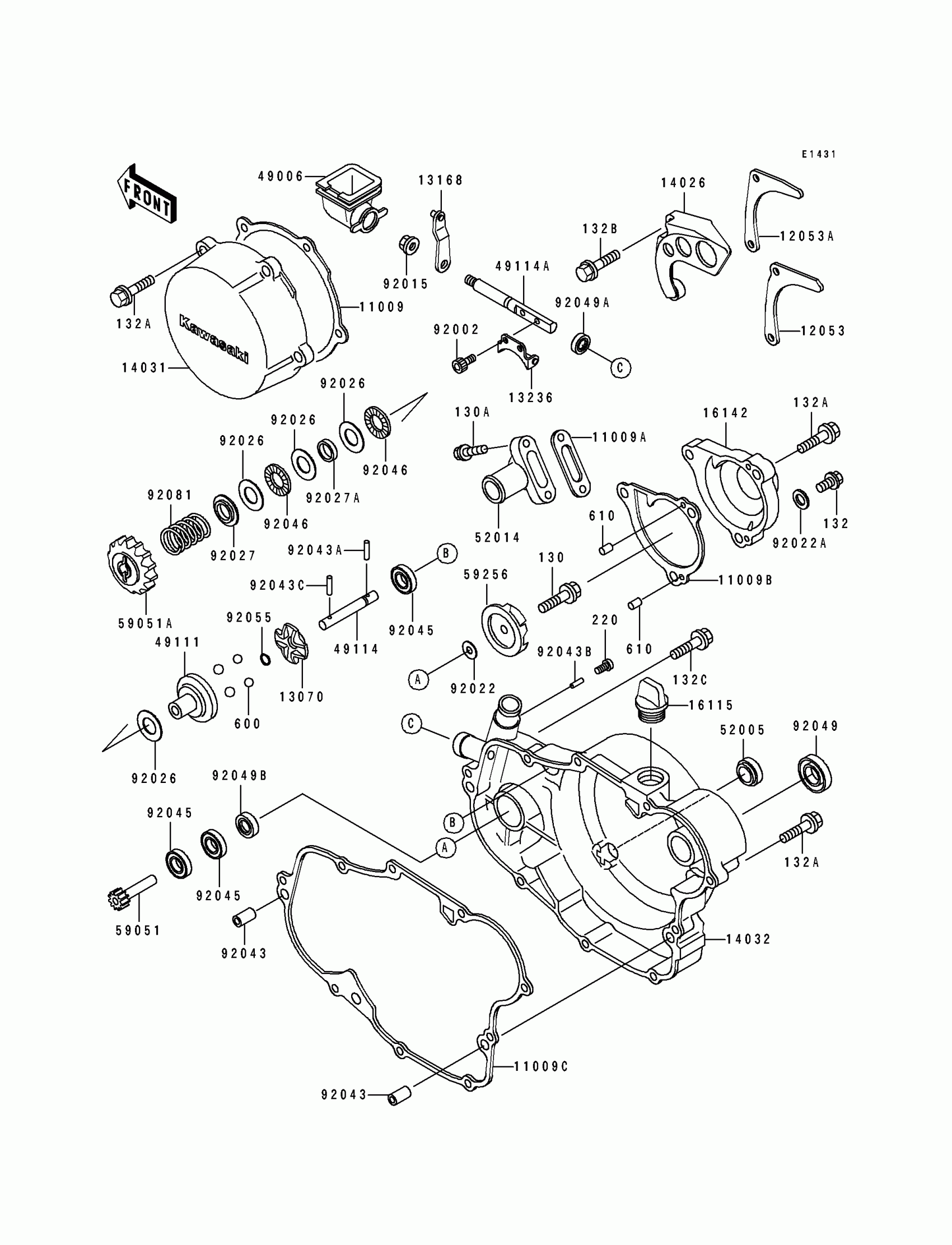

Kawasaki KX500 Engine Cover Diagram

#

Description
Price

11009

GASKET,GENERATOR COVER

11009-1289

Unavailable

11009A

GASKET,ELBOW

11009-1446

Unavailable

11009B

GASKET,WATER PUMP COVER

11009-1466

Unavailable

11009C

GASKET,CLUTCH COVER

11009-1540

Unavailable

12053

GUIDE-CHAIN

12053-1172

$13.90

12053A

GUIDE-CHAIN

12053-1206

Unavailable

13070

GUIDE

13070-1122

$79.07

13168

LEVER,GOVERNOR

13168-1401

Unavailable

13236

LEVER-COMP,GOVERNOR

13236-1182

Unavailable

14026

COVER-CHAIN

14026-1158

$27.07

14031

COVER-GENERATOR

14031-1220

$51.63

14032

COVER-CLUTCH

14032-1245

$439.03

16115

CAP-OIL FILLER

16115-018

$10.56

16142

COVER-PUMP

16142-1086

$96.92

49006

BOOT

49006-1179

$13.58

49111

HOLDER-GOVERNOR WEIGHT

49111-1052

$64.39

49114

SHAFT-GOVERNOR

49114-1058

$32.40

49114A

SHAFT-GOVERNOR

49114-1065

$27.22

52005

GAUGE,OIL LEVEL

52005-1055

$14.76

52014

ELBOW

52014-1067

$15.89

59051

GEAR-SPUR,WATER PUMP,11T

59051-1129

$38.77

59051A

GEAR-SPUR,GOVERNOR

59051-1213

Unavailable

59256

IMPELLER

59256-1065

$36.12

92002

BOLT,SOCKET,4X8

92002-1403

$3.32

92015

NUT,FLANGED,6MM

92015-1193

Unavailable

92022

WASHER,5.2X13X1

92022-1380

$4.31

92022A

WASHER,6.2X11X1

92022-304

$3.65

92026

SPACER,15X28X1

92026-1238

$8.47

92027

COLLAR

92027-1838

$29.26

92027A

COLLAR,15.2X17X4

92027-1839

$12.27

92043

PIN,DOWEL,6.3X8X14

92042-007

$5.70

92043A

PIN,3X12.8

92043-1256

$4.50

92043B

PIN,2X9.8

92043-1293

$6.52

92043C

PIN,3X19.8

92043-1319

$4.11

92045

BEARING-BALL

92045-1212

$12.37

92046

BEARING-NEEDLE,AXK1102

92046-1052

$14.47

92049

SEAL-OIL,SB20285

92049-012

$10.89

92049A

SEAL-OIL,SDO8144

92049-1207

$9.73

92049B

SEAL-OIL,MHSD8X18X10J-1

92049-1366

$17.95

92055

RING-O,5.5X1.5

92055-1343

$0.64

92081

SPRING,GOVERNOR

92081-1934

$7.24

130

BOLT-FLANGED

130P0516

$2.92

130A

BOLT-FLANGED

130P0520

Unavailable

132

BOLT-FLANGED-SMALL,6X8

132G0608

$2.33

132A

BOLT-FLANGED-SMALL

132G0625

Unavailable

132B

BOLT-FLANGED-SMALL,6X30

132G0630

$2.48

132C

BOLT-FLANGED-SMALL,6X55

132G0655

$2.62

220

SCREW-PAN-CROS,3X6

220B0306

$0.63

600

BALL-STEEL,5/16

600A1000

$0.73

610

ROLLER,4X8

610A0408

$4.31
