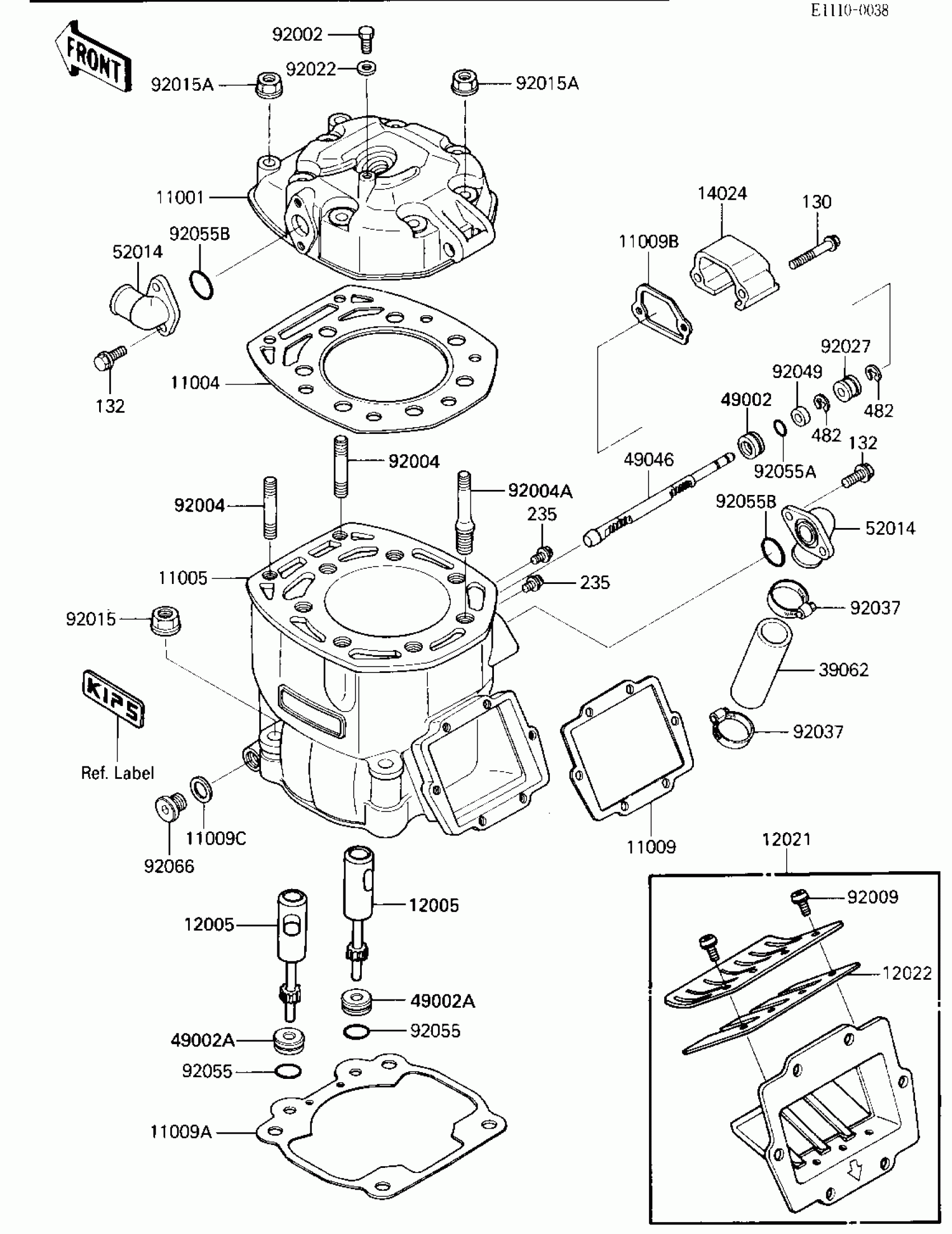

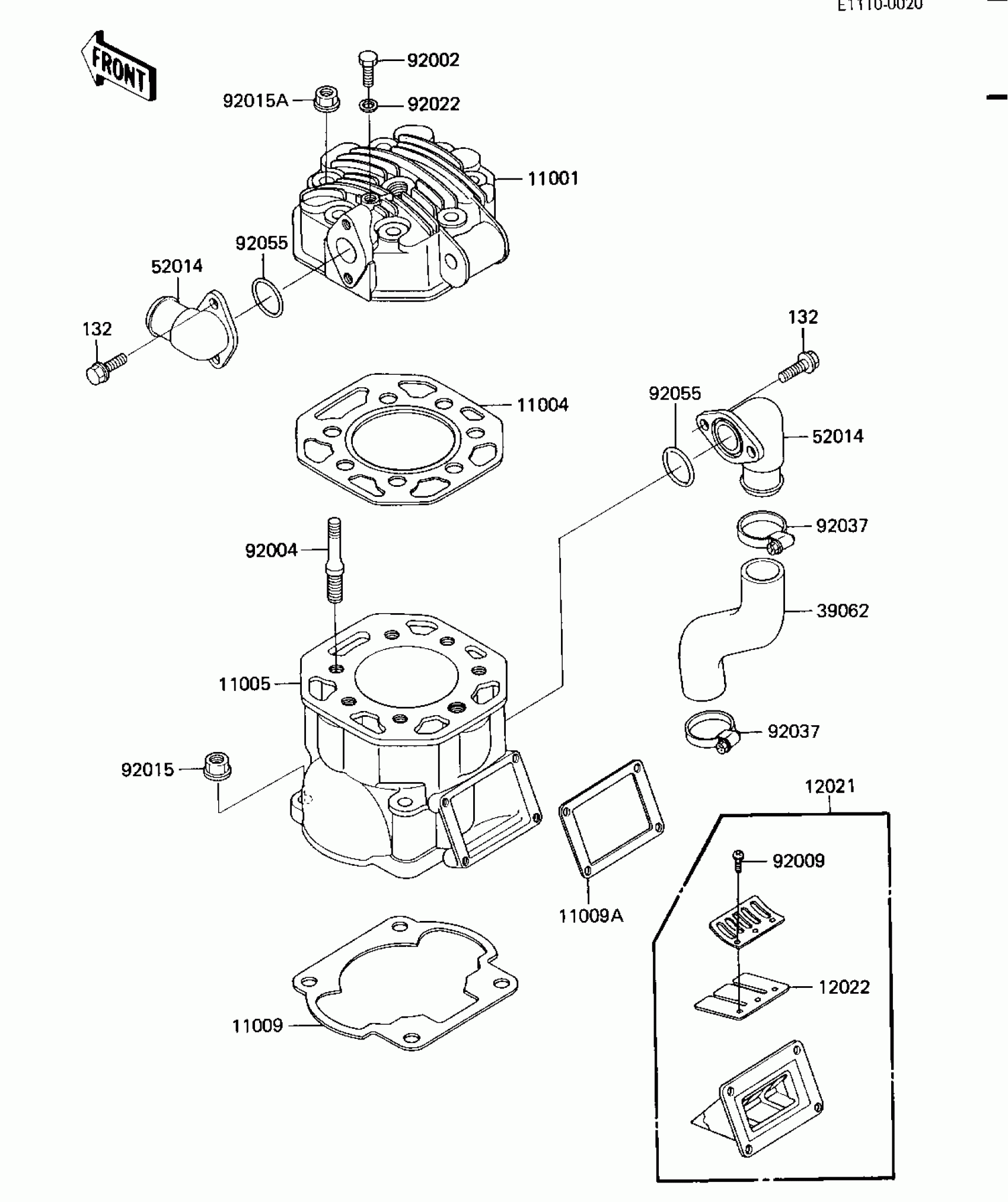

Kawasaki KX500 CYLINDER HEAD/CYLINDER/REED VALVE Diagram
#
Description
Price
11001
HEAD-CYLINDER
11001-1253
Unavailable
11004
GASKET-HEAD
11004-1156
Unavailable
11005
CYLINDER-ENGINE
11005-1510
Unavailable
11009
GASKET,REED VALVE
11009-1950
$11.49
11009A
GASKET,CYLINDER BASE
11009-1537
Unavailable
11009B
GASKET,GOVERNOR COVER
11009-1960
$5.42
11009C
GASKET,12.5X18X1,DRAIN PLUG
92065-073
$4.07
12005
VALVE-EXHAUST
12005-1080
Unavailable
12021
VALVE-ASSY-REED
12021-1066
Unavailable
12022
VALVE-REED
12022-1017
$29.73
14024
COVER,GOVERNOR
14024-1123
Unavailable
39062
HOSE-COOLING,RADIATOR-PUMP
39062-1256
$25.59
49002
GUIDE-VALVE,ROD
49002-1062
$20.77
49002A
GUIDE-VALVE
49002-1093
Unavailable
49046
ROD-GOVERNOR
49046-1057
Unavailable
52014
ELBOW,CYLINDER
52014-1004
$32.45
92002
BOLT,6X10
92002-1222
$8.10
92004
STUD,8X35
92004-1009
$6.38
92004A
STUD,CYLINDER
92004-1022
Unavailable
92009
SCREW,3X6
92009-1371
$4.18
92015
NUT,FLANGED,10MM
92015-1415
$4.69
92015A
NUT,8MM
92015-1143
$0.65
92022
WASHER,6.2X11X1
92022-304
$3.65
92027
COLLAR,GOVERNOR ROD
92027-1834
$17.56
92037
CLAMP,COOLING HOSE
92037-1589
$18.57
92049
SEAL-OIL,RSO-5.5X11X4
92049-1206
$10.39
92055
RING-O,17.5X1.5
92055-022
$6.22
92055A
RING-O,12X1.5
92055-025
$4.69
92055B
RING-O,19.5X1.5
92055-055
$4.31
92066
PLUG,12X10
92066-1222
$12.37
130
BOLT-FLANGED
130G0535
$3.84
132
BOLT-FLANGED-SMALL,6X16
132G0616
$1.47
235
SCREW-PAN-WP-CROS
235B0510
$3.41
482
CIRCLIP-TYPE-E,4MM
482J4000
$1.35
