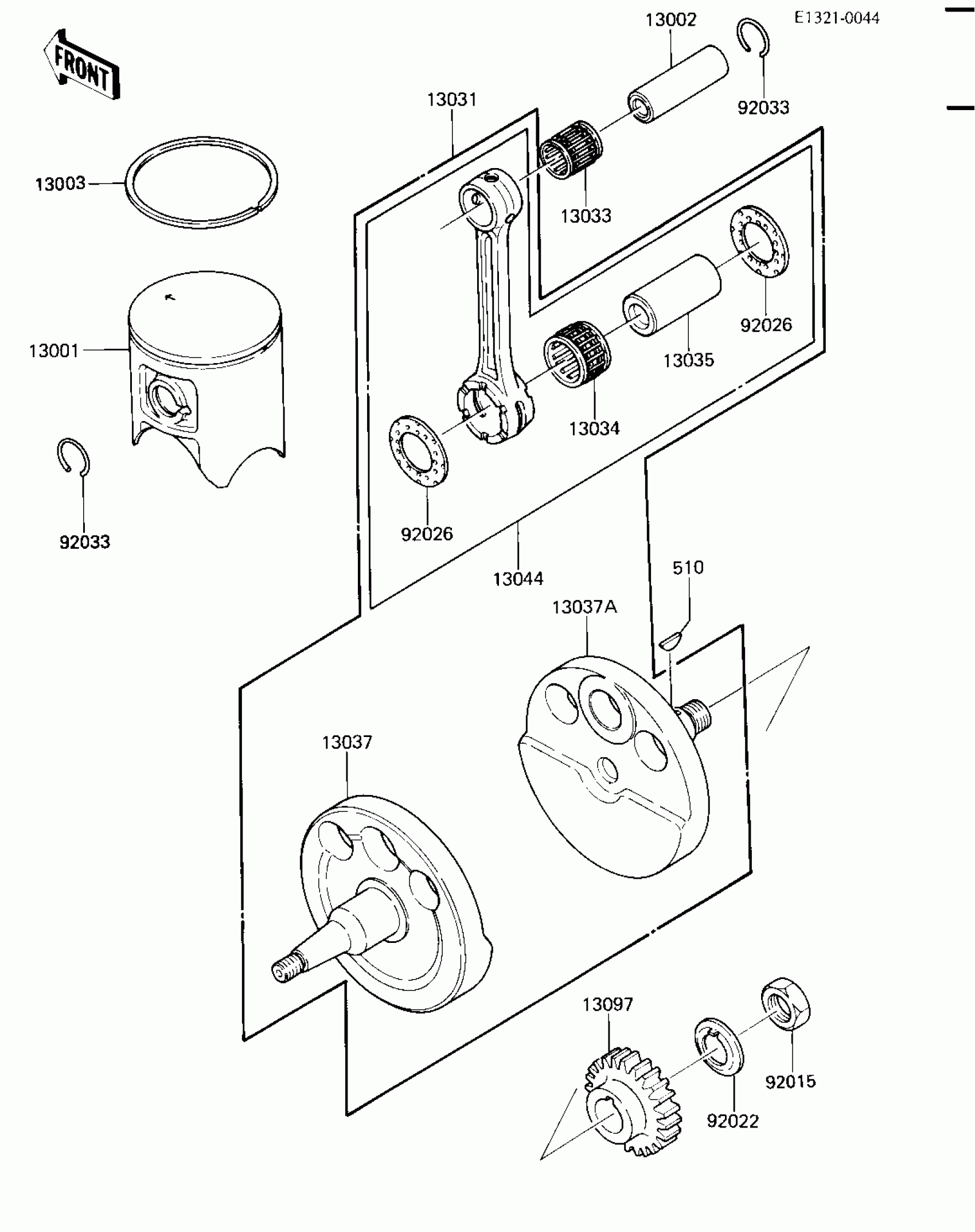

Kawasaki KX500 CRANKSHAFT/PISTON ('84 A2) Diagram

Description

Price

13001

PISTON-ENGINE

13001-1088

Unavailable

13002

PIN-PISTON

13002-031

Unavailable

13003

RING-PISTON TOP

13003-1113

Unavailable

13031

CRANKSHAFT-COMP

13031-1074

Unavailable

13033

BEARING-SMALL END,KTV192425

13033-1055

$30.91

13034

BEARING N,KT263322EGS

13034-1012

Unavailable

13035

PIN-CRANK

13035-1008

$71.23

13037

CRANKSHAFT,LH

13037-1143

Unavailable

13037A

CRANKSHAFT,RH

13037-1144

Unavailable

13044

SET-CONNECTING ROD

13044-5025

Unavailable

13097

GEAR-PRIMARY SPUR.25T

13097-1060

Unavailable

92015

NUT,18MM

92015-019

$7.22

92022

WASHER,CLAW,18MM

92022-1378

Unavailable

92026

WASHER,CONROD SIDE

92026-093

$26.41

92033

RING-SNAP,PISTON PIN

92036-008

$0.49

510

WOODRUFF KEY

510A5100

$2.70
