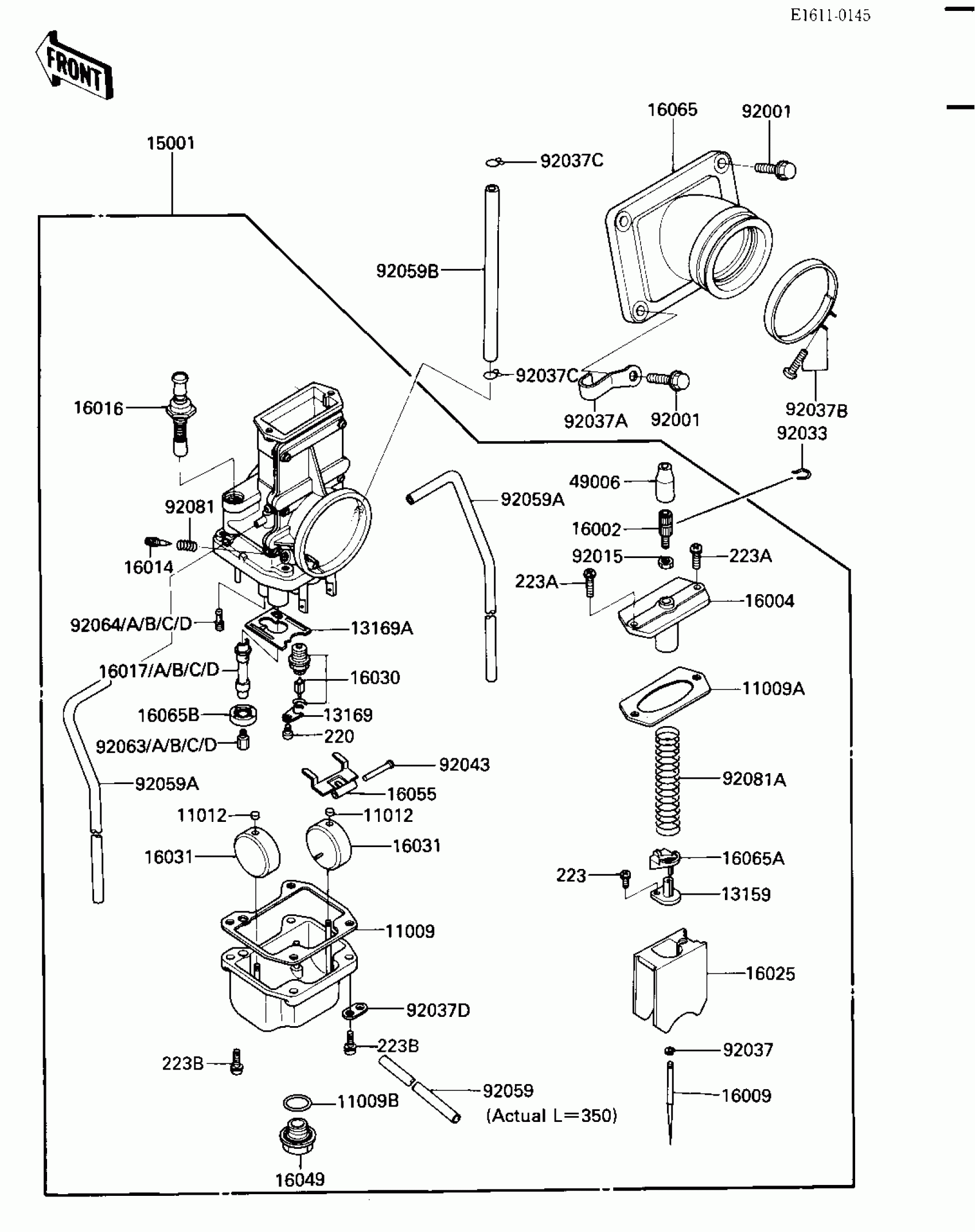

Kawasaki KX500 CARBURETOR ('84 A2) Diagram
#
11009
GASKET,FLOAT CHAMBER
11009-1275
Unavailable
11009A
GASKET,CHAMBER CAP
11009-1406
Unavailable
11009B
GASKET,MAIN JET COVER
16038-009
Unavailable
11012
CAP,FLOAT
11012-1047
Unavailable
13159
CONNECTOR
13159-1051
Unavailable
13169
PLATE, LOCK
13169-1190
Unavailable
13169A
PLATE,FLOAT CHAMBER
13169-1807
Unavailable
15001
CARBURETOR
16001-1923
$307.61
16002
ADJUSTER-CABLE
16002-011
$13.97
16004
CAP-CHAMBER,MIXING
16004-1051
$28.54
16009
NEEDLE-JET,6EL4
16009-1224
$24.63
16014
SCREW-PILOT AIR
16014-1031
Unavailable
16016
PLUNGER,STARTER
16016-1026
Unavailable
16017
JET-NEEDLE,R-6
16017-1214
Unavailable
16017A
JET-NEEDLE,R-8
16017-1233
$31.65
16017B
JET-NEEDLE,R-2
16017-1234
Unavailable
16017C
JET-NEEDLE,R-0
16017-1235
$28.39
16017D
JET-NEEDLE,R-4
16017-1236
$45.79
16025
VALVE-THROTTLE,CA2.0
16025-1104
$98.77
16030
VALVE-FLOAT,3.3
16030-1020
Unavailable
16031
FLOAT
16031-029
$64.25
16049
COVER-MAIN JET
16049-006
Unavailable
16055
ARM-FLOAT
16055-009
Unavailable
16065
HOLDER-CARBURETOR
16065-1101
Unavailable
16065A
HOLDER-CARBURETOR,THR
16065-1113
$12.86
16065B
HOLDER-CARBURETOR,NEE
16065-1114
$12.77
49006
BOOT,CARBURETOR
49006-1169
Unavailable
92001
BOLT-FLANGED-SMALL
132G0620
$2.33
92015
NUT,ADJUST LOCK
16003-006
$7.34
92033
RING-SNAP
92036-018
$3.89
92037
CLAMP,E-TYPE
16008-010
$9.21
92037A
CLAMP CABLE
92037-016
Unavailable
92037B
CLAMP,CARBURETOR HOL
92037-1313
Unavailable
92037C
CLAMP,TUBE
92037-147
$7.34
92037D
CLAMP
92037-1474
$8.63
92043
PIN,FLOAT
16032-008
$6.57
92059
TUBE,3.5X6.5X350
92059-1211
$12.19
92059A
TUBE,4X7X400
92059-1292
Unavailable
92059B
TUBE,5.8X11.5X260
92059-1392
$9.11
92063
JET-MAIN,#300
92063-045
Unavailable
92063A
JET-MAIN,#310
92063-046
Unavailable
92063B
JET-MAIN,#320
92063-047
Unavailable
92063C
JET-MAIN,#330
92063-048
$17.26
92063D
JET-MAIN,#340
92063-049
Unavailable
92064
JET-PILOT NO 40
92064-024
$22.86
92064A
PILOT JET #60A
92064-031
$13.11
92064B
JET-PILOT NO 45
92064-044
$19.70
92064C
PILOT JET,#50
92064-1005
$18.76
92064D
JET-PILOT,#55
92064-1006
$11.86
92081
SPRING,PILOT AIR SCREW
16022-007
$8.13
92081A
SPRING,THROTTLE VALVE
92081-1687
$10.27
220
SCREW PAN HEAD 4X6
220B0406
$1.67
223
SCREW-PAN-WS-CROS
223B0310
$2.74
223A
SCREW-PAN-WS-CROS
223B0412
Unavailable
223B
SCREW-PAN-WS-CROS
223B0518
Unavailable
