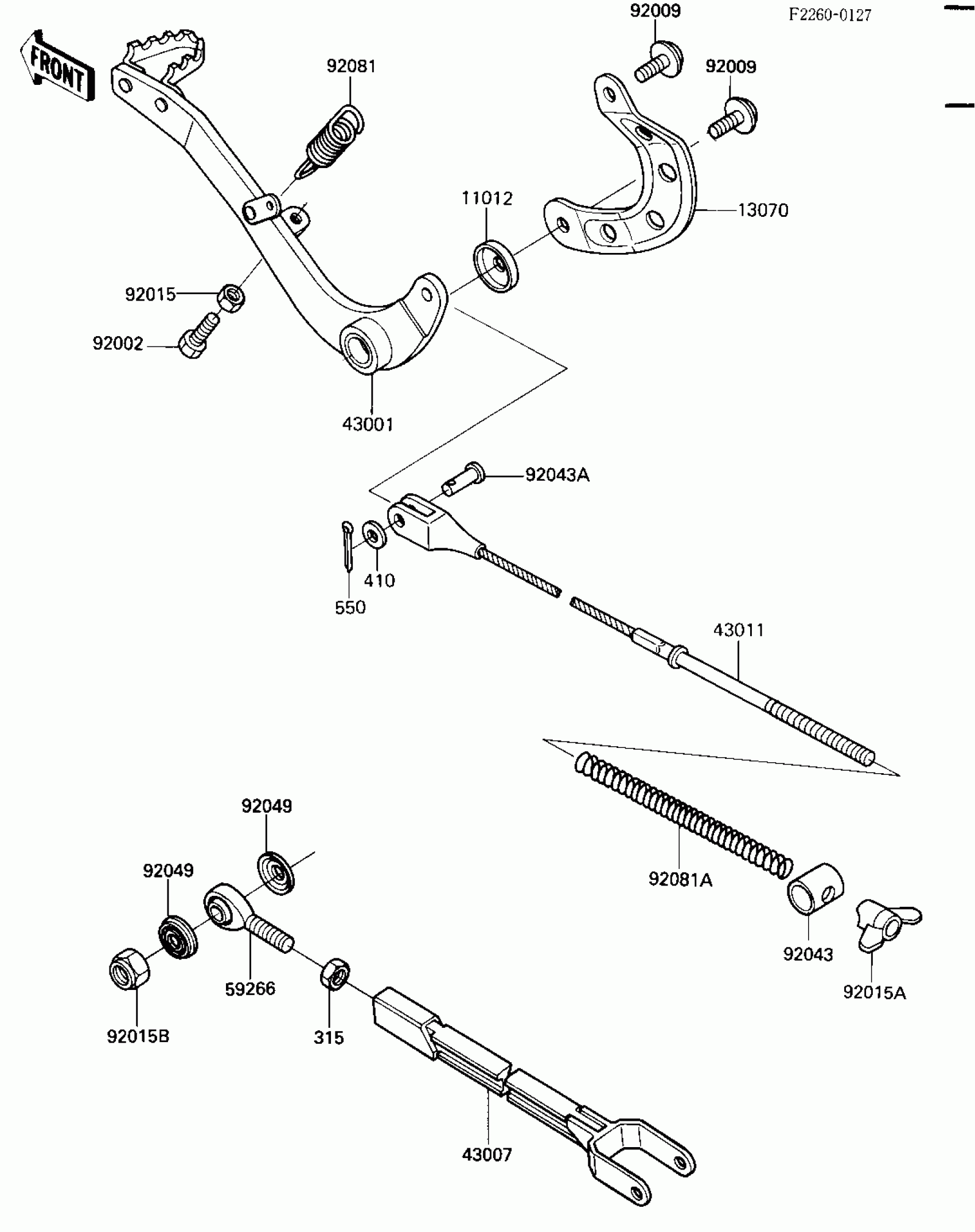

Kawasaki KX500 BRAKE PEDAL/TORQUE LINK ('84 A2) Diagram

Description

Price

11012

CAP

11012-1204

Unavailable

13070

GUIDE,BRAKE ROD

13070-1072

Unavailable

43001

LEVER-BRAKE,PEDAL

43001-1159

Unavailable

43007

ROD-TORQUE

43007-1101

$118.99

43011

ROD-BRAKE

43011-1107

Unavailable

59266

JOINT,BALL

59266-1005

$88.01

92002

BOLT,6X20

92002-1373

$4.38

92009

SCREW,6X10,WHITE

92009-1286

$4.31

92015

NUT,6MM

92015-1391

$2.49

92015A

NUT,WING,6MM

92015-4004

$7.29

92015B

NUT,LOCK,10MM

92019-021

$6.11

92043

PIN,BRAKE

92043-1024

$10.86

92043A

PIN,6X17

92043-107

Unavailable

92049

OIL SEAL,BALL JOINT

92049-1072

Unavailable

92081

SPRING RETURN

92081-1059

Unavailable

92081A

SPRING,BRAKE ROD

92081-1688

$4.65

315

NUT-HEX-FINE,10MM

315B1000

$0.58

410

WASHER-PLAIN-SMALL,6MM

410B0600

$1.31

550

PIN COTTER 2.0X15

550D2015

$1.04
