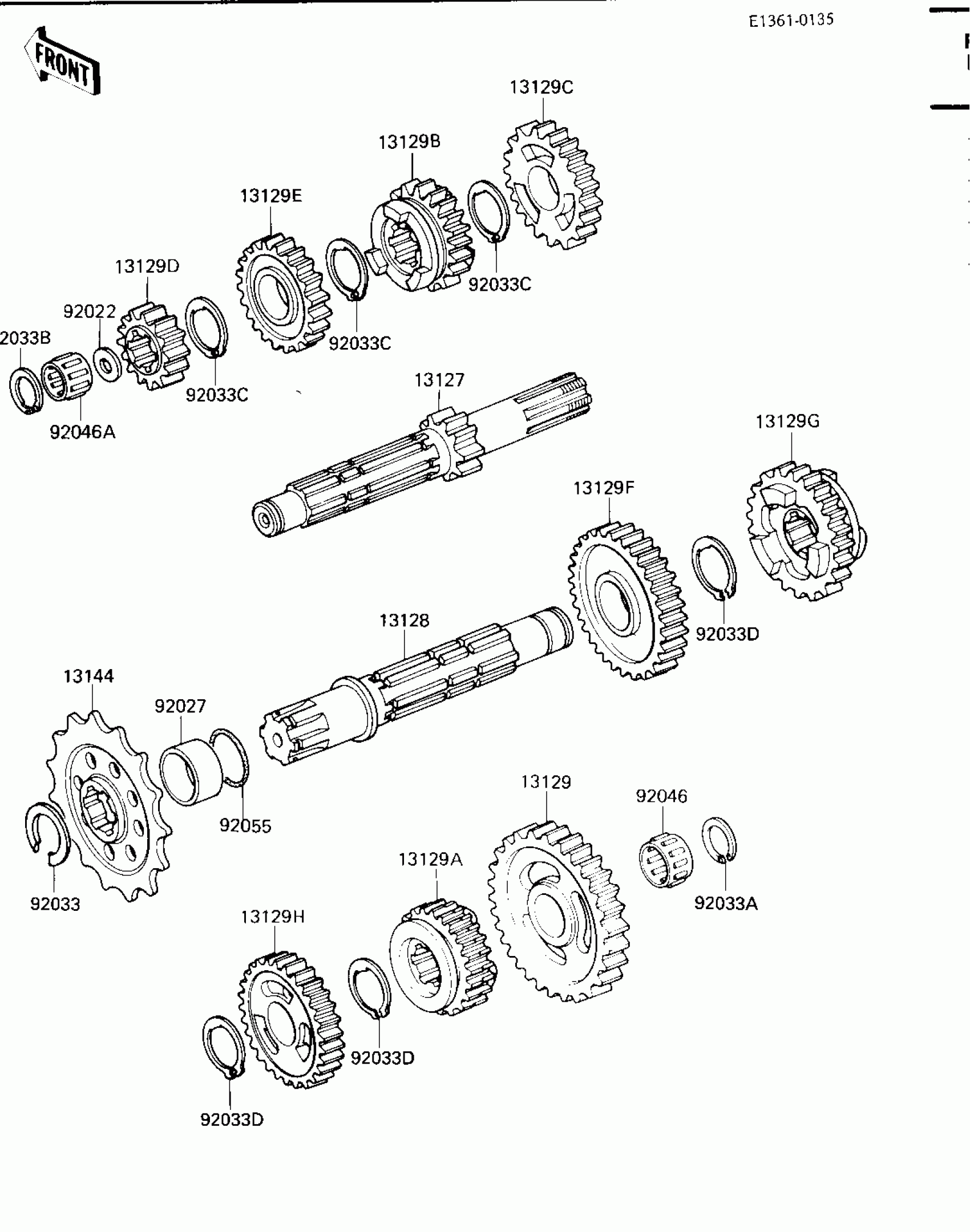

Kawasaki KX250 TRANSMISSION ('84 KX250-C2) Diagram

Description

Price

13127

SHAFT-TRANSMISSION IN

13127-1063

Unavailable

13128

SHAFT-TRANSMISSION O

13128-1047

Unavailable

13129

GEAR,OUTPUT LOW,32T

13129-1160

Unavailable

13129A

GEAR,OUTPUT TOP,24T

13129-1164

Unavailable

13129B

GEAR,INPUT 3RD,18T

13129-1956

Unavailable

13129C

GEAR,INPUT TOP,24T

13129-1206

Unavailable

13129D

GEAR,INPUT 2ND,17T

13129-1392

Unavailable

13129E

GEAR,INPUT 4TH,22T

13129-1393

Unavailable

13129F

GEAR,OUTPUT 2ND,30T

13129-1394

Unavailable

13129G

GEAR,OUTPUT 4TH,25T

13129-1395

Unavailable

13129H

GEAR,OUTPUT 3RD,25T

13129-1421

Unavailable

13144

ENGINE SPROCKET,14T

13144-1006

Unavailable

92022

WASHER,18.3X22X0.5

92022-271

$5.52

92027

COLLAR-ENG SPROKET

92027-163

Unavailable

92033

RING-SNAP,24MM

92033-026

$8.79

92033A

RING-SNAP,18MM

92033-029

$9.82

92033B

RING-SNAP

92033-032

$4.96

92033C

RING-SNAP,20MM

92033-1231

$5.54

92033D

RING-SNAP,25MM

92033-1089

$5.54

92046

BEARING-NEEDLE,KT202614

92046-1170

$18.16

92046A

BEARING-NEEDLE

92046-1184

$21.25

92055

RING-O

92055-035

$5.00
