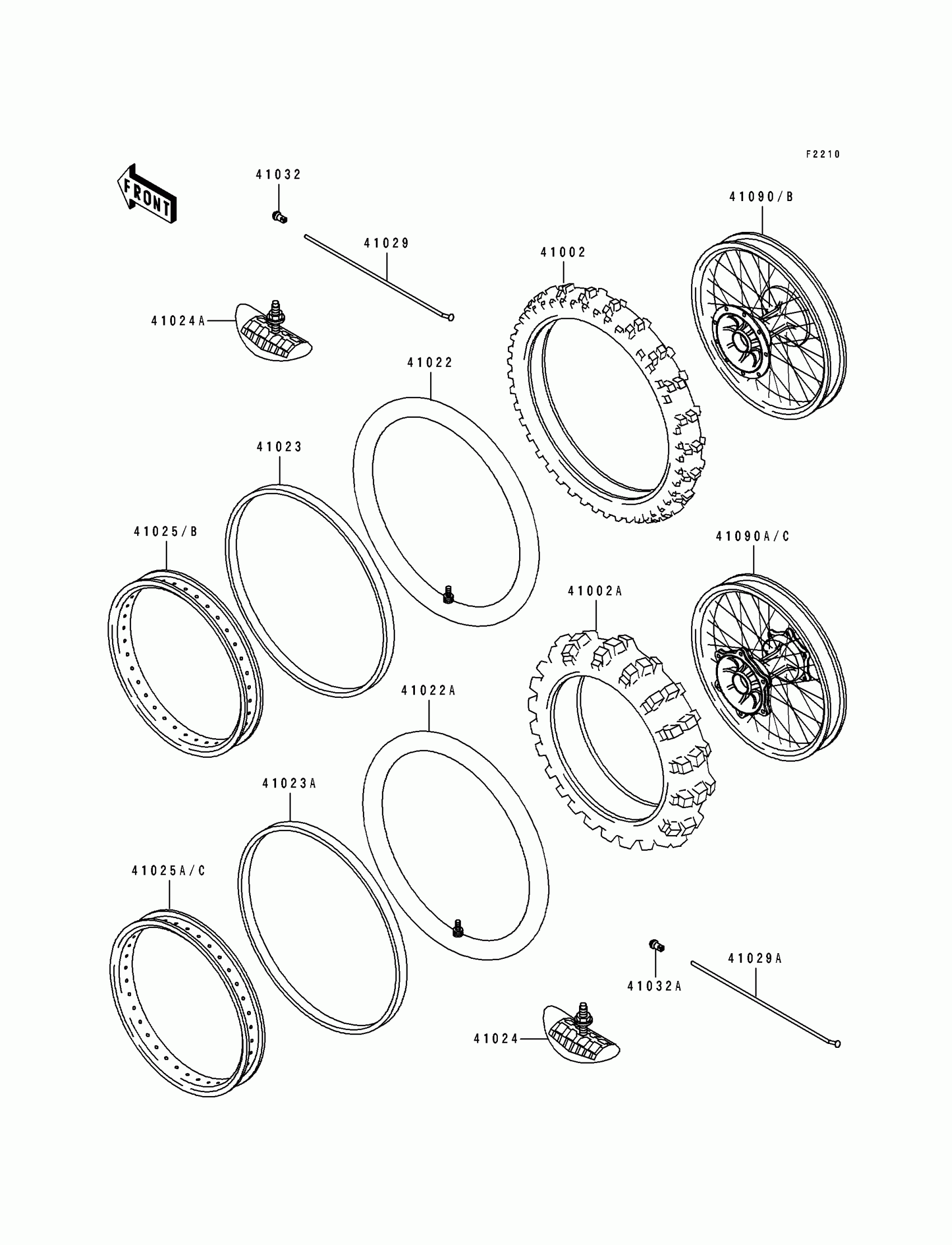

Kawasaki KX250 Tire Diagram

TIRE,FR,80/100-21 51M,K490J(D)

41002-1803

Unavailable

TIRE,RR,110/90-19 62M,K695(D)

41002-1804

$191.58

TUBE-TIRE,80/100-21(D)

41022-1118

$50.05

TUBE-TIRE,110/90-19(D)

41022-1141

$50.05

BAND-RIM,80/100-21(D)

41023-1069

Unavailable

BAND-RIM,110/90-19(D)

41023-1084

$15.30

STOPPER-RIM,2.15-M(DUNLOP)

41024-009

$59.16

STOPPER-RIM,1.60-M(DUNLOP)

41024-010

$51.74

RIM,FR,1.60X21

41025-1254

$212.08

RIM,RR,2.15X19

41025-1255

$572.16

SPOKE-INNER,FR,230MMX165D

41029-1197

$9.30

SPOKE-INNER,RR,202MMX160D

41029-1204

$7.22

NIPPLE-SPOKE

41032-1061

$4.55

NIPPLE-SPOKE

41032-1064

$4.76

WHEEL-SUB ASSY,FR

41090-1086

$1,124.29

WHEEL-SUB ASSY,RR

41090-1087

$1,008.68
