Description

Price

1

SHOCK ABSBR RR

45014-1049

$550.14

2

BOLT,HEX HEAD,14X50

92001-1317

Unavailable

3

BOLT,HEX HEAD,12X55

113P1255A

$6.40

4

ARM-SUSP

39007-1006

$83.77

5

BOLT,HEX HEAD,14X54

92001-1295

Unavailable

6

BOLT,HEX HEAD,14X60

92001-1335

Unavailable

7

CAP,SUSPENSION ARM

11012-1117

Unavailable

8

NUT-LOCK,14MM

92019-011

Unavailable

9

JOINT,BALL,SUSPENSIO

59266-1001

$168.76

10

JOINT,BALL,SUSPENSIO

59266-1002

Unavailable

11

BUSHING,SUSPENSION A

92028-1087

Unavailable

12

PIN-COTTER,2.5X25

550D2525

$1.26

13

NUT-LOCK,12MM

92019-009

$7.29

14

ROD,UNI-TRACK,LH

46102-1024

$97.27

15

ROD,UNI-TRACK,RH

46102-1025

$97.27

16

BOLT,HEX HEAD,12X48

92001-1297

Unavailable

17

BOOT,BALL JOINT

49006-1045

Unavailable

18

NUT-HEX-FINE

315B1200

$0.93

19

BOOT,BALL JOINT

49006-1046

Unavailable

20

BAND,FUEL TANK

92072-076

Unavailable

21

SPACER

92026-4005

$6.42

22

SPRING, RR SHOCK STD

92081-1243

$222.51

22

SPRING,RR SHOCK,SOFTR

92081-1291

$207.13

22

SPRING,RR SHOCK,HARDR

92081-1292

$212.34

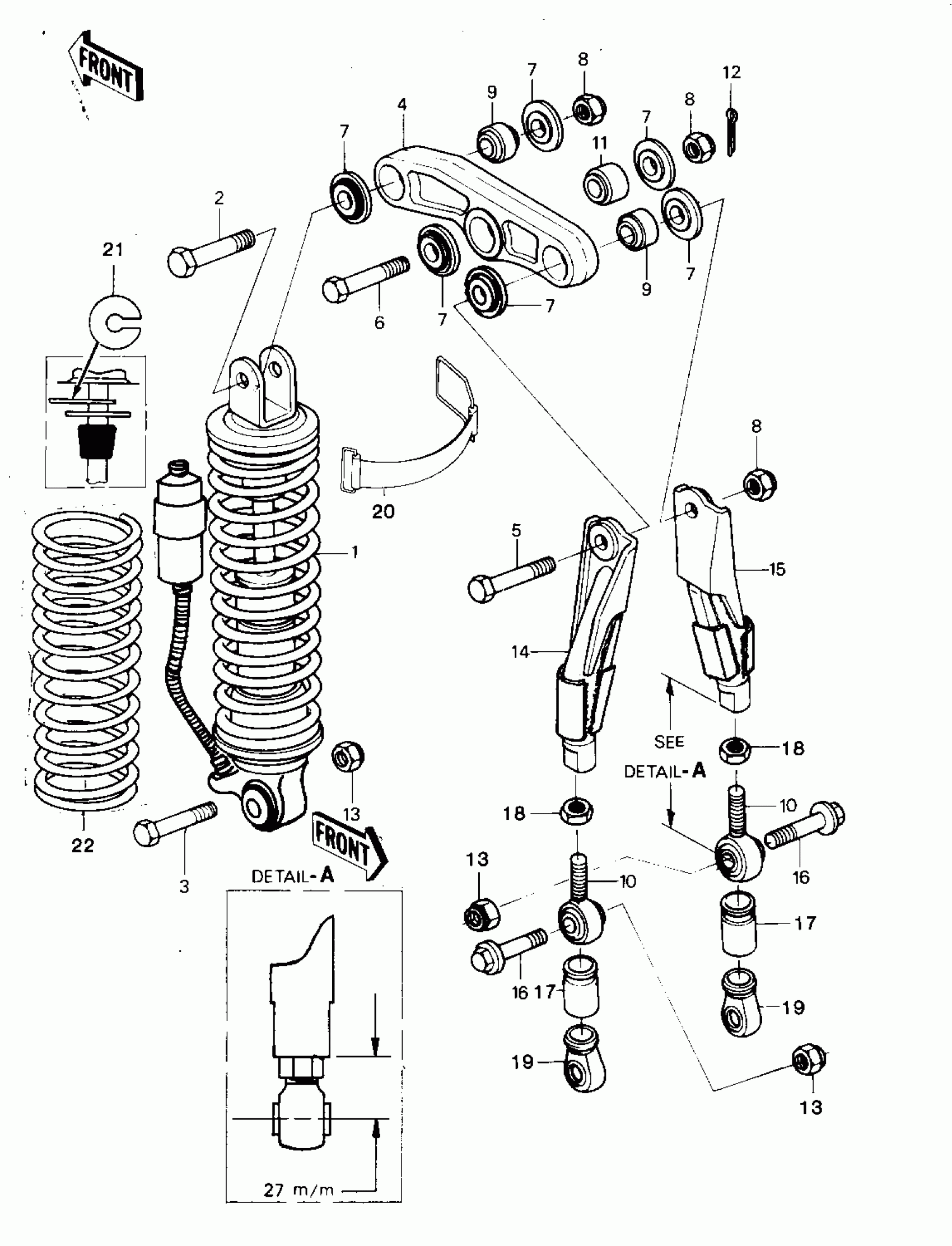

Kawasaki KX250 REAR SUSPENSION/SHOCK ABSORBER (KX250-A6 Diagram

SHOCK ABSBR RR

BOLT,HEX HEAD,14X50

BOLT,HEX HEAD,12X55

ARM-SUSP

BOLT,HEX HEAD,14X54

BOLT,HEX HEAD,14X60

CAP,SUSPENSION ARM

NUT-LOCK,14MM

JOINT,BALL,SUSPENSIO

JOINT,BALL,SUSPENSIO

BUSHING,SUSPENSION A

PIN-COTTER,2.5X25

NUT-LOCK,12MM

ROD,UNI-TRACK,LH

ROD,UNI-TRACK,RH

BOLT,HEX HEAD,12X48

BOOT,BALL JOINT

NUT-HEX-FINE

BOOT,BALL JOINT

BAND,FUEL TANK

SPACER

SPRING, RR SHOCK STD

SPRING,RR SHOCK,SOFTR

SPRING,RR SHOCK,HARDR
