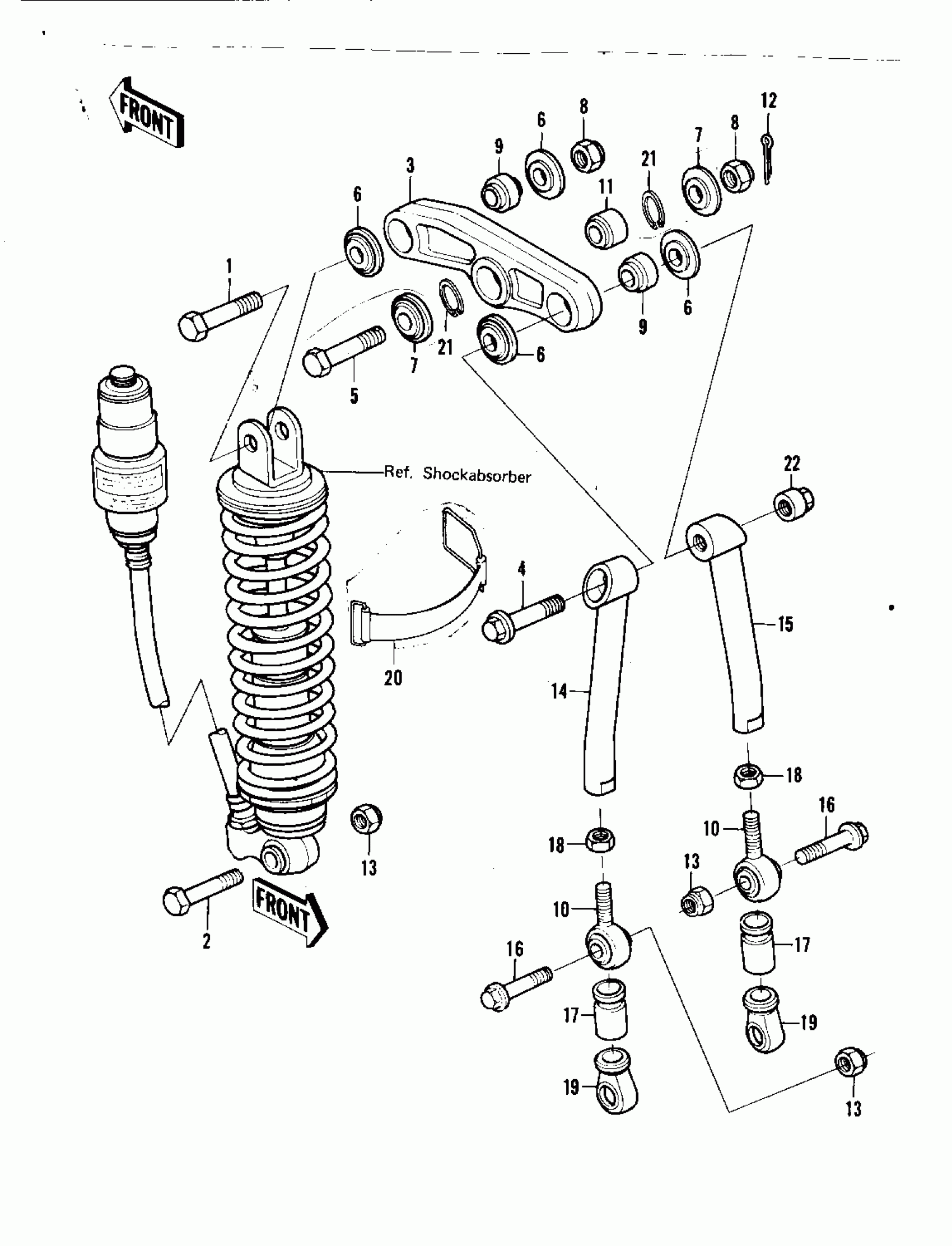

Kawasaki KX250 REAR SUSPENSION (KX250-A7) Diagram
#
Description
Price
1
BOLT,HEX HEAD,14X50
92001-1317
Unavailable
4
BOLT,14X60
92001-1344
Unavailable
5
BOLT,HEX HEAD,14X60
92001-1335
Unavailable
6
CAP,SUSPENSION ARM
11012-1117
Unavailable
7
CAP,SUSPENSION ARM
11012-1168
Unavailable
8
NUT-LOCK,14MM
92019-011
Unavailable
10
JOINT,BALL,SUSPENSIO
59266-1002
Unavailable
11
BUSHING,SUSPENSION A
92028-1087
Unavailable
16
BOLT,HEX HEAD,12X48
92001-1297
Unavailable
17
BOOT,BALL JOINT
49006-1045
Unavailable
19
BOOT,BALL JOINT
49006-1046
Unavailable
20
BAND,FUEL TANK
92072-076
Unavailable
21
RING,SNAP
92033-1064
Unavailable
22
NUT,UNITRAK LINK
92015-1123
Unavailable
