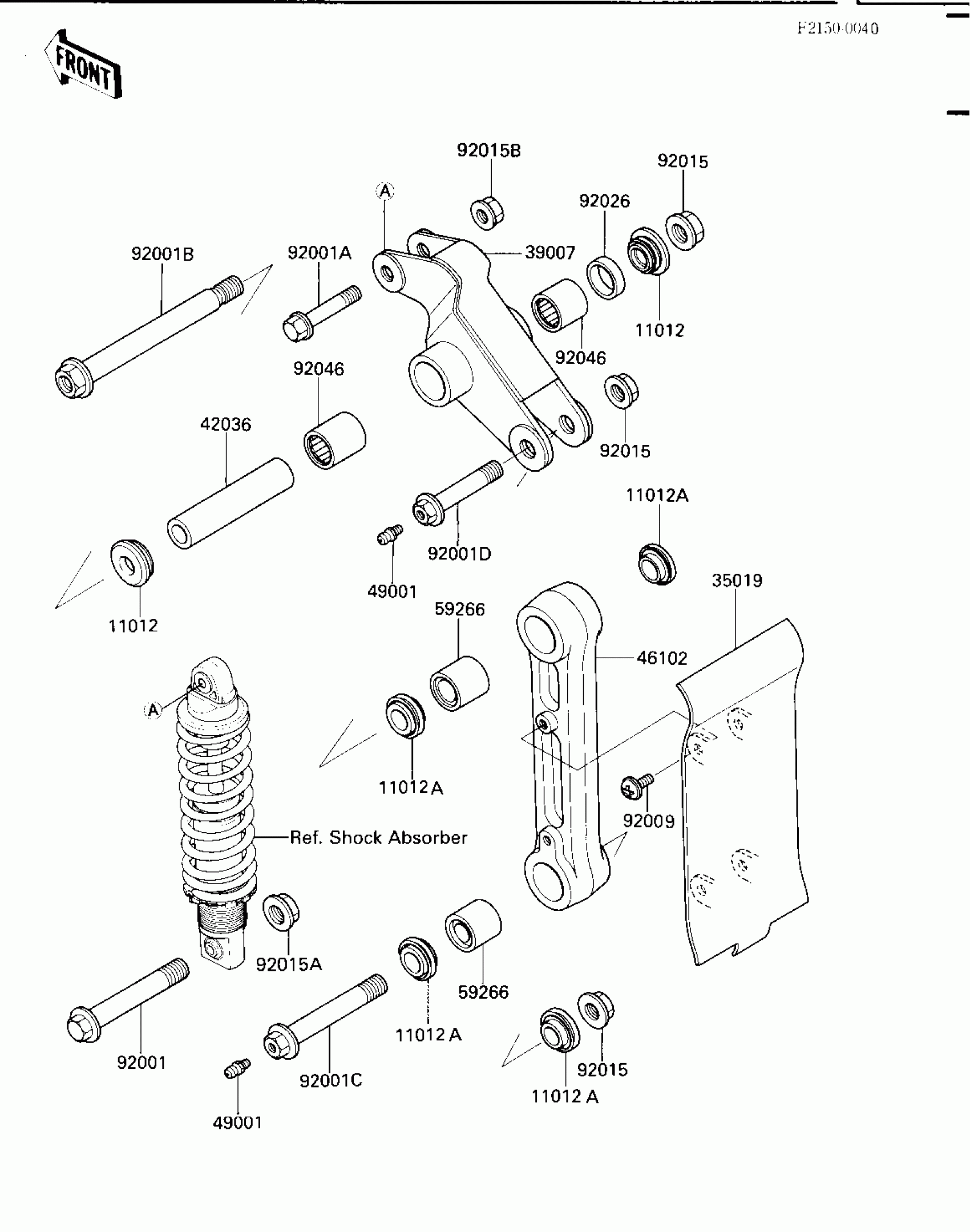

Kawasaki KX250 REAR SUSPENSION ('84 KX250-C2) Diagram

Description

Price

11012

CAP

11012-1207

Unavailable

11012A

CAP,ROD

11012-1258

Unavailable

35019

FLAP,ROD

35019-1112

Unavailable

39007

ARM-SUSP,UNI TRAK

39007-1052

$162.45

42036

SLEEVE,SUSPENSION ARM

42036-1119

Unavailable

46102

ROD,UNI TRAK,L=197

46102-1112

$426.42

49001

NIPPLE-GREASE

49001-1051

$3.02

59266

JOINT-BALL,SB142820E0

59266-1052

Unavailable

92001

BOLT,FLANGED,12X88

92001-1693

$15.60

92001A

BOLT,10X50

92001-1913

$8.43

92001B

BOLT,14X143

92001-1923

$34.95

92001C

BOLT,14X82

92001-1972

Unavailable

92001D

BOLT,14X60

92001-1973

Unavailable

92009

SCREW,6X10,WHITE

92009-1286

$4.31

92015

NUT,14MM

92015-1407

$9.91

92015A

NUT,FLANGED,12MM

92015-1156

Unavailable

92015B

NUT,FLANGED,10MM

92015-1415

$4.69

92026

SPACER,SUSPENSION ARM

92026-1203

Unavailable

92046

BRG,NEEDLE,HMK2030

92046-1031

Unavailable
