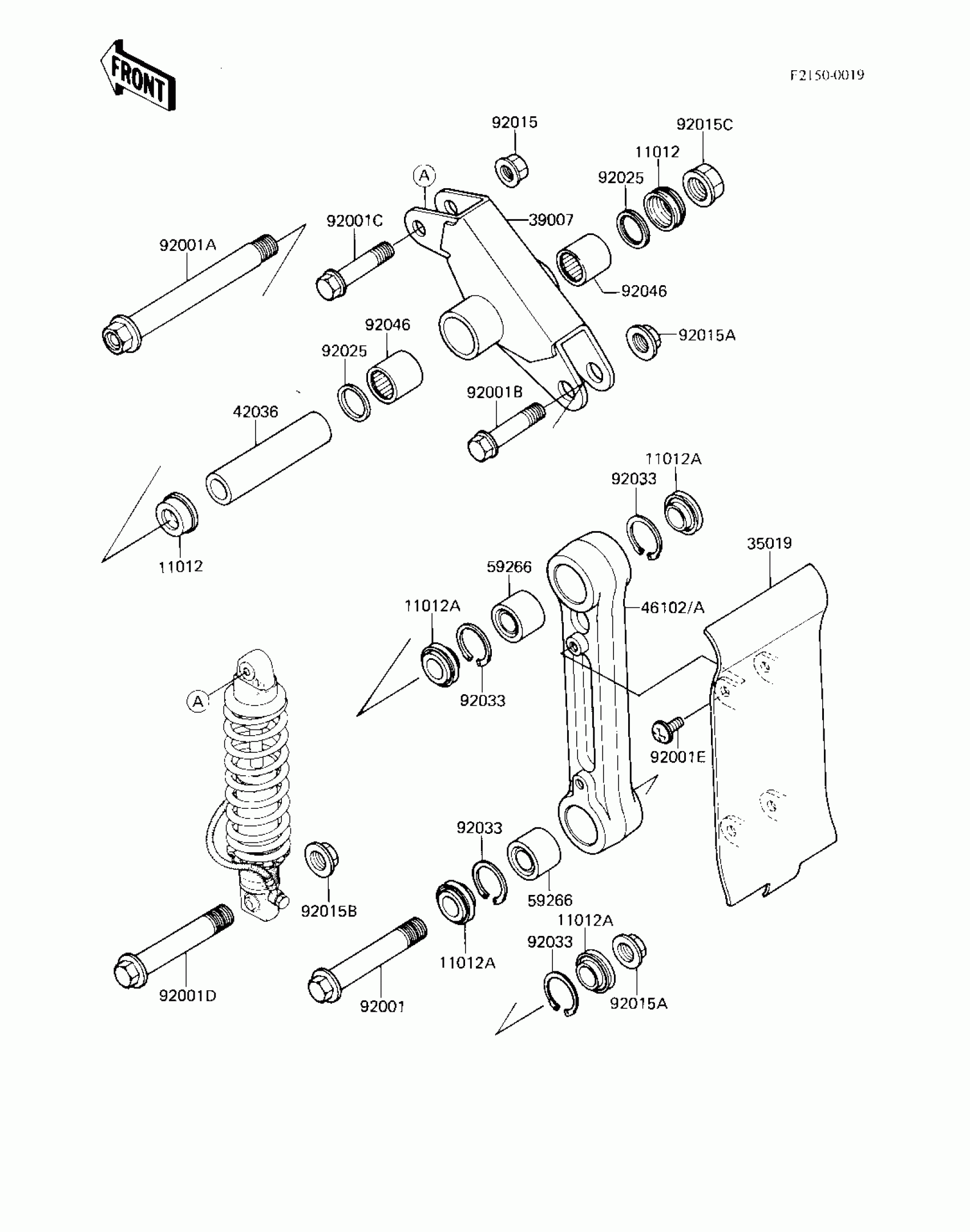

Kawasaki KX250 REAR SUSPENSION ('83 KX250-C1) Diagram

Description

Price

11012

CAP

11012-1203

Unavailable

11012A

CAP,ROD

11012-1258

Unavailable

35019

FLAP,ROD

35019-1112

Unavailable

39007

ARM-SUSP,UNIT TRAK

39007-1022

$162.12

42036

SLEEVE,SUSPENSION ARM

42036-1063

$30.37

46102

ROD,UNI TRAK

46102-1056

$312.39

46102A

ROD,UNI TRAK,L=203

46102-1066

$359.15

59266

JOINT-BALL,SB142820E0

59266-1052

Unavailable

92001

BOLT,FLANGED,14X82

92001-1686

Unavailable

92001A

BOLT,SUSPENSION ARM

92001-1687

Unavailable

92001B

BOLT,FLANGED,14X57

92001-1688

Unavailable

92001C

BOLT,FLANGED,10X50

92001-1692

$8.43

92001D

BOLT,FLANGED,12X88

92001-1693

$15.60

92001E

SCREW,6X10,WHITE

92009-1286

$4.31

92015

NUT,FLANGED,10MM

92015-1415

$4.69

92015A

NUT,14MM

92015-1407

$9.91

92015B

NUT,FLANGED,12MM

92015-1156

Unavailable

92015C

NUT,16MM

92015-1046

Unavailable

92025

SHIM

92025-1229

Unavailable

92033

RING,SNAP

92033-1064

Unavailable

92046

BEARING-NEEDLE,TA2428Z

92046-1041

Unavailable
