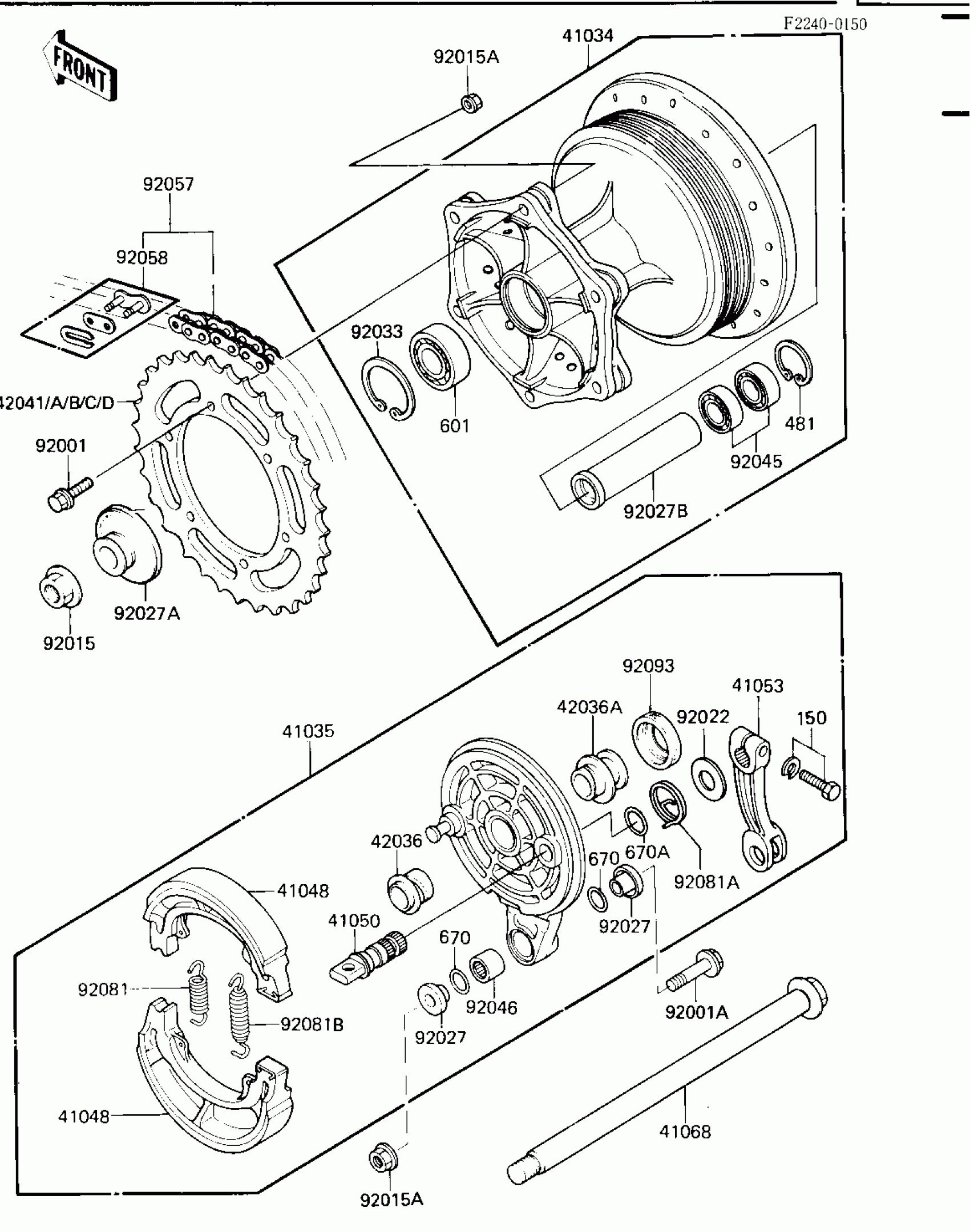

Kawasaki KX250 REAR HUB/BRAKE/CHAIN ('84 KX250-C2) Diagram
#
41034
DRUM-ASSY,RR
41034-1102
$421.15
41035
PANEL-ASSY-BRAKE,RR
41035-1152
$439.11
41048
SHOE,BRAKE
42019-010
$38.07
41050
CAM-BRAKE,RR
41050-1027
$49.44
41053
LEVER-BRAKE CAM.RR
41053-1034
$131.43
41068
AXLE,RR,L=283
41068-1166
$148.69
42036
SLEEVE
42036-1052
$52.46
42036A
SLEEVE,RH.L=27.5
42036-1106
$94.66
42041
REAR SPROCKET,52T
42041-1044
$218.62
42041A
SPROCKET-HUB,51T
42041-1079
$111.88
42041B
SPROCKET-HUB,48T
42041-1125
$134.39
42041C
SPROCKET-HUB,50T
42041-1132
$120.61
42041D
SPROCKET-HUB,49T
42041-1183
$115.46
92001
BOLT,HEX HEAD,8X32
92001-1040
Unavailable
92001A
BOLT
92001-1578
$8.19
92015
NUT,16MM
92015-1015
Unavailable
92015A
NUT,8MM
92015-1143
$0.65
92022
WASHER,14X30X0.8
92022-1402
$5.06
92027
COLLAR,L=11.5
92027-1040
Unavailable
92027A
COLLAR,L=23.5
92027-1543
$44.33
92027B
COLLAR,L=99
92027-1748
$78.99
92033
RING-SNAP,40MM
92033-1040
$5.90
92045
BEARING-BALL,#6003UC3
601B6003U
$22.40
92046
BEARING-NEEDLE,HK1216LL
92046-1009
$18.45
92057
CHAIN,DRIVE,DID520DSX114L
92057-1317
Unavailable
92058
JOINT-CHAIN,DRIVE
92058-1013
Unavailable
92081
SPRING,BRAKE SHOE
92081-1766
$8.03
92081A
SPRING,BRAKE LEVER
92081-1520
$6.41
92081B
SPRING,BRAKE SHOE
92081-1550
$9.49
92093
OIL SEAL
92093-1004
Unavailable
150
BOLT-WS
150G0622
$2.58
481
CIRCLIP-TYPE-C,35MM
481J3500
$1.96
601
BEARING-BALL,#6203LUC3/2A
601B6203U
$34.24
670
O RING,11MM
670B2011
$1.28
670A
O RING,15MM
670B2015
$1.42
