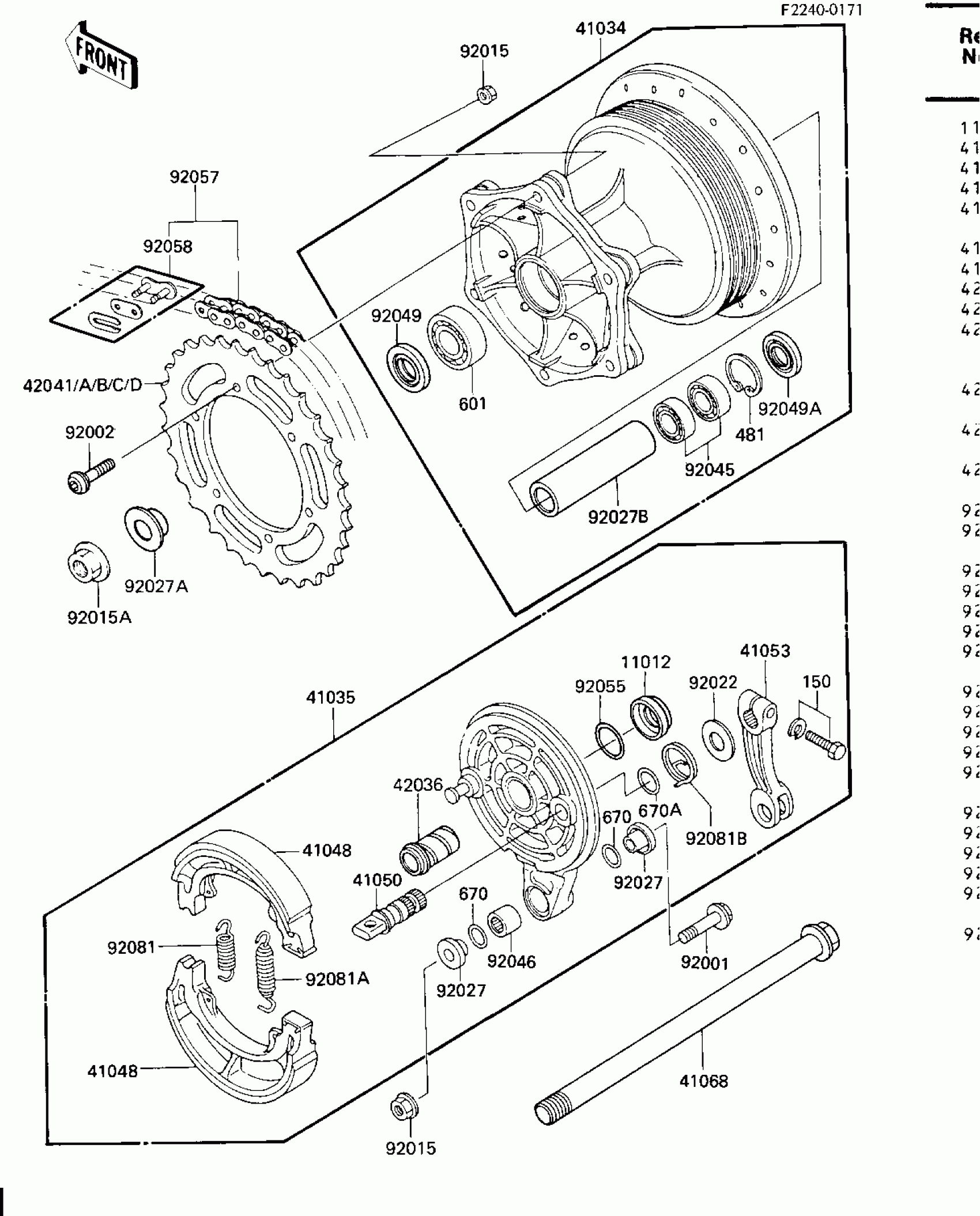

Kawasaki KX250 REAR HUB/BRAKE/CHAIN Diagram
#
11012
CAP,RR BRAKE
11012-1416
Unavailable
41034
DRUM-ASSY,RR BRAKE
41034-1117
$708.12
41035
PANEL-ASSY-BRAKE,RR
41035-1175
$607.59
41048
SHOE,BRAKE
42019-010
$38.07
41050
CAM-BRAKE,RR
41050-1027
$49.44
41053
LEVER-BRAKE CAM.RR
41053-1034
$131.43
41068
AXLE,RR
41068-1180
Unavailable
42036
SLEEVE,RR BRAKE,L=44
42036-1143
$58.83
42041
SPROCKET-HUB,50T,AL
42041-1255
Unavailable
42041A
SPROCKET-HUB,48T,AL
42041-1103
$138.44
42041B
SPROCKET-HUB,51T,AL
42041-1104
Unavailable
42041C
SPROCKET-HUB,49T,AL
42041-1256
$110.77
42041D
SPROCKET-HUB,52T,AL
42041-1196
$126.81
92001
BOLT,HEX HEAD,8X40
110B0840
$7.62
92002
BOLT,8MM
92002-1387
$6.56
92015
NUT,8MM
92015-1143
$0.65
92015A
NUT,20MM
92015-1461
$24.15
92022
WASHER,14X30X0.8
92022-1402
$5.06
92027
COLLAR,L=11.5
92027-1040
Unavailable
92027A
COLLAR,RR AXLE,L=20.5
92027-1828
Unavailable
92027B
COLLAR,L=99
92027-1836
$42.12
92045
BEARING-BALL,6904LU/2A
92045-1136
$40.34
92046
BEARING-NEEDLE,HK1216LL
92046-1009
$18.45
92049
SEAL-OIL,BJNC2 25425
92049-1203
$17.91
92049A
SEAL-OIL,BJN 30374
92049-1205
$18.74
92055
RING-O,31.5X2.6
92055-049
$4.31
92057
DR CHAIN DID520DS5
92057-1178
$212.35
92058
JOINT-CHAIN,DRIVE
92058-1013
Unavailable
92081
SPRING,BRAKE SHOE
92081-1766
$8.03
92081A
SPRING,BRAKE SHOE
92081-1550
$9.49
92081B
SPRING,BRAKE CAM LEV
92081-1770
Unavailable
150
BOLT-WS
150G0622
$2.58
481
CIRCLIP-TYPE-C,37MM
481J3700
$3.04
601
UNAVAILABLE IN PRICE BOOK
601B60040
Unavailable
670
O RING,11MM
670B2011
$1.28
670A
O RING,15MM
670B2015
$1.42
