Description

Price

11009

GASKET,DRAIN BOLT

11009-1152

$7.55

14037

SCREEN,RADIATOR,EBON

14037-1077-6C

$23.16

39061

RADIATOR-ASSY,LH

39061-1064

$460.21

39061A

RADIATOR-ASSY,RH

39061-1065

$460.21

39062

HOSE-COOLING,CYLINDER HEAD

39062-1094

Unavailable

39062A

HOSE-COOLING,RADIATO

39062-1095

$34.55

39062B

HOSE-COOLING,RADIATO

39062-1096

$25.59

49085

CAP-ASSY-PRESSURE

49085-1003

$37.42

49089

SHROUD-ENGINE,LH,L.G

49089-5004-6W

Unavailable

49089A

SHROUD-ENGINE,RH,L.G

49089-5005-6W

Unavailable

92001

BOLT,RADIATOR DRAIN

92002-1682

$20.51

92009

SCREW,6X10,WHITE

92009-1286

$4.31

92015

NUT

92015-1487

$4.80

92027

COLLAR

92027-194

$5.52

92037

CLAMP,COOLING HOSE

92037-1589

$18.57

92059

TUBE,5X9X800

92059-1383

$9.64

92075

DAMPER RUBBER,RR FENR

92075-209

$4.69

132

BOLT-FLANGED-SMALL

132G0620

$2.33

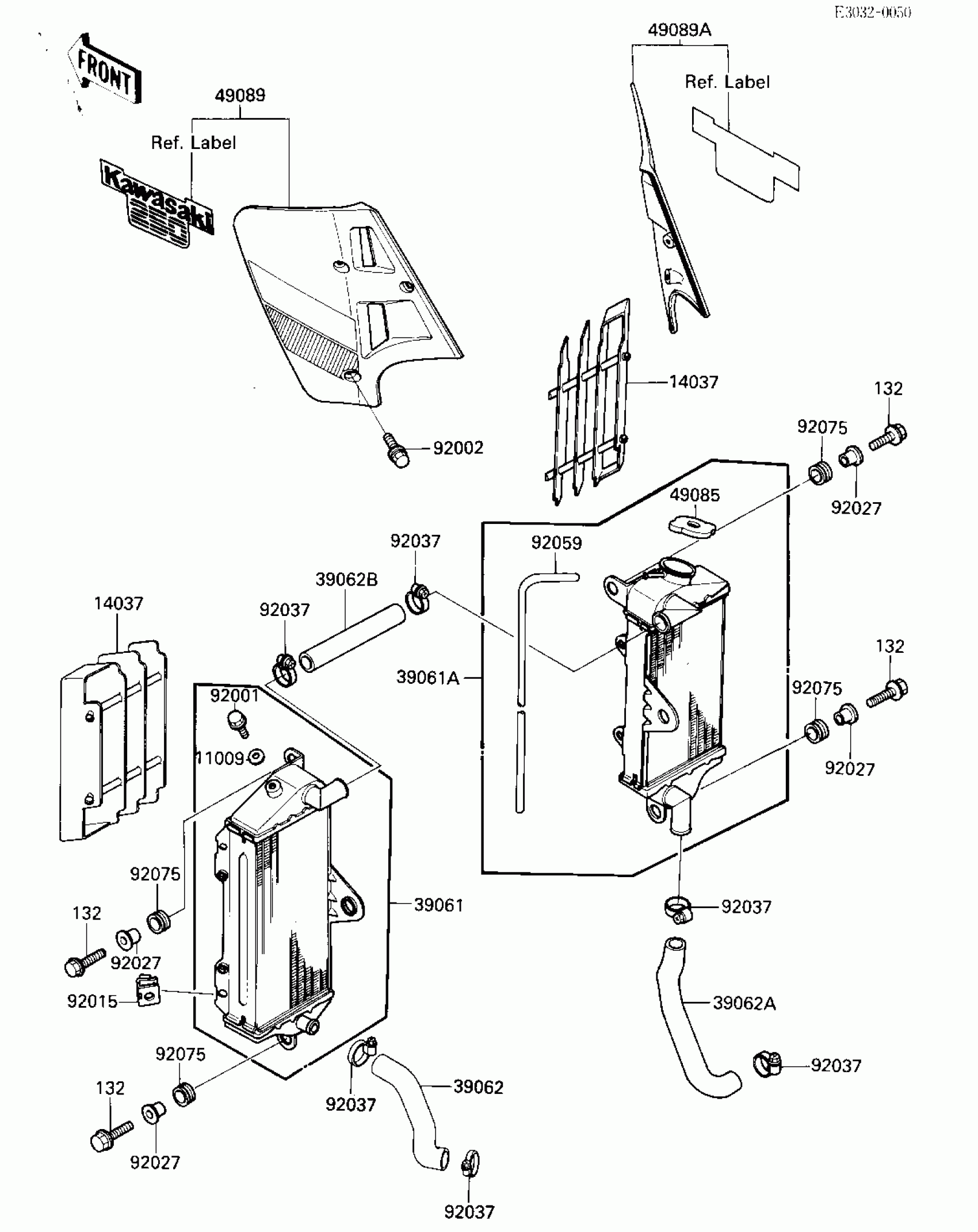

Kawasaki KX250 RADIATORS Diagram

GASKET,DRAIN BOLT

SCREEN,RADIATOR,EBON

RADIATOR-ASSY,LH

RADIATOR-ASSY,RH

HOSE-COOLING,CYLINDER HEAD

HOSE-COOLING,RADIATO

HOSE-COOLING,RADIATO

CAP-ASSY-PRESSURE

SHROUD-ENGINE,LH,L.G

SHROUD-ENGINE,RH,L.G

BOLT,RADIATOR DRAIN

SCREW,6X10,WHITE

NUT

COLLAR

CLAMP,COOLING HOSE

TUBE,5X9X800

DAMPER RUBBER,RR FENR

BOLT-FLANGED-SMALL
