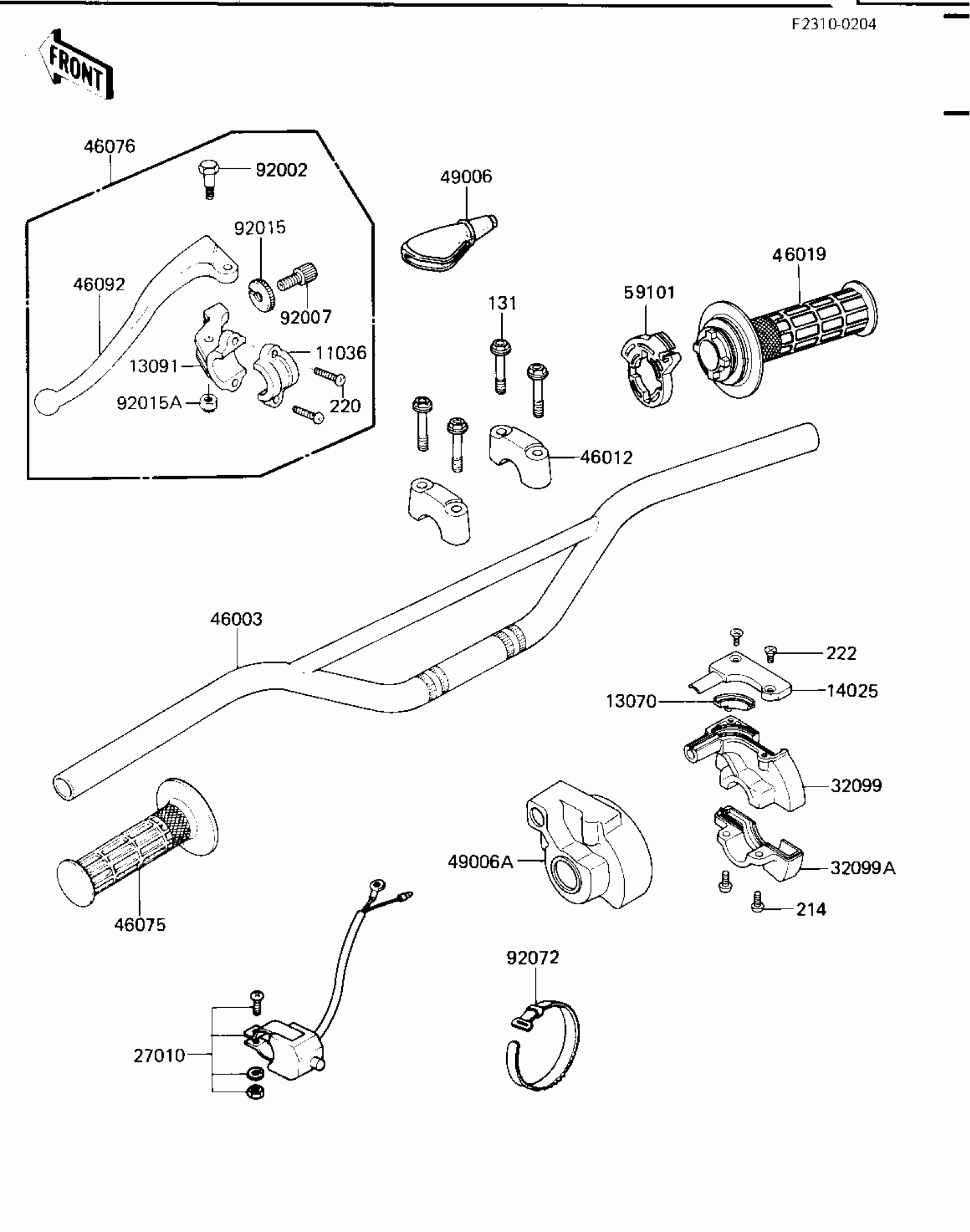

Kawasaki KX250 HANDLEBAR ('84 KX250-C2) Diagram
#
Description
Price
11036
BRACKET-A,LEVER HOLDER
11036-1297
Unavailable
13070
GUIDE,THROTTLE
13070-1074
Unavailable
13091
HOLDER,CLUTCH LEVER
13091-1131
$46.92
14025
COVER,THROTTLE CASE UPP
14025-1646
$9.36
27010
SWITCH,ENGINE STOP
27010-1161
$56.15
32099
CASE,THROTTLE UPP
32099-1036
$35.36
32099A
CASE,THROTTLE LWR
32099-1044
Unavailable
46003
HANDLE
46003-1119
Unavailable
46012
HOLDER-HANDLE,UPP
46012-008
$37.74
46019
GRIP-ASSY,THROTTLE
46019-1054
$35.69
46075
GRIP,LH
46075-1024
$25.66
46076
LEVER-ASSY-GRIP,CLUTCH
46076-1118
$45.35
46092
LEVER-GRIP,CLUTCH
46092-1110
$26.28
49006
BOOT,LEVER HOLDER
49006-1017
$18.72
49006A
BOOT,THROTTLE CASE
49006-1097
$17.98
59101
REEL,THROTTLE
59101-1110
$11.27
92002
BOLT,LEVER SET
92002-1150
$7.62
92007
SCREW,CABLE ADJUST
46055-010
$28.86
92015
NUT,CABLE ADJUST
46056-006
$8.94
92015A
NUT,LOCK,6MM
92019-008
$4.26
92072
BAND,L=123
92072-030
$5.00
131
BOLT-FLANGED
131P0835
$2.12
214
SCREW-PAN-CROS,5X18
220C0518
$3.43
220
SCREW-PAN-CROS
220C0514
$1.81
222
SCREW-CSK-RD-CROS,4X12
222E0412
$2.63
