Description

Price

11036

BRACKET-A,LEVER HOLDER

11036-1297

Unavailable

13070

GUIDE,THROTTLE

13070-1074

Unavailable

13091

HOLDER,CLUTCH LEVER

13091-1131

$46.92

14025

COVER,THROTTLE CASE UPP

14025-1646

$9.36

27010

SWITCH,ASSY,ENG STOP

27010-1018

Unavailable

32099

CASE,THROTTLE UPP

32099-1036

$35.36

32099A

CASE,THROTTLE LWR

32099-1044

Unavailable

46003

HANDLE

46003-1119

Unavailable

46012

HOLDER-HANDLE,UPP

46012-008

$37.74

46019

GRIP-ASSY,THROTTLE

46019-1027

Unavailable

46075

GRIP,LH

46075-1024

$25.66

46076

LEVER-ASSY-GRIP,CLUTCH

46076-1118

$45.35

46092

LEVER-GRIP,CLUTCH

46092-1110

$26.28

49006

BOOT,LEVER HOLDER

49006-1017

$18.72

49006A

BOOT,THROTTLE CASE

49006-1097

$17.98

92001

BOLT,HEX HEAD,6MM

92001-140

Unavailable

92007

SCREW,CABLE ADJUST

46055-010

$28.86

92015

NUT,CABLE ADJUST

46056-006

$8.94

92015A

NUT,LOCK,6MM

92019-008

$4.26

92072

BAND,L=123

92072-030

$5.00

131

BOLT-FLANGED,8X40

131P0840

$1.44

220

SCREW-PAN-CROS

220B0514

$4.04

220A

UNAVAILABLE IN PRICE BOOK

214B0516A

Unavailable

222

SCREW-CSK-RD-CROS,4X12

222E0412

$2.63

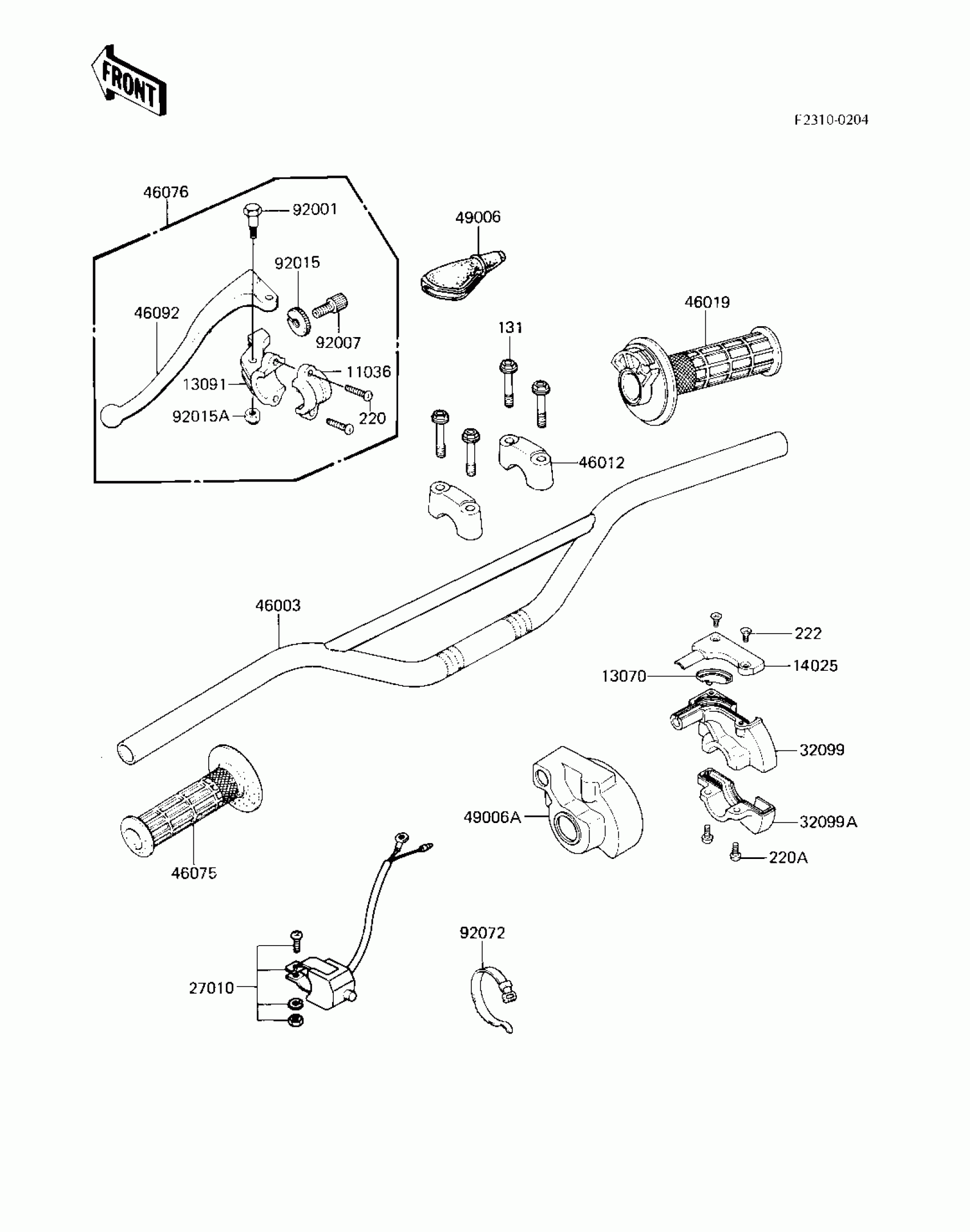

Kawasaki KX250 HANDLEBAR ('83 KX250-C1) Diagram

BRACKET-A,LEVER HOLDER

GUIDE,THROTTLE

HOLDER,CLUTCH LEVER

COVER,THROTTLE CASE UPP

SWITCH,ASSY,ENG STOP

CASE,THROTTLE UPP

CASE,THROTTLE LWR

HANDLE

HOLDER-HANDLE,UPP

GRIP-ASSY,THROTTLE

GRIP,LH

LEVER-ASSY-GRIP,CLUTCH

LEVER-GRIP,CLUTCH

BOOT,LEVER HOLDER

BOOT,THROTTLE CASE

BOLT,HEX HEAD,6MM

SCREW,CABLE ADJUST

NUT,CABLE ADJUST

NUT,LOCK,6MM

BAND,L=123

BOLT-FLANGED,8X40

SCREW-PAN-CROS

UNAVAILABLE IN PRICE BOOK

SCREW-CSK-RD-CROS,4X12
