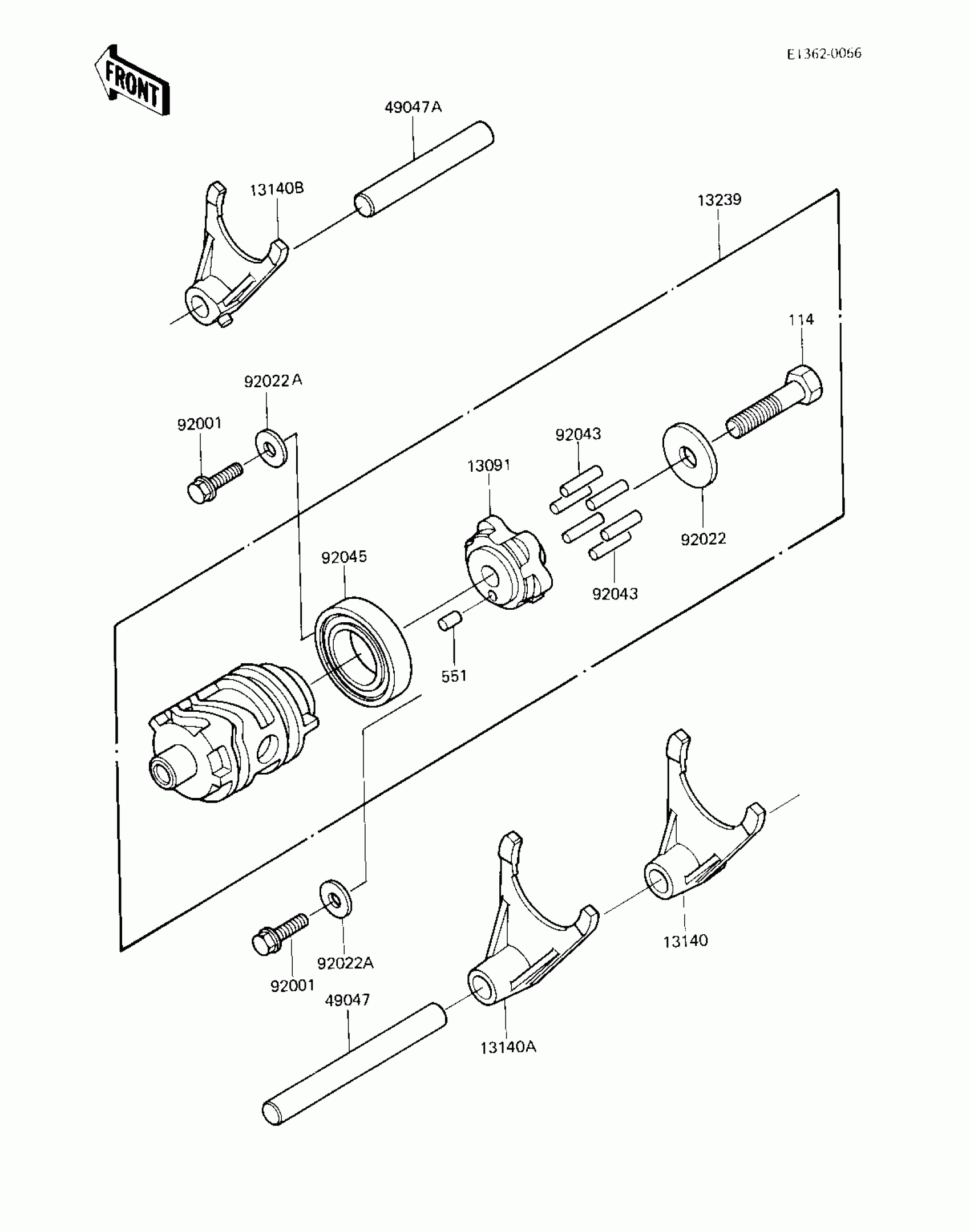

Kawasaki KX250 GEAR CHANGE DRUM & FORKS ('83 KX250-C1) Diagram

Description

Price

13091

HOLDER,CHANGE DRUM

13091-1189

Unavailable

13140

FORK-SHIFT,LOW

13140-1071

Unavailable

13140A

FORK-SHIFT,2ND&3RD

13140-1072

Unavailable

13140B

FORK-SHIFT,4TH&TOP

13140-1073

Unavailable

13239

DRUM-ASSY-CHANGE

13239-1077

Unavailable

49047

ROD-SHIFT,10X90

49047-1009

$16.18

49047A

ROD-SHIFT,10X65

49047-1011

$7.35

92001

BOLT,FLANGED,6X14

92001-1627

$1.20

92022

WASHER,8X26X2.3

92022-1564

$4.31

92022A

WASHER,6X14X2

92022-1393

Unavailable

92043

PIN,DOWEL,4X16.8

92042-029

$5.71

92045

BEARING-BALL,6905Z

92045-1058

$33.73

114

BOLT-SMALL-UPSET

115G0835

$4.54

551

PIN-DOWEL,4X8

551A0408

$0.78
