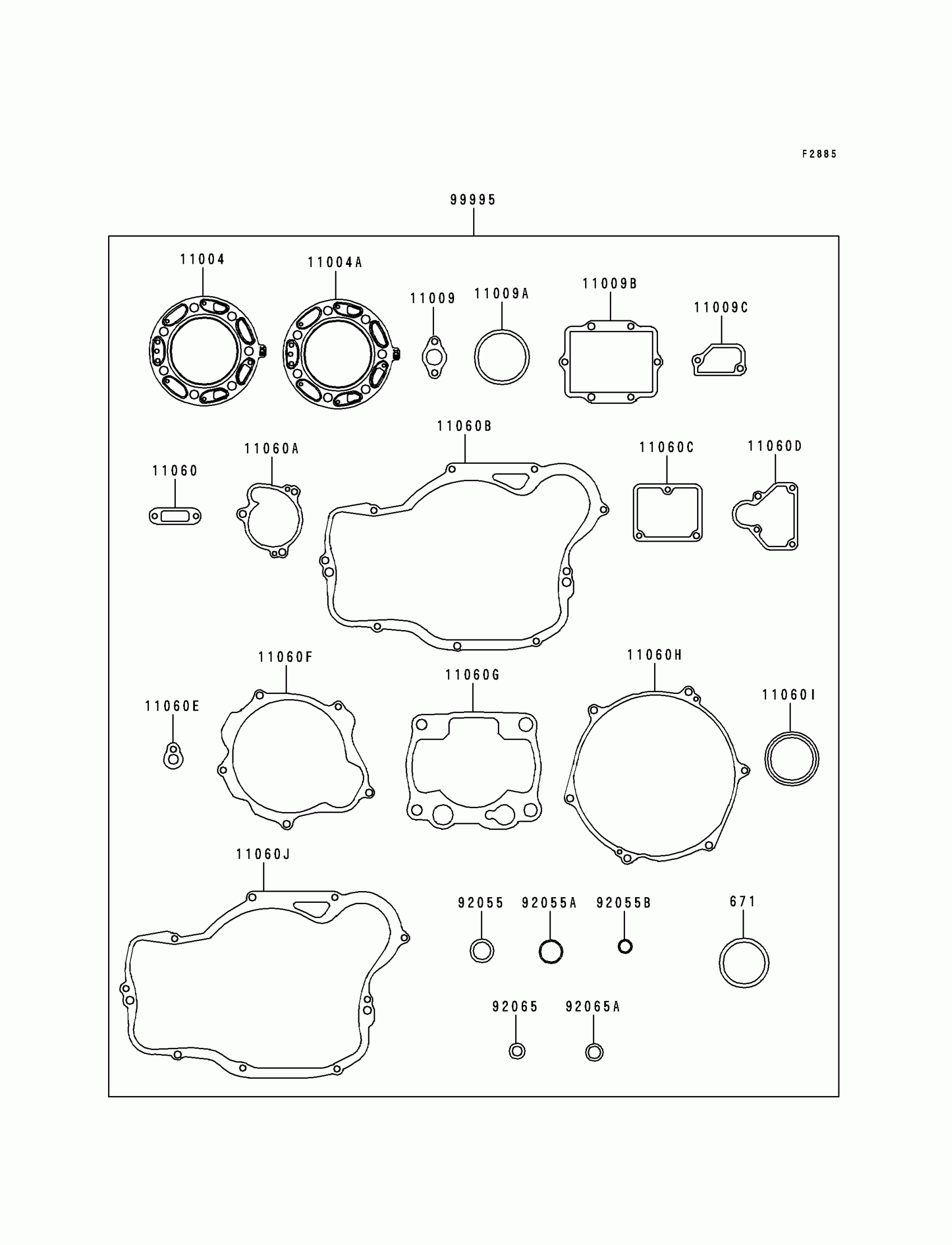

Kawasaki KX250 Gasket Kit Diagram
#
Description
Price
671
O RING,50MM
671E2550
$15.34
11004
GASKET-HEAD,T=0.26
11004-1240
Unavailable
11004A
GASKET-HEAD,T=0.46
11004-1241
Unavailable
11009
GASKET,ELBOW
11009-1935
$4.97
11009A
GASKET,EXHAUST PIPE
11009-1949
$11.49
11009B
GASKET,REED VALVE
11009-1950
$11.49
11009C
GASKET,GOVERNOR COVER
11009-1960
$5.42
11060
GASKET,ELBOW
11060-1183
$5.42
11060A
GASKET,PUMP COVER
11060-1184
$7.64
11060B
GASKET,CLUTCH COVER,IN
11060-1185
$24.56
11060C
GASKET,VALVE COVER
11060-1289
$7.51
11060D
GASKET,RESONATOR
11060-1290
$6.38
11060E
GASKET,GOVERNOR ROD
11060-1346
Unavailable
11060F
GASKET,GENERATOR COVER
11060-1352
$24.59
11060G
GASKET,CYLINDER BASE
11060-1493
$16.27
11060H
GASKET,CLUTCH COVER,OUT
11060-1494
$27.10
11060I
GASKET,EXHAUST PIPE
11060-1689
$8.53
11060J
GASKET,CLUTCH COVER,IN
11060-1749
Unavailable
92055
RING-O,17.5X1.5
92055-022
$6.22
92055A
RING-O
92055-035
$5.00
92055B
RING-O,11.5X1.5
92055-1387
$3.92
92065
GASKET,10.5X16X1
92065-058
$3.96
92065A
GASKET,12.5X18X1,DRAIN PLUG
92065-073
$4.07
99995
GASKET-SET,KX250K
99995-1399
Unavailable
