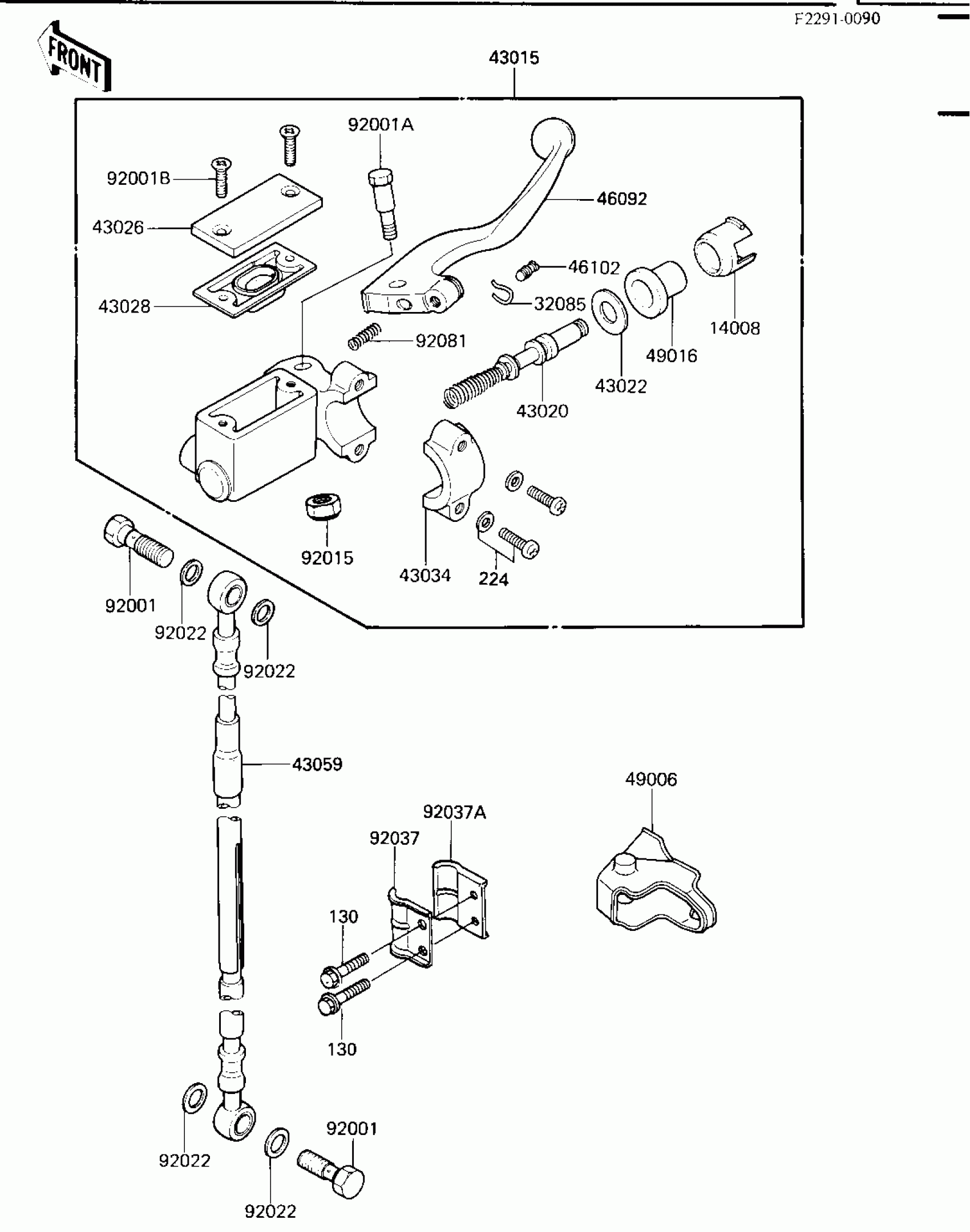

Kawasaki KX250 FRONT MASTER CYLINDER ('84 KX250-C2) Diagram

Description

Price

14008

LINER

14008-1030

Unavailable

32085

STOPPER,BRAKE LEVER ROD

32085-1087

Unavailable

43015

CYLINDER-ASSY-MASTER,FR

43015-1281

Unavailable

43020

PISTON-COMP-BRAKE

43020-1021

$66.01

43022

STOPPER-BRAKE

43022-1008

Unavailable

43026

CAP-BRAKE

43026-1019

Unavailable

43028

DIAPHRAGM

43028-1030

Unavailable

43034

HOLDER-BRAKE

43034-1012

Unavailable

43059

HOSE-BRAKE

43059-1258

$185.14

46102

ROD,BRAKE LEVER ADJUSTER

46102-1120

Unavailable

49006

BOOT,BRAKE LEVER

49006-1090

$22.24

49016

COVER-SEAL

49016-1035

$8.40

92001

BOLT,OIL,L=23

92002-1888

$5.48

92001A

BOLT,6X37.3,BLACK

92001-1512

$9.90

92001B

SCREW-CSK-CROS,4X10,BLACK

92001-1532

$4.87

92015

NUT,LOCK,6MM,BLACK

92015-1191

Unavailable

92022

WASHER,10.5X15X1.5

43067-001

$2.15

92037

CLAMP,BRAKE HOSE,OUTSIDE

92037-1362

$7.34

92037A

CLAMP,BRAKE HOSE,INSIDE

92037-1363

$7.34

92081

SPRING,BRAKE LEVER

92081-1428

Unavailable

130

BOLT,FLANGED,6X14

130G0614

$1.17

224

SCREW-PAN-WP-CROS

224B0625

Unavailable
