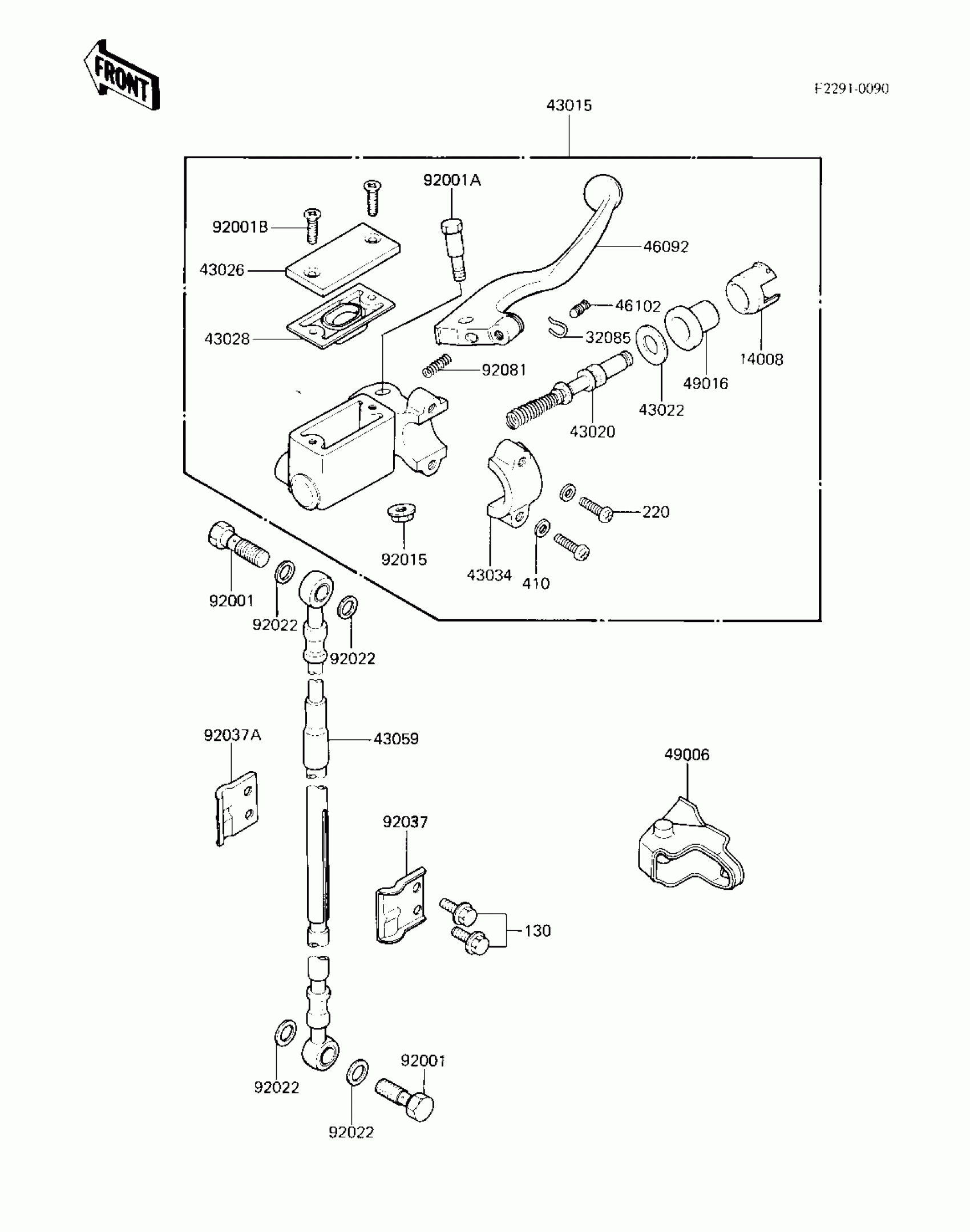

Kawasaki KX250 FRONT MASTER CYLINDER ('83 KX250-C1) Diagram

Description

Price

14008

LINER

14008-1030

Unavailable

43015

CYLINDER-ASSY-MASTER,FR

43015-1281

Unavailable

43020

PISTON-COMP-BRAKE

43020-1021

$66.01

43022

STOPPER-BRAKE

43022-1008

Unavailable

43026

CAP-BRAKE

43026-1019

Unavailable

43028

DIAPHRAGM

43028-1030

Unavailable

43034

HOLDER-BRAKE

43034-1012

Unavailable

43059

HOSE-BRAKE

43059-1155

$176.44

46092

LEVER-GRIP,BRAKE

46092-1108

Unavailable

46102

ROD,BRAKE LEVER ADJUS

46102-1042

Unavailable

49006

BOOT,BRAKE LEVER

49006-1090

$22.24

49016

COVER-SEAL

49016-1035

$8.40

92001

BOLT,OIL,L=23

92002-1888

$5.48

92001A

BOLT,6X37.3,BLACK

92001-1512

$9.90

92001B

SCREW-CSK-CROS,4X10,BLACK

92001-1532

$4.87

92015

NUT,LOCK,6MM,BLACK

92015-1191

Unavailable

92022

WASHER,10.5X15X1.5

43067-001

$2.15

92037

CLAMP,BRAKE HOSE,OUTSIDE

92037-1362

$7.34

92037A

CLAMP,BRAKE HOSE,INSIDE

92037-1363

$7.34

92081

SPRING,BRAKE LEVER

92081-1428

Unavailable

130

BOLT,FLANGED,6X14

130G0614

$1.17

220

SCREW PAN HEAD 6X25

220B0625

$2.60

410

WASHER-PLAIN-SMALL,6MM

410B0600

$1.31
