Description

Price

1

PANEL-ASY,FR BRK

41035-1002

$387.18

2

BOLT-UPSET

112G0622

$3.48

3

WASHER-PLAIN-SMALL,6MM

410B0600

$1.31

4

LEVER,FRONT BRAKE CAM

41053-1003

$61.71

5

CAM SHAFT,BRAKE

41050-1002

Unavailable

6

SHOE-BRAKE

41048-1068

$27.31

7

SPRING,BRAKE SHOE

42020-004

$8.51

8

DRUM-ASSY,FR BRK,BLK

41034-1006-21

$387.06

9

RING-SNAP,42MM

92033-1041

$6.16

10

BEARING,FRONT DRUM

92045-033

Unavailable

11

COLLAR,FRONT BRAKE

92027-1034

$28.77

12

COLLAR,FRONT AXLE

92027-1035

Unavailable

13

COLLAR,FRONT AXLE

92027-1178

Unavailable

14

AXLE,FRONT

41068-1006

$45.18

15

BOLT,SOCKET,10X45

92001-1202

Unavailable

16

O RING,15MM

670B2015

$1.42

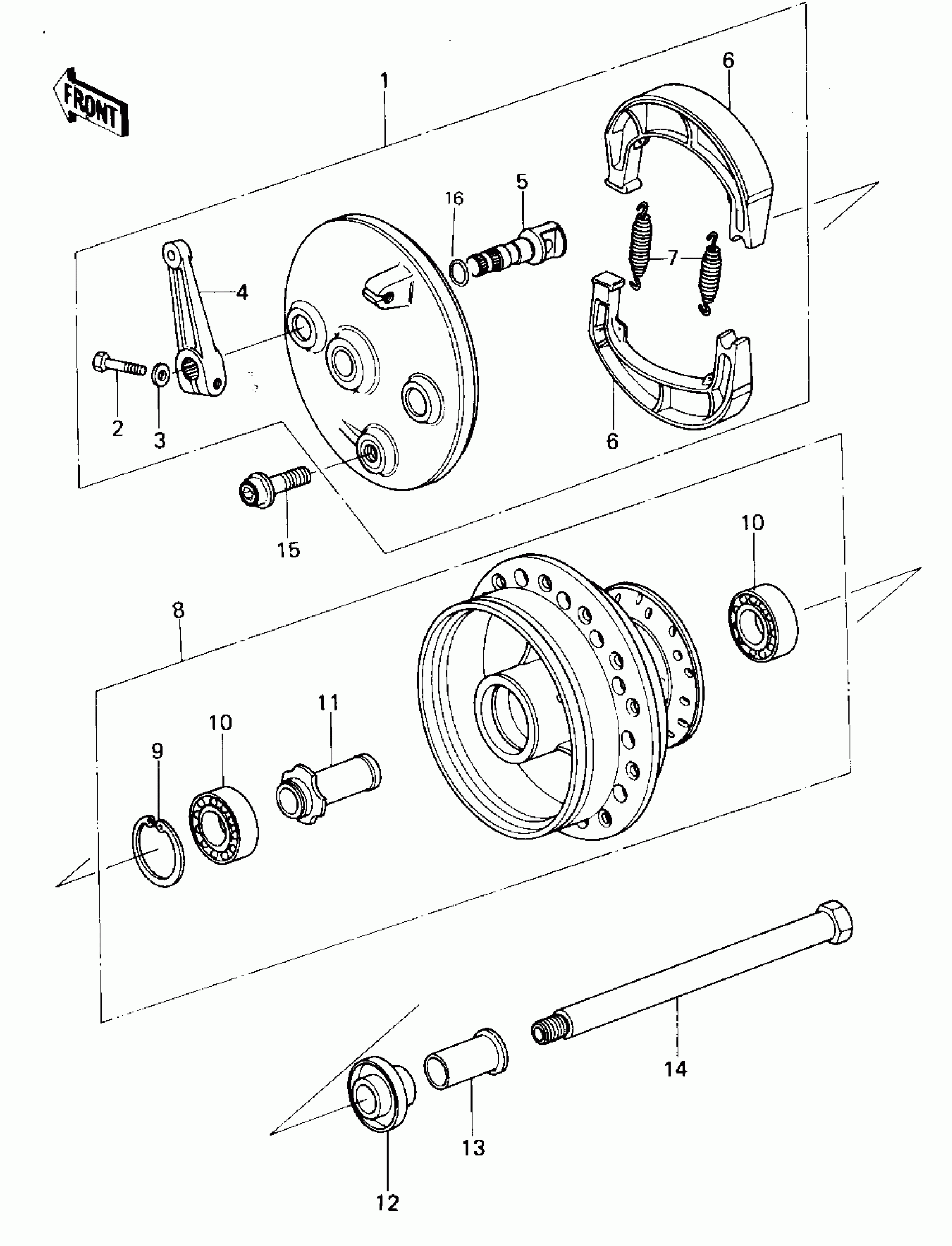

Kawasaki KX250 FRONT HUB/BRAKE Diagram

PANEL-ASY,FR BRK

BOLT-UPSET

WASHER-PLAIN-SMALL,6MM

LEVER,FRONT BRAKE CAM

CAM SHAFT,BRAKE

SHOE-BRAKE

SPRING,BRAKE SHOE

DRUM-ASSY,FR BRK,BLK

RING-SNAP,42MM

BEARING,FRONT DRUM

COLLAR,FRONT BRAKE

COLLAR,FRONT AXLE

COLLAR,FRONT AXLE

AXLE,FRONT

BOLT,SOCKET,10X45

O RING,15MM
