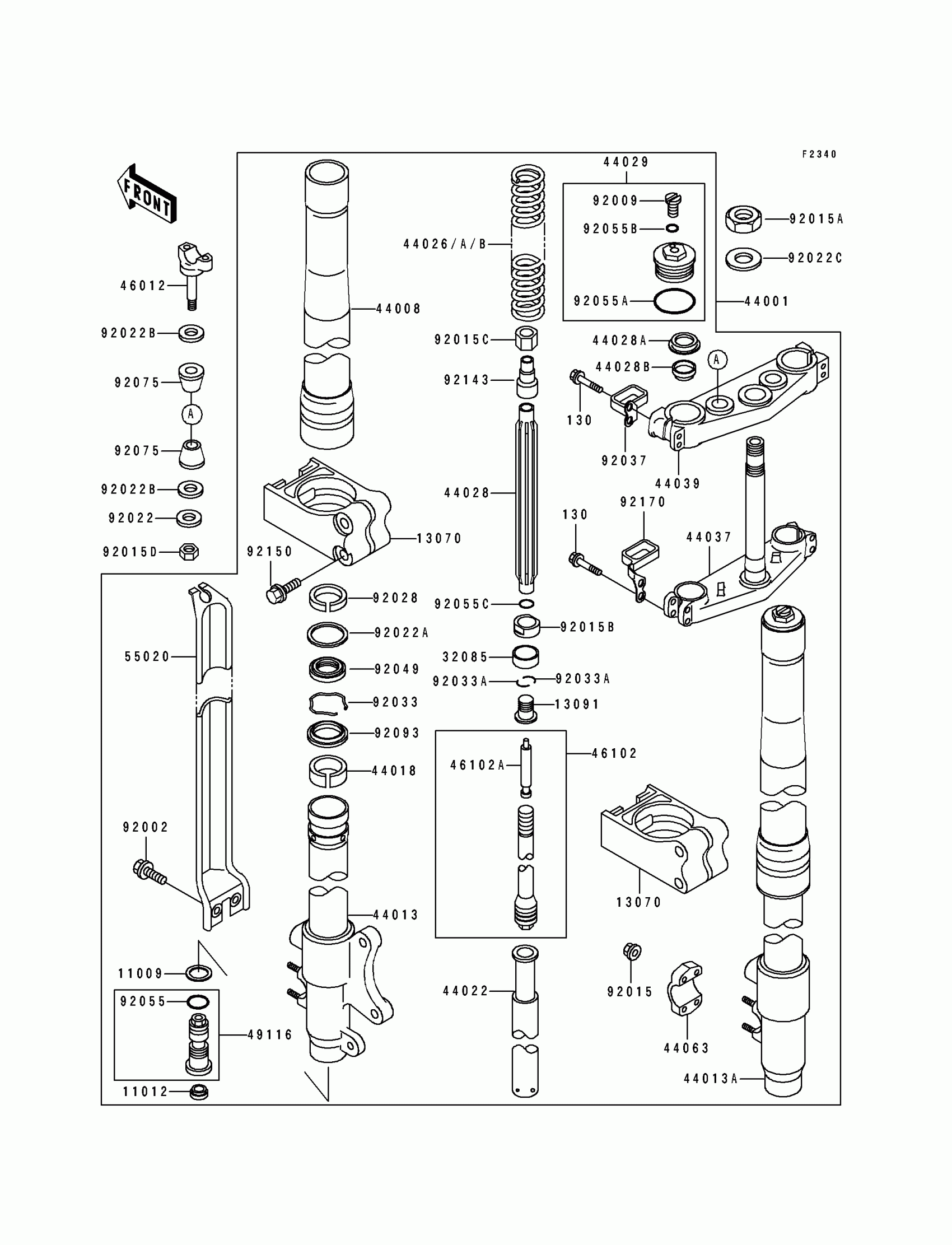

Kawasaki KX250 Front Fork(KX250-H1) Diagram
#
11009
GASKET
11009-1791
Unavailable
11012
CAP
11012-1692
$6.16
13070
GUIDE,PROTECTOR
13070-1204
Unavailable
13091
HOLDER
13091-1651
$28.70
32085
STOPPER
32085-1323
$20.04
44001
FORK-FRONT
44001-1766
$1,829.55
44008
PIPE-FORK OUTER
44008-1006
$617.46
44013
PIPE-FORK INNER,LH
44013-1307
$582.42
44013A
PIPE-FORK INNER,RH
44013-1308
$582.42
44018
PISTON-FORK
44018-1054
$47.03
44022
CYLINDER-FORK
44022-1248
$163.53
44026
SPRING-FRONT FORK,K=0.38
44026-1443
$51.65
44026A
SPRING-FRONT FORK,K=0.365
44026-1452
$58.82
44026B
SPRING-FRONT FORK,K=0.39
44026-1454
$98.13
44028
GUIDE-FORK SPRING
44028-1069
$86.67
44028A
GUIDE-FORK SPRING
44028-1070
$7.33
44028B
GUIDE-FORK SPRING
44028-1071
$10.19
44029
SEAT-FORK SPRING
44029-1141
$115.93
44037
HOLDER-FORK UNDER
44037-1263
$661.36
44039
HOLDER-FORK UPPER
44039-1190
Unavailable
44063
HOLDER-FRONT AXLE
44063-1056
$55.31
46012
HOLDER-HANDLE,LWR
46012-1192
Unavailable
46102
ROD,FORK
46102-1290
$434.18
46102A
ROD,FORK
46102-1303
Unavailable
49116
VALVE-ASSY
49116-1088
$122.97
55020
GUARD,FORK
55020-1384
Unavailable
92002
BOLT,6X14
92002-1460
$5.07
92009
SCREW
92009-1568
$7.21
92015
NUT,FLANGED,6MM
92015-1078
Unavailable
92015A
NUT,STEERING STEM,22MM
92015-1653
$16.69
92015B
NUT
92015-1805
$25.20
92015C
NUT
92015-1806
Unavailable
92015D
NUT,LOCK,10MM
92019-021
$6.11
92022
WASHER,10.2X28X2
92022-1088
$4.69
92022A
WASHER,FORK OUTER TUBE
92022-1298
$8.58
92022B
WASHER
92022-1737
$5.52
92022C
WASHER,STEERING STEM
92022-1873
$7.45
92028
BUSHING
92028-1566
$30.47
92033
RING-SNAP
92033-1036
$6.51
92033A
RING-SNAP
92033-1271
$6.87
92037
CLAMP
92037-1628
$19.52
92049
SEAL-OIL
92049-1338
$19.34
92055
RING-O,FORK
92055-1062
$4.69
92055A
RING-O
92055-1115
$10.14
92055B
RING-O,2.8X6.6X1.9
92055-1441
$4.33
92055C
RING-O
92055-1442
$9.21
92075
DAMPER
92075-1776
$8.76
92093
SEAL,FORK OUTER TUBE
92093-1305
$33.88
92143
COLLAR,FORK
92143-1374
Unavailable
92150
BOLT,5X35
92150-1270
$5.84
92170
CLAMP
92170-1088
$27.70
130
BOLT-FLANGED,8X40
130G0840
$1.92
